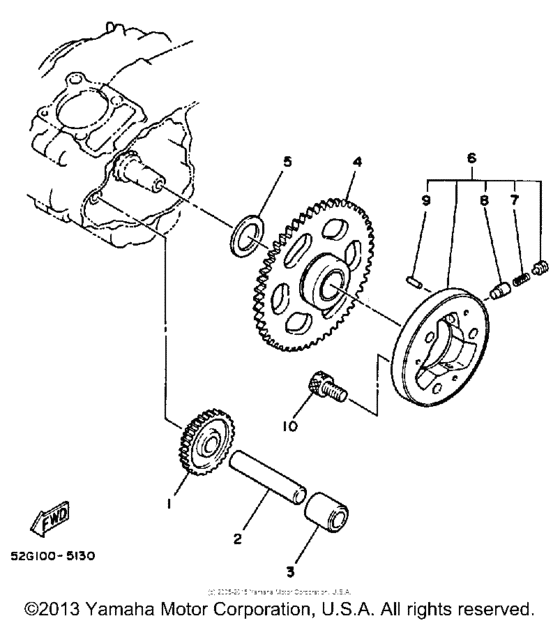

Starter clutch Diagram Yamaha TRI-MOTO Tri-Moto 200
- Model code
- YTM200ERN
- Engine Capacity
- 200
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2HT-15512-00-00 Gear, Idler 1 (41T/10T)41T/10T |
2HT-15512-00-00 |
from US $28.78 |
||
|
2
|
2
24W-15521-00-00
Shaft 1
|
24W-15521-00-00 |
— | ||
|
3
|
3
90387-125H3-00
Collar
|
90387-125H3-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
5H0-15517-00-00 Gear, Idler 2 (56T)56T |
5H0-15517-00-00 |
from US $59.18 |
||
|
5
|
5
4A0-17216-00-F6
New Genuine Part
IN PRICE BOOK 9020 |
4A0-17216-00-F6 |
— | ||
|
6
|
6
4H7-15580-10-00 Starter Clutch Outer Assy |
4H7-15580-10-00 |
from US $96.54 |
||
|
7
|
7
90501-04596-00 Spring, Compression |
90501-04596-00 |
from US $1.84 |
||
|
8
|
8
341-15583-05-00 Cap, Starter Clutch Spring |
341-15583-05-00 |
from US $11.33 |
||
| replacement | |||||
|
8
|
8
1J7-15583-01-00 Cap, Starter Clutch Spring |
1J7-15583-01-00 |
from US $11.33 |
||
|
9
|
9
93615-12088-00 Pin, Dowel |
93615-12088-00 |
from US $6.94 |
||
|
10
|
10
91316-08016-00 Bolt, Socket Head |
91316-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
913-17080-16-00 Bolt |
913-17080-16-00 |
from US $1.42 |
||
