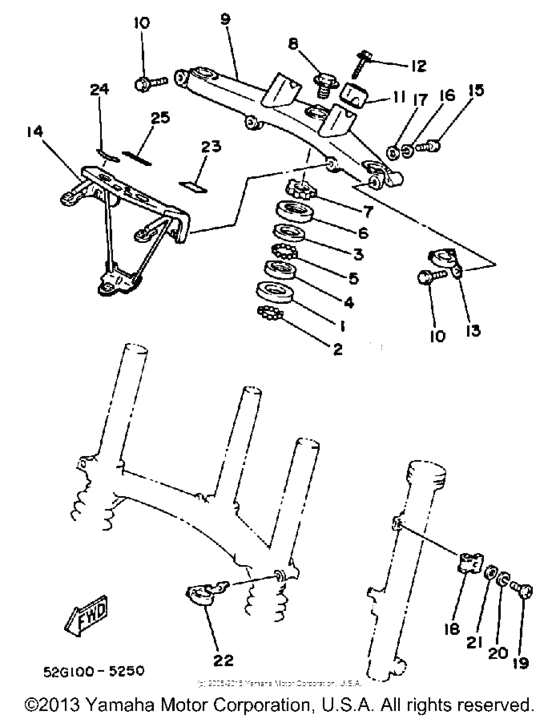

Steering Diagram Yamaha TRI-MOTO Tri-Moto 200
- Model code
- YTM200ERN
- Engine Capacity
- 200
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
2
|
2
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
2
|
2
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
3
|
3
183-23411-00-00 Race, Ball 1 |
183-23411-00-00 |
from US $6.23 |
||
| replacement | |||||
|
3
|
3
4FP-F3411-20-00 Race, Ball 1 |
4FP-F3411-20-00 |
from US $6.23 |
||
|
4
|
4
183-23412-00-00 Race, Ball 2 |
183-23412-00-00 |
from US $6.09 |
||
| replacements | |||||
|
4
|
4
4FP-F3412-10-00 Race, Ball 2 |
4FP-F3412-10-00 |
from US $6.09 |
||
|
4
|
4
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
4
|
4
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
5
|
5
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
5
|
5
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
6
|
6
136-23415-00-00 Cover, Ball Race 1 |
136-23415-00-00 |
from US $3.26 |
||
|
7
|
7
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
7
|
7
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.39 |
||
|
7
|
7
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
8
|
8
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
9
|
9
24W-23435-00-00
Crown, Handle
|
24W-23435-00-00 |
— | ||
|
10
|
10
90105-08091-00 Bolt, Flange |
90105-08091-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
958-14080-40-00 Bolt, Flange |
958-14080-40-00 |
from US $1.56 |
||
|
11
|
11
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-01E6-23441-0 |
1E6-23441-00-00 |
from US $20.97 |
||
|
12
|
12
95811-08035-00 Bolt, Flange (95821-08035-00) |
95811-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.07 |
||
|
13
|
13
21V-23317-00-00
Guide, Cable
|
21V-23317-00-00 |
— | ||
| replacement | |||||
|
13
|
13
15A-23389-00-00
Guide, Cable
|
15A-23389-00-00 |
— | ||
|
14
|
14
52G-23174-00-00
Stay, Headlight
|
52G-23174-00-00 |
— | ||
|
15
|
15
97001-08025-00 Bolt (1Nv) |
97001-08025-00 |
from US $1.21 |
||
| replacement | |||||
|
15
|
15
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
|
16
|
16
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
17
|
17
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
18
|
18
3Y1-23319-00-00 Wire, Holder 2 |
3Y1-23319-00-00 |
from US $5.38 |
||
|
19
|
19
985-06060-16-00
Screw Pan Head
|
985-06060-16-00 |
— | ||
| replacement | |||||
|
19
|
19
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
20
|
20
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
21
|
21
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
21
|
21
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
22
|
22
21V-23389-00-00
Guide, Cable
|
21V-23389-00-00 |
— | ||
|
23
|
23
24W-26139-01-00
Label, Choke
|
24W-26139-01-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
24W-83585-10-00
Label
|
24W-83585-10-00 |
— | ||
|
25
|
25
52H-83585-00-00
Label
|
52H-83585-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
