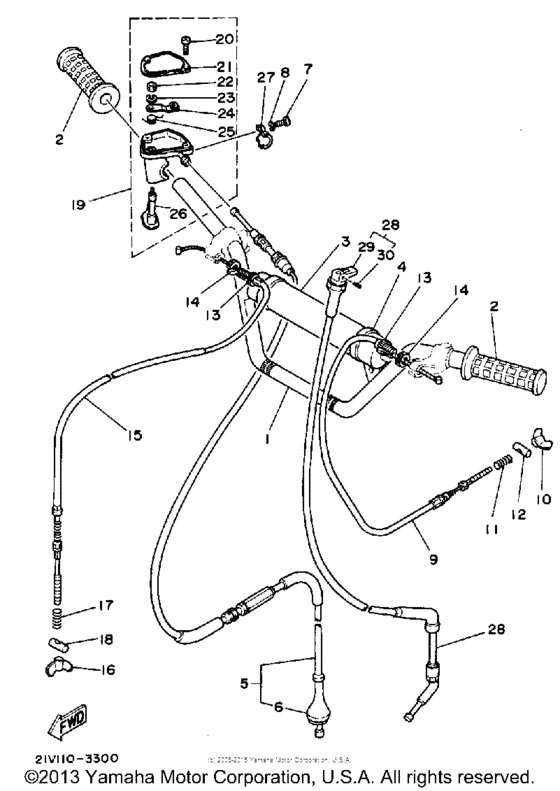

Handlebar - cable Diagram Yamaha TRI-MOTO Tri-Moto 200
- Model code
- YTM200L
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29U-26111-01-00
Handlebar
|
29U-26111-01-00 |
— | ||
|
2
|
2
3GB-26241-00-00 Grip |
3GB-26241-00-00 |
from US $14.31 |
||
|
3
|
3
21V-26124-00-00
Protector, Hdlbr
|
21V-26124-00-00 |
— | ||
|
4
|
4
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
5
|
5
21V-26311-00-00 Cable, Throttle 1 |
21V-26311-00-00 |
US $61.74 |
||
|
6
|
6
21V-26329-00-00
Cap, Rubber
|
21V-26329-00-00 |
— | ||
|
7
|
7
985-06050-18-00
Screw, Pan Head
|
985-06050-18-00 |
— | ||
| replacement | |||||
|
7
|
7
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.34 |
||
|
8
|
8
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
9
|
9
21V-26341-00-00 Cable, Brake |
21V-26341-00-00 |
US $68.02 |
||
| replacement | |||||
|
9
|
9
24W-26341-00-00 Cable, Brake |
24W-26341-00-00 |
US $65.97 |
||
|
10
|
10
20E-26343-00-00 Nut, Adjusting |
20E-26343-00-00 |
from US $11.33 |
||
|
11
|
11
90501-10782-00 Spring, Compression |
90501-10782-00 |
from US $1.84 |
||
|
12
|
12
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
13
|
13
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
| replacement | |||||
|
13
|
13
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
14
|
14
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
14
|
14
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
15
|
15
21V-26373-00-00
Cable, Brake 4
YTM200L |
21V-26373-00-00 |
— | ||
|
16
|
16
90179-06411-00 Nut |
90179-06411-00 |
from US $1.34 |
||
|
17
|
17
90501-10782-00 Spring, Compression |
90501-10782-00 |
from US $1.84 |
||
|
18
|
18
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
19
|
19
21V-26250-01-00
Throttle Lever Assembly
|
21V-26250-01-00 |
— | ||
|
20
|
20
985-06050-10-00
Screw, Pan Head
|
985-06050-10-00 |
— | ||
| replacement | |||||
|
20
|
20
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.21 |
||
|
21
|
21
21V-2628F-00-00
Cap, Gear
|
21V-2628F-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
23
|
23
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
24
|
24
21V-2625H-00-00
Arm, Throttle
|
21V-2625H-00-00 |
— | ||
|
25
|
25
90508-10597-00
Spring, Torsion
|
90508-10597-00 |
— | ||
|
26
|
26
21V-2625G-01-00
Lever, Throttle
|
21V-2625G-01-00 |
— | ||
|
27
|
27
38V-82913-00-00 Holder, Lever Lower 1YTM200L |
38V-82913-00-00 |
from US $3.98 |
||
|
28
|
28
21V-26331-02-00 Cable, Starter 1YTM200L |
21V-26331-02-00 |
from US $35.55 |
||
|
29
|
29
21V-26374-00-00 End, Cable 3YTM200L |
21V-26374-00-00 |
from US $12.89 |
||
|
30
|
30
916-09300-10-00
Pin, Spring
|
916-09300-10-00 |
— | ||
| replacement | |||||
|
30
|
30
91690-30010-00 Pin, Spring |
91690-30010-00 |
from US $1.56 |
||
