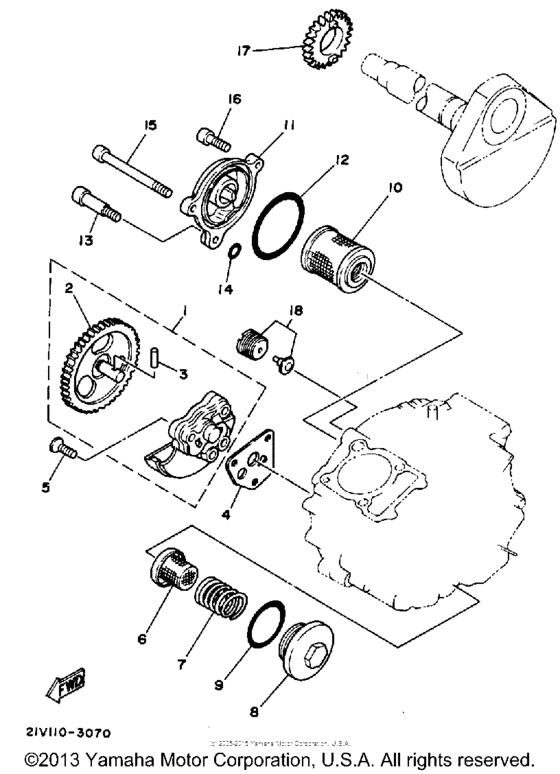

Oil pump Diagram Yamaha TRI-MOTO Tri-Moto 200
- Model code
- YTM200L
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21V-13300-00-00
Oil Pump Assembly
|
21V-13300-00-00 |
— | ||
|
2
|
2
21V-13326-00-00
Gear, Pump Driven 2 (41T)
41T |
21V-13326-00-00 |
— | ||
|
3
|
3
93603-12030-00 Pin, Dowel |
93603-12030-00 |
from US $1.66 |
||
|
4
|
4
4BE-13329-00-00 Gasket, Pump Cover |
4BE-13329-00-00 |
from US $2.69 |
||
| replacement | |||||
|
4
|
4
3GD-13329-00-00 Gasket, Pump Cover |
3GD-13329-00-00 |
from US $1.34 |
||
|
5
|
5
98701-06030-00 Screw Flat Head |
98701-06030-00 |
from US $1.56 |
||
| replacement | |||||
|
5
|
5
98707-06030-00 Screw, Flat Head |
98707-06030-00 |
from US $1.56 |
||
|
6
|
6
51Y-13411-00-00 Strainer, Oil |
51Y-13411-00-00 |
from US $6.96 |
||
| replacement | |||||
|
6
|
6
5YP-E3411-00-00 Strainer, Oil |
5YP-E3411-00-00 |
from US $2.55 |
||
|
7
|
7
90501-18576-00 Spring, Compression |
90501-18576-00 |
from US $1.34 |
||
|
8
|
8
5H0-15351-00-00 Plug, Drain |
5H0-15351-00-00 |
from US $9.26 |
||
|
9
|
9
932-10353-89-00
O-Ring
|
932-10353-89-00 |
— | ||
| replacement | |||||
|
9
|
9
93210-347A1-00 O-Ring |
93210-347A1-00 |
from US $1.34 |
||
|
10
|
10
5H0-13440-00-00
Element Assy, Oil Cleaner
|
5H0-13440-00-00 |
— | ||
| replacement | |||||
|
10
|
10
5H0-13440-09-00 Element Assy, Oil Cleaner |
5H0-13440-09-00 |
from US $12.33 |
||
|
11
|
11
15A-13447-00-00 Cover, Oil Element |
15A-13447-00-00 |
from US $23.54 |
||
| replacement | |||||
|
11
|
11
15A-13447-01-00 Cover, Oil Element |
15A-13447-01-00 |
from US $29.89 |
||
|
12
|
12
932-10541-75-00 O-Ring |
932-10541-75-00 |
from US $3.64 |
||
|
13
|
13
901-09064-19-00 Bolt (583 Oil Drain) |
901-09064-19-00 |
from US $4.68 |
||
|
14
|
14
932-10071-35-00 O-Ring (Small) |
932-10071-35-00 |
from US $1.84 |
||
|
15
|
15
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
15
|
15
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
16
|
16
91316-06115-00 Bolt |
91316-06115-00 |
from US $9.63 |
||
| replacement | |||||
|
16
|
16
91317-06115-00 Bolt,socket |
91317-06115-00 |
from US $9.63 |
||
|
17
|
17
21V-13324-00-00
Gear, Pump Drive (22T)
|
21V-13324-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
21V-13409-01-00
Check Valve Assembly
|
21V-13409-01-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
