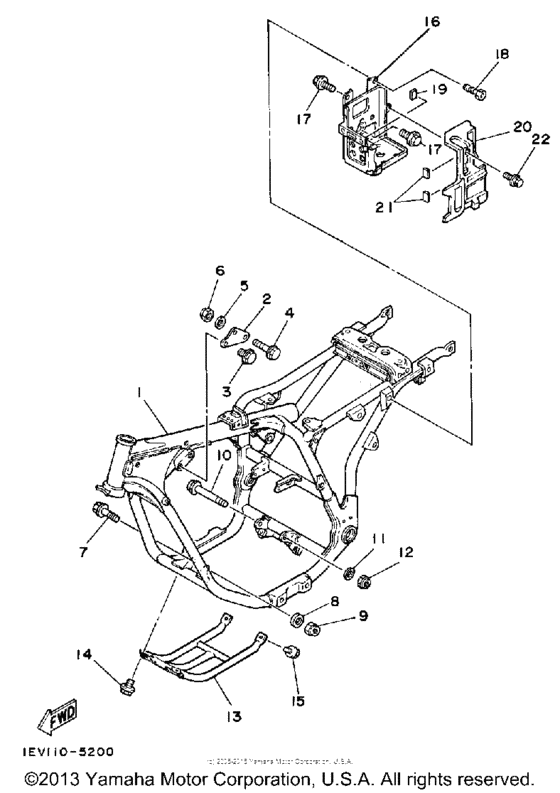

Frame Diagram Yamaha TRI-MOTO Tri-Moto 225
- Model code
- YTM225DRN
- Engine Capacity
- 223
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1EV-21110-00-33
Frame
|
1EV-21110-00-33 |
— | ||
|
2
|
2
29U-21315-00-00
Stay, Engine 2
|
29U-21315-00-00 |
— | ||
|
3
|
3
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
3
|
3
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
4
|
4
95811-08050-00 Bolt, Flange (26H) |
95811-08050-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
95817-08050-00 Bolt, Flange |
95817-08050-00 |
from US $1.56 |
||
|
5
|
5
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
6
|
6
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
6
|
6
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
7
|
7
95811-08065-00 Bolt, Flange |
95811-08065-00 |
from US $3.02 |
||
| replacements | |||||
|
7
|
7
95814-08065-00 Bolt, Flange |
95814-08065-00 |
from US $3.54 |
||
|
7
|
7
90105-08721-00 Bolt, Washer Based(4Jg) |
90105-08721-00 |
from US $4.79 |
||
|
8
|
8
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
9
|
9
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
9
|
9
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
10
|
10
95811-08105-00 Bolt, Flange |
95811-08105-00 |
from US $7.15 |
||
| replacement | |||||
|
10
|
10
95817-08105-00 Bolt, Flange |
95817-08105-00 |
from US $7.79 |
||
|
11
|
11
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
12
|
12
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
12
|
12
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
13
|
13
29U-21471-00-33
Protector, Engine
|
29U-21471-00-33 |
— | ||
|
14
|
14
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
15
|
15
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
15
|
15
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
15
|
15
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
16
|
16
1EV-21170-00-00
Box
|
1EV-21170-00-00 |
— | ||
|
17
|
17
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
17
|
17
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
17
|
17
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
18
|
18
90153-06034-00 Screw, Hexagon |
90153-06034-00 |
from US $1.70 |
||
|
19
|
19
3FC-2139R-00-00 Cover 2 |
3FC-2139R-00-00 |
from US $13.95 |
||
|
20
|
20
24W-21245-00-00
Box
|
24W-21245-00-00 |
— | ||
|
21
|
21
3FC-2139R-00-00 Cover 2 |
3FC-2139R-00-00 |
from US $13.95 |
||
|
22
|
22
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
22
|
22
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
22
|
22
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
