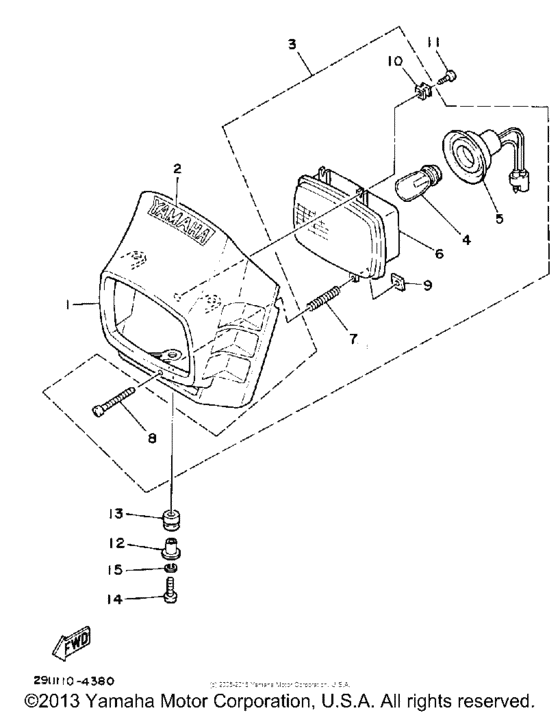

Headlight Diagram Yamaha TRI-MOTO Tri-Moto 225
- Model code
- YTM225DRN
- Engine Capacity
- 223
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29U-84311-20-00
Body, Headlight
UR SKY BLUE |
29U-84311-20-00 |
— | ||
|
1
|
1
29U-84311-30-00
Body, Headlight
UR YAMAHA BLK |
29U-84311-30-00 |
— | ||
|
1
|
1
29U-84311-00-00
Body, Headlight
UR COMP. YEL |
29U-84311-00-00 |
— | ||
|
2
|
2
4U3-23395-00-00 Emblem, YamahaUR FOR CPY |
4U3-23395-00-00 |
from US $7.78 |
||
| replacement | |||||
|
2
|
2
992-44001-00-00 Emblem, YamahaUR FOR CPY |
992-44001-00-00 |
from US $8.22 |
||
|
2
|
2
24W-23395-30-00 Emblem, Yamaha |
24W-23395-30-00 |
from US $8.08 |
||
| replacements | |||||
|
2
|
2
99241-00080-00 Emblem, Yamaha |
99241-00080-00 |
from US $8.08 |
||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
20X-84331-00-00 Screw, Rim AdjustingIN PRICE BOOK N/A |
20X-84331-00-00 |
from US $4.43 |
||
| replacement | |||||
|
3
|
3
901-57040-01-00 Screw, Rim AdjustingIN PRICE BOOK N/A |
901-57040-01-00 |
from US $6.23 |
||
|
4
|
4
21V-84314-00-00
Bulb (21V-84314-00-00)-45/45W)
21V-84314-00-00-45/45W |
21V-84314-00-00 |
— | ||
| replacement | |||||
|
4
|
4
21V-84314-00-XX
Bulb (21V-84314-00-00)-45/45W)
21V-84314-00-00-45/45W |
21V-84314-00-XX |
— | ||
|
5
|
5
21V-84312-00-00
Socket
|
21V-84312-00-00 |
— | ||
|
6
|
6
21V-84320-00-00
Lens Assembly
|
21V-84320-00-00 |
— | ||
|
7
|
7
21V-84335-00-00 Spring, Screw |
21V-84335-00-00 |
US $5.94 |
||
| replacement | |||||
|
7
|
7
3AA-84332-00-00 Spring, Screw |
3AA-84332-00-00 |
US $5.71 |
||
|
8
|
8
1M1-84524-60-00
Screw, Lens Fitting
|
1M1-84524-60-00 |
— | ||
| replacements | |||||
|
8
|
8
90157-04111-00 Screw, Pan Head(M80)Screw, pan head |
90157-04111-00 |
from US $2.27 |
||
|
8
|
8
5BF-8433E-00-00 Screw, Adjusting |
5BF-8433E-00-00 |
from US $2.13 |
||
|
9
|
9
21V-84334-00-00
Nut, Adjusting
|
21V-84334-00-00 |
— | ||
|
10
|
10
21V-84316-00-00
Nut, Body Fitting
|
21V-84316-00-00 |
— | ||
|
11
|
11
97702-40614-00 Screw, Tapping |
97702-40614-00 |
from US $1.21 |
||
| replacement | |||||
|
11
|
11
97707-40614-00 Screw, Pan Tap.2 Slit |
97707-40614-00 |
from US $1.21 |
||
|
12
|
12
90387-060G8-00 Collar (10V) |
90387-060G8-00 |
from US $4.96 |
||
| replacement | |||||
|
12
|
12
90387-06166-00 Collar |
90387-06166-00 |
from US $4.96 |
||
|
13
|
13
90480-14412-00 Grommet |
90480-14412-00 |
from US $1.90 |
||
|
14
|
14
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
14
|
14
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
