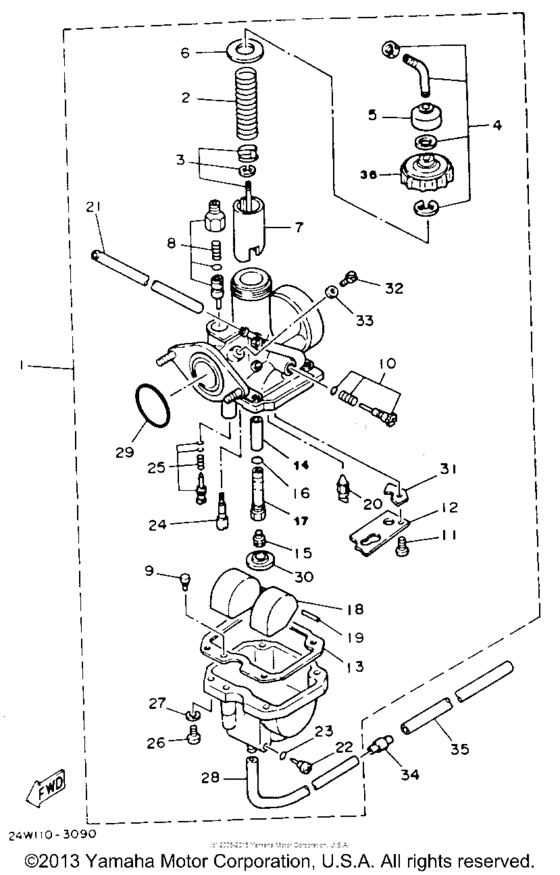

Carburetor Diagram Yamaha TRI-MOTO Tri-Moto 225
- Model code
- YTM225DXK
- Engine Capacity
- 223
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29U-14101-02-00 Carburetor Assy 1 |
29U-14101-02-00 |
US $545.74 |
||
| replacement | |||||
|
1
|
1
29U-14101-03-00
AIR CLNR CASE ASSY
|
29U-14101-03-00 |
— | ||
|
2
|
2
21V-14131-00-00 Spring, Throttle Valve |
21V-14131-00-00 |
US $12.31 |
||
|
3
|
3
29U-1490J-00-00 Needle Set |
29U-1490J-00-00 |
US $21.37 |
||
|
4
|
4
29U-14106-00-00 Cable Adjust Screw Set |
29U-14106-00-00 |
US $32.62 |
||
|
5
|
5
1M1-14169-00-00 Cap |
1M1-14169-00-00 |
from US $7.97 |
||
| replacement | |||||
|
5
|
5
3X3-14169-00-00 Cap |
3X3-14169-00-00 |
from US $13.60 |
||
|
6
|
6
4U5-14126-00-00 Gasket |
4U5-14126-00-00 |
from US $12.47 |
||
|
7
|
7
29U-14112-35-00
Valve, Throttle 1
|
29U-14112-35-00 |
— | ||
|
8
|
8
21V-1410A-00-00 Starter Plunger Set |
21V-1410A-00-00 |
from US $64.66 |
||
|
9
|
9
18M-14144-13-00
Jet, Starter
|
18M-14144-13-00 |
— | ||
|
9
|
9
18M-14144-16-00
Jet, Starter (#80)
|
18M-14144-16-00 |
— | ||
|
10
|
10
18G-14103-00-00 Throttle Screw Set |
18G-14103-00-00 |
from US $14.31 |
||
|
11
|
11
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
12
|
12
21V-14146-00-00 Plate |
21V-14146-00-00 |
from US $6.09 |
||
|
13
|
13
24W-14184-00-00 Gasket, Float Chamber |
24W-14184-00-00 |
from US $4.96 |
||
|
14
|
14
21V-14141-28-00 Nozzle, Main |
21V-14141-28-00 |
US $46.94 |
||
|
15
|
15
620-1423A-73-00 Jet, Main (112.5)112.5 For Wet Element |
620-1423A-73-00 |
from US $17.19 |
||
|
16
|
16
583-14561-00-00 O-Ring |
583-14561-00-00 |
from US $2.66 |
||
|
17
|
17
21V-14148-00-00 Jet, Holder |
21V-14148-00-00 |
from US $17.89 |
||
|
18
|
18
21V-14185-00-00 Float |
21V-14185-00-00 |
from US $34.85 |
||
|
19
|
19
127-14186-00-00 Pin, Float |
127-14186-00-00 |
from US $2.98 |
||
|
20
|
20
21V-14190-18-00 Needle Valve Assy |
21V-14190-18-00 |
from US $39.02 |
||
| replacement | |||||
|
20
|
20
5HH-14190-18-00 Needle Valve Assy |
5HH-14190-18-00 |
from US $35.38 |
||
|
21
|
21
90445-084A7-00 Hose (L540) |
90445-084A7-00 |
from US $7.79 |
||
|
21
|
21
3Y1-14197-00-00
Pipe
|
3Y1-14197-00-00 |
— | ||
| replacement | |||||
|
21
|
21
26H-14197-01-00 Pipe |
26H-14197-01-00 |
from US $8.28 |
||
|
22
|
22
2L1-14191-00-00 Plug, Drain |
2L1-14191-00-00 |
from US $16.72 |
||
|
23
|
23
214-14147-00-00 O-Ring |
214-14147-00-00 |
from US $10.66 |
||
|
24
|
24
3H1-14142-20-00 Jet, Pilot #20#20 |
3H1-14142-20-00 |
from US $15.48 |
||
|
25
|
25
21V-14105-00-00 Pilot Screw Set |
21V-14105-00-00 |
from US $18.23 |
||
|
26
|
26
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
26
|
26
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
27
|
27
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
27
|
27
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
28
|
28
90445-08619-00 Hose (L1500)Hose |
90445-08619-00 |
from US $10.91 |
||
| replacement | |||||
|
28
|
28
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.28 |
||
|
29
|
29
29U-14147-00-00 O-Ring |
29U-14147-00-00 |
from US $14.45 |
||
|
30
|
30
5V7-14153-00-00 Washer, Main Jet |
5V7-14153-00-00 |
from US $9.92 |
||
|
31
|
31
24W-14146-00-00
Plate
|
24W-14146-00-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
341-14991-00-00 Plug, Screw |
341-14991-00-00 |
from US $6.58 |
||
|
33
|
33
584-14956-00-00 Washer, Plug Screw |
584-14956-00-00 |
US $6.31 |
||
|
34
|
34
24W-14193-00-00 Pipe |
24W-14193-00-00 |
from US $11.58 |
||
|
35
|
35
91A20-07010-00 Hose |
91A20-07010-00 |
from US $3.97 |
||
| replacement | |||||
|
35
|
35
91A21-07020-00 Hose |
91A21-07020-00 |
from US $3.97 |
||
|
36
|
36
4U5-14158-00-00
Top, Mixing Chamber
|
4U5-14158-00-00 |
— | ||
