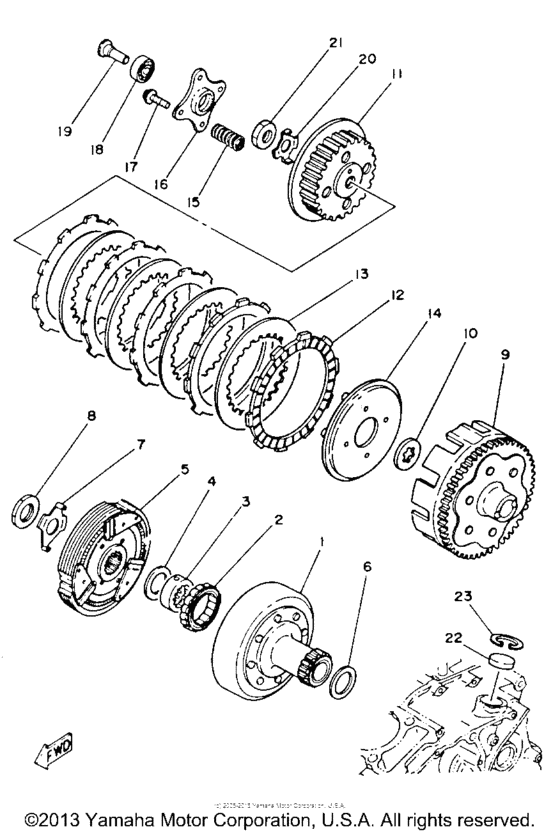

Clutch Diagram Yamaha TRI-MOTO Tri-Moto 225
- Model code
- YTM225DXK
- Engine Capacity
- 223
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GC-16611-00-00 Clutch Housing Comp |
3GC-16611-00-00 |
from US $276.32 |
||
|
2
|
2
21V-16664-00-00 Bearing, One Way |
21V-16664-00-00 |
from US $121.30 |
||
|
3
|
3
21V-16665-01-00
Retainer, Bearing
|
21V-16665-01-00 |
— | ||
|
4
|
4
90201-403G7-00
Washer, Plate
|
90201-403G7-00 |
— | ||
|
5
|
5
99999-01949-00 Clutch Carrier Assembly |
99999-01949-00 |
from US $511.36 |
||
|
5
|
5
90201-404M6-00 Washer, Plate |
90201-404M6-00 |
from US $7.23 |
||
|
5
|
5
4BD-16620-00-00 Clutch Carrier Assy |
4BD-16620-00-00 |
from US $444.39 |
||
| replacement | |||||
|
5
|
5
4BD-16620-01-00 Clutch Carrier Assy |
4BD-16620-01-00 |
US $460.24 |
||
|
5
|
5
90215-22259-00 Washer, Lock |
90215-22259-00 |
from US $3.97 |
||
|
6
|
6
90201-266F6-00 Washer, Plate |
90201-266F6-00 |
from US $3.26 |
||
|
7
|
7
90215-22206-00
Washer, Lock
|
90215-22206-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
90170-22371-00 Nut |
90170-22371-00 |
from US $10.34 |
||
|
9
|
9
2HT-16150-00-00 Primary Driven Gear Comp |
2HT-16150-00-00 |
from US $180.71 |
||
|
10
|
10
5H0-16154-00-00 Plate, Thrust 1 |
5H0-16154-00-00 |
from US $7.94 |
||
|
11
|
11
21V-16371-01-00 Boss, Clutch |
21V-16371-01-00 |
from US $70.28 |
||
|
12
|
12
21V-16321-00-00
Plate, Friction
|
21V-16321-00-00 |
— | ||
| replacement | |||||
|
12
|
12
3XP-16321-00-00 Plate, Friction |
3XP-16321-00-00 |
from US $7.94 |
||
|
13
|
13
257-16324-00-00 Plate, Clutch 1 |
257-16324-00-00 |
from US $14.02 |
||
|
14
|
14
21V-16351-00-00 Plate, Pressure 1 |
21V-16351-00-00 |
US $61.18 |
||
|
15
|
15
905-01247-85-00
Spring, Compression
|
905-01247-85-00 |
— | ||
| replacement | |||||
|
15
|
15
90501-243J7-00 Spring, Compression |
90501-243J7-00 |
from US $6.23 |
||
|
16
|
16
21V-16352-00-00 Plate, Pressure 2 |
21V-16352-00-00 |
from US $8.51 |
||
|
17
|
17
90159-05011-00 Screw, With Washer |
90159-05011-00 |
from US $1.70 |
||
|
18
|
18
933-06000-04-00 Bearing |
933-06000-04-00 |
from US $11.92 |
||
|
19
|
19
1YW-16358-00-00 Plate, Push |
1YW-16358-00-00 |
from US $7.51 |
||
|
20
|
20
90215-14224-00 Washer, Lock |
90215-14224-00 |
from US $1.84 |
||
| replacement | |||||
|
20
|
20
902-15141-86-00 Washer, Lock |
902-15141-86-00 |
from US $1.84 |
||
|
21
|
21
90170-14284-00 Nut |
90170-14284-00 |
from US $4.11 |
||
|
22
|
22
90338-26136-00 Plug |
90338-26136-00 |
from US $6.94 |
||
|
23
|
23
93420-28055-00 Circlip |
93420-28055-00 |
from US $1.70 |
||
