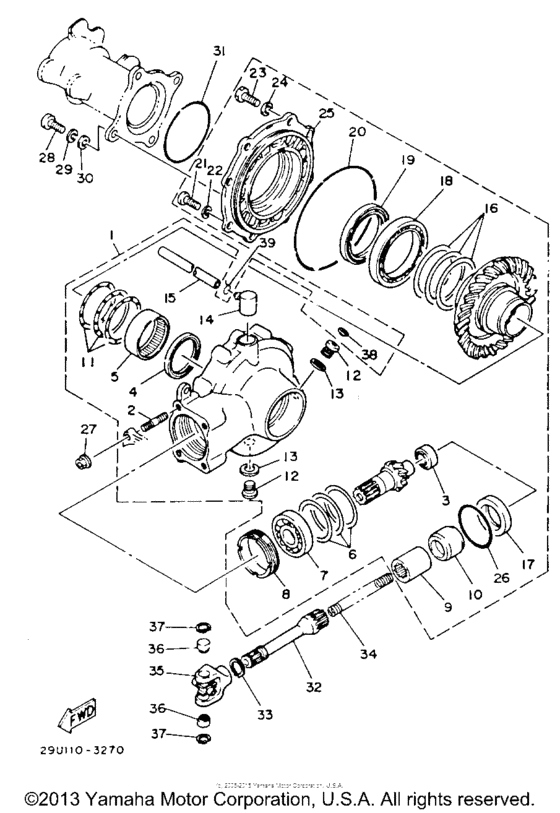

Drive shaft Diagram Yamaha TRI-MOTO Tri-Moto 225
- Model code
- YTM225DXK
- Engine Capacity
- 223
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29U-46101-01-00
R.axle Gear Cs.assemblycase Ass
|
29U-46101-01-00 |
— | ||
|
2
|
2
90116-08360-00 Bolt, Stud |
90116-08360-00 |
from US $4.11 |
||
| replacement | |||||
|
2
|
2
95617-08620-00 Bolt, Stud(2Gg) |
95617-08620-00 |
from US $4.11 |
||
|
3
|
3
24W-46102-00-00 Bearing Assy |
24W-46102-00-00 |
from US $40.40 |
||
|
4
|
4
93101-52116-00 Oil Seal |
93101-52116-00 |
from US $7.51 |
||
|
5
|
5
93317-85569-00 Bearing |
93317-85569-00 |
from US $66.18 |
||
| replacement | |||||
|
5
|
5
933-17855-Y9-00 Bearing |
933-17855-Y9-00 |
from US $47.20 |
||
|
6
|
6
1J7-17537-Y0-30 Shim, Thrust (0.30T)0.30T U.R. |
1J7-17537-Y0-30 |
from US $4.39 |
||
|
6
|
6
1J7-17537-Y0-50 Shim, Thrust (0.50T)0.50T U.R. |
1J7-17537-Y0-50 |
from US $4.39 |
||
|
6
|
6
1J7-17537-Y0-40 Shim, Thrust (0.40T)0.40T U.R. |
1J7-17537-Y0-40 |
from US $4.39 |
||
|
7
|
7
93306-30539-00 Bearing |
93306-30539-00 |
from US $83.45 |
||
| replacement | |||||
|
7
|
7
933-06305-33-00 Bearing |
933-06305-33-00 |
from US $83.45 |
||
|
8
|
8
29U-46125-00-00 Retainer, Bearing |
29U-46125-00-00 |
from US $38.55 |
||
|
9
|
9
2HR-46123-00-00 Coupling, Gear |
2HR-46123-00-00 |
from US $27.77 |
||
|
10
|
10
90387-255H9-00 Collar |
90387-255H9-00 |
from US $10.26 |
||
|
11
|
11
24W-46118-00-16 Washer, Thrust (1.6T)1.6T U.R. |
24W-46118-00-16 |
from US $14.31 |
||
|
11
|
11
24W-46118-00-20 Washer, Thrust (2.0T)2.0T U.R. |
24W-46118-00-20 |
from US $14.31 |
||
|
11
|
11
24W-46118-00-18 Washer, Thrust (1.8T)1.8T U.R. |
24W-46118-00-18 |
from US $14.31 |
||
|
11
|
11
24W-46118-00-12 Washer, Thrust (1.2T)1.2T U.R. |
24W-46118-00-12 |
from US $14.31 |
||
|
11
|
11
24W-46118-00-14 Washer, Thrust (1.4T)1.4T U.R. |
24W-46118-00-14 |
from US $14.31 |
||
|
12
|
12
90340-14046-00 Plug, Straight Screw |
90340-14046-00 |
from US $4.53 |
||
| replacement | |||||
|
12
|
12
90340-14002-00 Plug, Straight Screw |
90340-14002-00 |
from US $3.64 |
||
|
13
|
13
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.66 |
||
|
14
|
14
2H7-17591-01-00 Breather |
2H7-17591-01-00 |
US $26.42 |
||
|
15
|
15
90445-07745-00 Hose (L1700) |
90445-07745-00 |
from US $11.05 |
||
| replacement | |||||
|
15
|
15
90445-070G6-00 Hose (L1700) |
90445-070G6-00 |
from US $11.05 |
||
|
16
|
16
24W-46117-00-40
Shim, Ring Gear (0.40T)
0.40T U.R. |
24W-46117-00-40 |
— | ||
|
16
|
16
24W-46117-00-50
Shim, Ring Gear (0.50T)
0.50T U.R. |
24W-46117-00-50 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
0.50T U.R. |
999-99999-99-00 |
— | ||
|
16
|
16
24W-46117-00-30
Shim, Ring Gear (0.30T)
0.30T U.R. |
24W-46117-00-30 |
— | ||
|
16
|
16
24W-46117-00-25
Shim, Ring Gear (0.25T)
0.25T U.R. |
24W-46117-00-25 |
— | ||
|
17
|
17
93101-38098-00 Oil Seal |
93101-38098-00 |
from US $7.94 |
||
|
18
|
18
93316-01301-00 Bearing |
93316-01301-00 |
from US $74.05 |
||
|
19
|
19
93102-65277-00 Oil Seal |
93102-65277-00 |
from US $12.33 |
||
|
20
|
20
93211-44348-00 O-Ring |
93211-44348-00 |
from US $13.74 |
||
|
21
|
21
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
22
|
22
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
22
|
22
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
23
|
23
970-11100-25-00
Bolt
|
970-11100-25-00 |
— | ||
| replacement | |||||
|
23
|
23
97017-10025-00 Bolt |
97017-10025-00 |
from US $2.41 |
||
|
24
|
24
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
25
|
25
28W-14197-00-00
Pipe
|
28W-14197-00-00 |
— | ||
|
26
|
26
93210-59531-00 O-Ring |
93210-59531-00 |
from US $5.24 |
||
|
27
|
27
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.07 |
||
| replacements | |||||
|
27
|
27
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.07 |
||
|
27
|
27
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
28
|
28
970-11100-25-00
Bolt
|
970-11100-25-00 |
— | ||
| replacement | |||||
|
28
|
28
97017-10025-00 Bolt |
97017-10025-00 |
from US $2.41 |
||
|
29
|
29
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
30
|
30
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
31
|
31
93210-85075-00 O-Ring |
93210-85075-00 |
from US $5.95 |
||
|
32
|
32
29U-46172-01-00
Shaft, Drive
|
29U-46172-01-00 |
— | ||
|
33
|
33
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
34
|
34
905-01167-80-00
Spring, Compression
|
905-01167-80-00 |
— | ||
|
35
|
35
29U-46180-02-00 Cross Joint (29U-46180-01)29U-46180-01 See Note |
29U-46180-02-00 |
US $388.15 |
||
|
36
|
36
933-99999-20-00 Bearing |
933-99999-20-00 |
US $37.93 |
||
|
37
|
37
99009-17500-00 Circlip |
99009-17500-00 |
from US $1.56 |
||
|
38
|
38
341-23469-00-00 Cap, Bolt |
341-23469-00-00 |
from US $2.55 |
||
|
39
|
39
90467-07029-00 Clip |
90467-07029-00 |
from US $1.70 |
||
