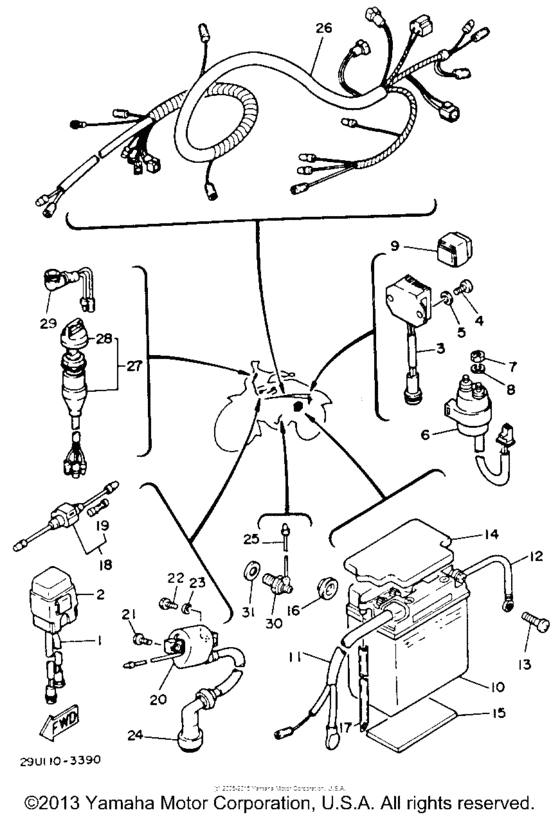

Electrical (1) Diagram Yamaha TRI-MOTO Tri-Moto 225
- Model code
- YTM225DXK
- Engine Capacity
- 223
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29U-85540-21-00
Cdi Unit Assembly
|
29U-85540-21-00 |
— | ||
|
2
|
2
2A7-85546-00-00 Band |
2A7-85546-00-00 |
from US $17.85 |
||
|
3
|
3
29U-81960-90-00 Rectifier/regulator Assembly |
29U-81960-90-00 |
from US $147.73 |
||
|
4
|
4
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
4
|
4
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
5
|
5
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
6
|
6
4KD-81940-00-00 Starter Relay Assy (Ms5D-611) |
4KD-81940-00-00 |
from US $97.54 |
||
|
7
|
7
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
7
|
7
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
9
|
9
25G-81950-01-00 Relay Assy (25G-01)25G-01 |
25G-81950-01-00 |
from US $34.43 |
||
| replacement | |||||
|
9
|
9
25G-81950-02-00 реле в сборереле в сборе 25G-01 |
25G-81950-02-00 |
from US $34.43 |
||
|
10
|
10
BTG-GM14A-Z4-A0
Cb14-A2 Gs Battery
GS BATTERY |
BTG-GM14A-Z4-A0 |
— | ||
| replacement | |||||
|
10
|
10
CB1-4A200-00-00
YAMAHA BANNER 3 X 8
GS BATTERY |
CB1-4A200-00-00 |
— | ||
|
11
|
11
29U-82115-00-00
Wire, Plus Lead
|
29U-82115-00-00 |
— | ||
|
12
|
12
29U-82116-00-00
Wire, Minus Lead
|
29U-82116-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
90153-06034-00 Screw, Hexagon |
90153-06034-00 |
from US $1.70 |
||
|
14
|
14
24W-82129-00-00
Cover, Battery
|
24W-82129-00-00 |
— | ||
|
15
|
15
5X2-24183-00-00 Seat, Battery |
5X2-24183-00-00 |
from US $4.53 |
||
| replacement | |||||
|
15
|
15
5Y1-82122-00-00 Seat, Battery |
5Y1-82122-00-00 |
from US $3.75 |
||
|
16
|
16
371-82121-00-00 Pad, Battery |
371-82121-00-00 |
from US $4.39 |
||
|
17
|
17
3L5-82112-00-00
Pipe, Breather
|
3L5-82112-00-00 |
— | ||
|
18
|
18
29U-82150-00-00
Fuse Holder Assembly
|
29U-82150-00-00 |
— | ||
|
19
|
19
1E6-82151-00-00 Fuse (10A)10A |
1E6-82151-00-00 |
from US $1.66 |
||
|
20
|
20
1UY-82310-41-00 Ignition Coil Assembly |
1UY-82310-41-00 |
from US $101.96 |
||
|
21
|
21
90109-06723-00 Bolt |
90109-06723-00 |
from US $2.13 |
||
|
22
|
22
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
22
|
22
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.93 |
||
|
23
|
23
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
24
|
24
1UY-82370-20-00 Plug Cap Assy |
1UY-82370-20-00 |
from US $19.69 |
||
| replacements | |||||
|
24
|
24
5EL-82370-00-00 Plug Cap Assy |
5EL-82370-00-00 |
from US $23.82 |
||
|
24
|
24
3NS-82370-00-00 Plug Cap Assy |
3NS-82370-00-00 |
from US $19.69 |
||
|
25
|
25
2JX-82541-00-00 Wire, Lead |
2JX-82541-00-00 |
US $19.87 |
||
|
26
|
26
1EV-82590-60-00
Wire Harness Assembly
|
1EV-82590-60-00 |
— | ||
|
27
|
27
2FW-82510-02-00
Main Switch Assembly
|
2FW-82510-02-00 |
— | ||
|
28
|
28
24W-82579-00-00 Cap, Key |
24W-82579-00-00 |
from US $8.64 |
||
|
29
|
29
24W-83530-00-00
Pilot Light Assy
|
24W-83530-00-00 |
— | ||
| replacement | |||||
|
29
|
29
24W-83530-10-00 Pilot Light Assy |
24W-83530-10-00 |
from US $26.07 |
||
|
30
|
30
2H7-82540-00-00
Neutral Switch Assy
|
2H7-82540-00-00 |
— | ||
| replacements | |||||
|
30
|
30
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
30
|
30
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $23.80 |
||
|
30
|
30
24W-82540-00-00
Neutral Switch Assy
|
24W-82540-00-00 |
— | ||
| replacements | |||||
|
30
|
30
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
30
|
30
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $23.80 |
||
|
31
|
31
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.28 |
||
