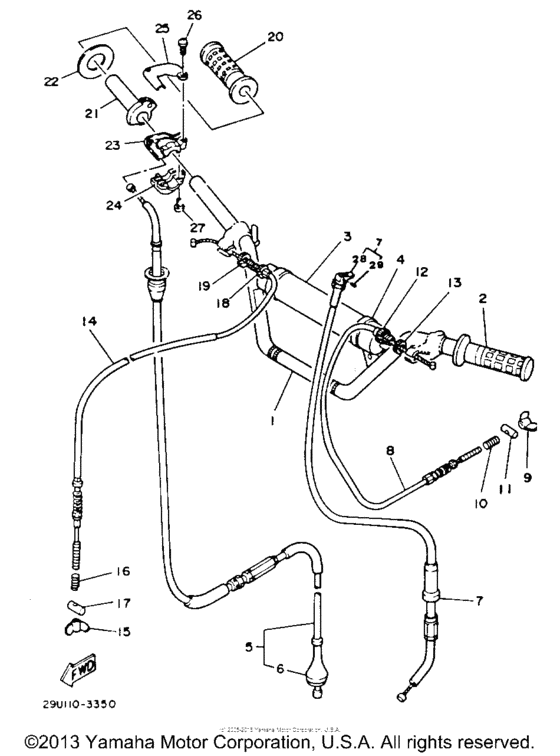

Handlebar - cable Diagram Yamaha TRI-MOTO Tri-Moto 225
- Model code
- YTM225DXK
- Engine Capacity
- 223
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29U-26111-01-00
Handlebar
|
29U-26111-01-00 |
— | ||
|
2
|
2
4V4-26241-01-00
Grip (Left)
|
4V4-26241-01-00 |
— | ||
| replacement | |||||
|
2
|
2
1LX-26241-01-00 Grip (Left) |
1LX-26241-01-00 |
from US $14.31 |
||
|
3
|
3
21V-26124-00-00
Protector, Hdlbr
|
21V-26124-00-00 |
— | ||
|
4
|
4
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
5
|
5
29U-26311-00-00
Cable, Throttle 1
|
29U-26311-00-00 |
— | ||
|
6
|
6
21V-26329-00-00
Cap, Rubber
|
21V-26329-00-00 |
— | ||
|
7
|
7
29U-26331-00-00 Cable, Starter 1 |
29U-26331-00-00 |
from US $47.70 |
||
|
8
|
8
29U-26341-00-00
Cable, Brake
|
29U-26341-00-00 |
— | ||
|
9
|
9
20E-26343-00-00 Nut, Adjusting |
20E-26343-00-00 |
from US $11.33 |
||
|
10
|
10
90501-10782-00 Spring, Compression |
90501-10782-00 |
from US $1.84 |
||
|
11
|
11
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
12
|
12
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
| replacement | |||||
|
12
|
12
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
13
|
13
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
13
|
13
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
14
|
14
29U-26373-00-00
Cable, Brake 4
|
29U-26373-00-00 |
— | ||
|
15
|
15
90179-06176-00 Nut (525) |
90179-06176-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
90179-06411-00 Nut |
90179-06411-00 |
from US $1.34 |
||
|
16
|
16
90501-10782-00 Spring, Compression |
90501-10782-00 |
from US $1.84 |
||
|
17
|
17
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
18
|
18
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
| replacement | |||||
|
18
|
18
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
19
|
19
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
19
|
19
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
20
|
20
1LX-26242-01-00 Grip (Right) |
1LX-26242-01-00 |
from US $14.31 |
||
|
21
|
21
322-26243-00-00 Tube, Throttle Guide |
322-26243-00-00 |
from US $12.61 |
||
| replacement | |||||
|
21
|
21
22W-26243-00-00 Tube, Throttle Guide |
22W-26243-00-00 |
from US $12.61 |
||
|
22
|
22
1W1-26249-00-00
Ring, Leaf
|
1W1-26249-00-00 |
— | ||
|
23
|
23
5X2-26281-00-00 Cap, Grip Upper |
5X2-26281-00-00 |
from US $21.82 |
||
|
24
|
24
322-26282-00-00 Cap, Grip Under |
322-26282-00-00 |
from US $14.45 |
||
|
25
|
25
5X2-2628H-01-00 Cap, Wire |
5X2-2628H-01-00 |
from US $8.64 |
||
|
26
|
26
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
26
|
26
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.34 |
||
|
27
|
27
985-06050-16-00
Screw, Pan Head
|
985-06050-16-00 |
— | ||
| replacements | |||||
|
27
|
27
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
27
|
27
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
28
|
28
21V-26374-00-00 End, Cable 3 |
21V-26374-00-00 |
from US $12.89 |
||
|
29
|
29
916-09300-10-00
Pin, Spring
|
916-09300-10-00 |
— | ||
| replacement | |||||
|
29
|
29
91690-30010-00 Pin, Spring |
91690-30010-00 |
from US $1.56 |
||
