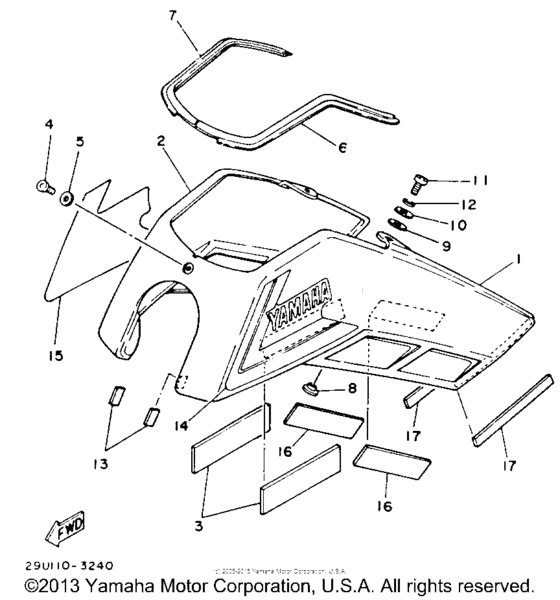

Rear fender Diagram Yamaha TRI-MOTO Tri-Moto 225
- Model code
- YTM225DXK
- Engine Capacity
- 223
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29U-W2176-00-00
Side Cover 1
|
29U-W2176-00-00 |
— | ||
|
2
|
2
29U-W2177-00-00
Side Cover 2
|
29U-W2177-00-00 |
— | ||
|
3
|
3
3WX-15451-00-00 Gasket, Crankcase Cover 1 |
3WX-15451-00-00 |
US $27.79 |
||
|
4
|
4
98903-06012-00 Screw, Bind |
98903-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
4
|
4
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.07 |
||
|
5
|
5
90201-06062-00 Washer, Plate |
90201-06062-00 |
from US $1.70 |
||
|
6
|
6
29U-2171L-00-00
Mold, Side Cover 1
|
29U-2171L-00-00 |
— | ||
|
7
|
7
29U-2171M-00-00
Mold, Side Cover 2
|
29U-2171M-00-00 |
— | ||
|
8
|
8
90387-07789-00 Collar |
90387-07789-00 |
from US $3.54 |
||
|
9
|
9
90201-104G5-00
Washer, Plate
|
90201-104G5-00 |
— | ||
|
10
|
10
902-01060-73-00
Washer, Plate
|
902-01060-73-00 |
— | ||
| replacement | |||||
|
10
|
10
90201-06086-00 Washer, Plate |
90201-06086-00 |
from US $1.98 |
||
|
11
|
11
92580-06020-00 Screw |
92580-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
13
|
13
28W-14197-00-00
Pipe
|
28W-14197-00-00 |
— | ||
|
14
|
14
29U-21781-00-00
Emblem 1
|
29U-21781-00-00 |
— | ||
|
15
|
15
29U-21782-00-00
Emblem 2
|
29U-21782-00-00 |
— | ||
|
16
|
16
28W-14197-00-00
Pipe
|
28W-14197-00-00 |
— | ||
|
17
|
17
3CV-28371-00-00 Damper |
3CV-28371-00-00 |
from US $2.16 |
||
| replacement | |||||
|
17
|
17
3FA-21639-00-00 Damper 2 |
3FA-21639-00-00 |
from US $4.25 |
||
