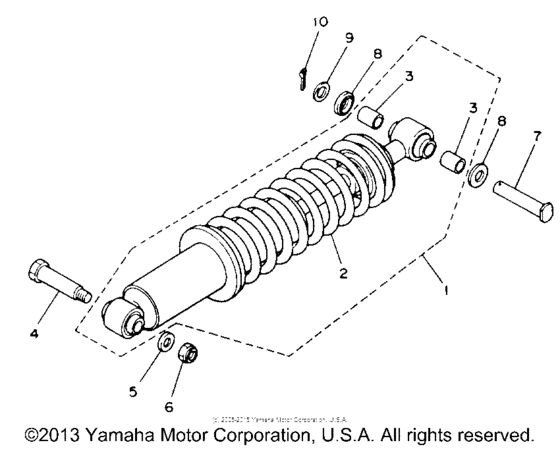

Rear shocks Diagram Yamaha TRI-MOTO Tri-Moto 225
- Model code
- YTM225DXK
- Engine Capacity
- 223
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 225
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29U-22210-01-33
Shk/abs Assembly, Rearassembly,
|
29U-22210-01-33 |
— | ||
|
2
|
2
28W-14197-00-00
Pipe
Yamaha Blk hard |
28W-14197-00-00 |
— | ||
|
3
|
3
90380-12051-00 Bush, Solid |
90380-12051-00 |
from US $5.67 |
||
|
4
|
4
90109-10736-00
Bolt
|
90109-10736-00 |
— | ||
|
5
|
5
90201-102G9-00 Washer, Plate (26H) |
90201-102G9-00 |
from US $2.69 |
||
|
6
|
6
956-01101-00-00
Nut, U (737 Steering Column)
|
956-01101-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95617-10100-00 Nut, U |
95617-10100-00 |
from US $4.11 |
||
|
7
|
7
90240-12092-00 Pin, Clevis |
90240-12092-00 |
from US $6.80 |
||
|
8
|
8
1W1-22128-00-00 Cover, Thrust 1 |
1W1-22128-00-00 |
from US $10.48 |
||
|
9
|
9
92990-12600-00 Washer, Plate |
92990-12600-00 |
from US $1.42 |
||
|
10
|
10
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
10
|
10
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
