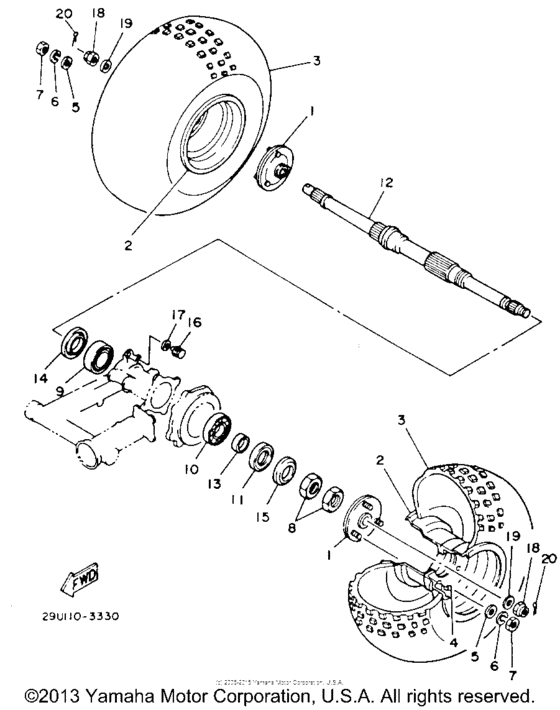

Rear wheel Diagram Yamaha TRI-MOTO Tri-Moto 225
- Model code
- YTM225DXK
- Engine Capacity
- 223
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5V7-25383-00-00 Collar, Wheel (3X3-25383-00)3X3-25383-00 |
5V7-25383-00-00 |
US $122.90 |
||
|
2
|
2
29U-25390-00-35
Wheel, Rear
for cpy |
29U-25390-00-35 |
— | ||
|
2
|
2
29U-25390-00-8L
Wheel, Rear
for yb |
29U-25390-00-8L |
— | ||
|
3
|
3
941-11083-H6-00
22X11-8 Kt755 Dun
|
941-11083-H6-00 |
— | ||
|
4
|
4
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
5
|
5
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.07 |
||
|
6
|
6
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
7
|
7
95311-10600-00 Nut |
95311-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
7
|
7
95314-10600-00 Nut |
95314-10600-00 |
from US $1.45 |
||
|
8
|
8
90179-40419-00
Nut, Specl Shape
|
90179-40419-00 |
— | ||
|
9
|
9
93399-99913-00 Bearing, Special |
93399-99913-00 |
from US $95.40 |
||
|
10
|
10
93306-00803-00 Bearing |
93306-00803-00 |
from US $42.14 |
||
| replacement | |||||
|
10
|
10
93306-00804-00 Bearing(1Ev) |
93306-00804-00 |
from US $48.08 |
||
|
11
|
11
93102-46274-00 Oil Seal, Sd-Type |
93102-46274-00 |
from US $13.32 |
||
|
12
|
12
29U-25381-00-00
Axle, Wheel
|
29U-25381-00-00 |
— | ||
|
13
|
13
24W-25386-00-00
Collar, Axle
|
24W-25386-00-00 |
— | ||
|
14
|
14
24W-25367-00-00 Cover, Hub Dust |
24W-25367-00-00 |
from US $8.50 |
||
|
15
|
15
21V-25367-00-00
Cover, Hub Dust
|
21V-25367-00-00 |
— | ||
|
16
|
16
901-19100-98-00
Bolt, With Washer
|
901-19100-98-00 |
— | ||
|
17
|
17
90201-104G0-00 Washer, Plate |
90201-104G0-00 |
from US $3.12 |
||
|
18
|
18
90171-14037-00 Nut, Castle (29U) |
90171-14037-00 |
from US $5.64 |
||
|
19
|
19
90201-140A6-00 Washer, Plate |
90201-140A6-00 |
US $3.83 |
||
| replacement | |||||
|
19
|
19
90201-14022-00 Washer, Plate |
90201-14022-00 |
from US $3.83 |
||
|
20
|
20
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
20
|
20
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
