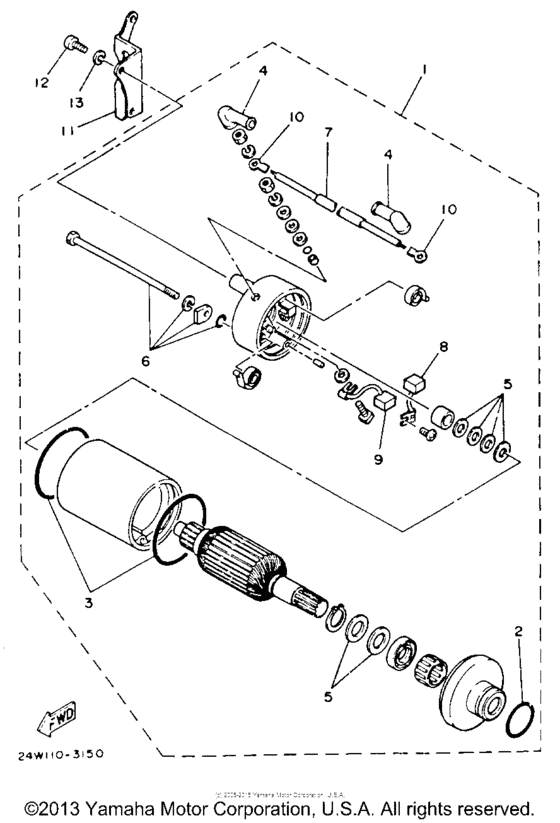

Starting motor Diagram Yamaha TRI-MOTO Tri-Moto 225
- Model code
- YTM225DXK
- Engine Capacity
- 223
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 225
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29U-81800-61-00
Starting Motor Assembly (24W-81
24W-81 |
29U-81800-61-00 |
— | ||
|
2
|
2
5H0-81847-01-00 O-Ring |
5H0-81847-01-00 |
US $34.76 |
||
|
3
|
3
5H0-81844-00-00
Gasket
|
5H0-81844-00-00 |
— | ||
| replacement | |||||
|
3
|
3
5H0-81844-01-00
Gasket
|
5H0-81844-01-00 |
— | ||
|
4
|
4
5H0-81871-00-00
Cover Terminal
|
5H0-81871-00-00 |
— | ||
|
5
|
5
5H0-81809-00-00
Washer Kit
|
5H0-81809-00-00 |
— | ||
|
6
|
6
5H0-81826-00-00
Bolt
|
5H0-81826-00-00 |
— | ||
|
7
|
7
29U-81815-00-00
Cord, Starter Motor
|
29U-81815-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
5H0-81811-00-00 Cap |
5H0-81811-00-00 |
from US $25.65 |
||
|
9
|
9
5H0-81812-00-00 Brush 2 |
5H0-81812-00-00 |
from US $25.65 |
||
|
10
|
10
5H0-81818-00-00 Terminal Set |
5H0-81818-00-00 |
US $58.43 |
||
|
11
|
11
24W-81823-00-00
Stay, Starting Motor
|
24W-81823-00-00 |
— | ||
|
12
|
12
985-06060-16-00
Screw Pan Head
|
985-06060-16-00 |
— | ||
| replacement | |||||
|
12
|
12
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
13
|
13
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
