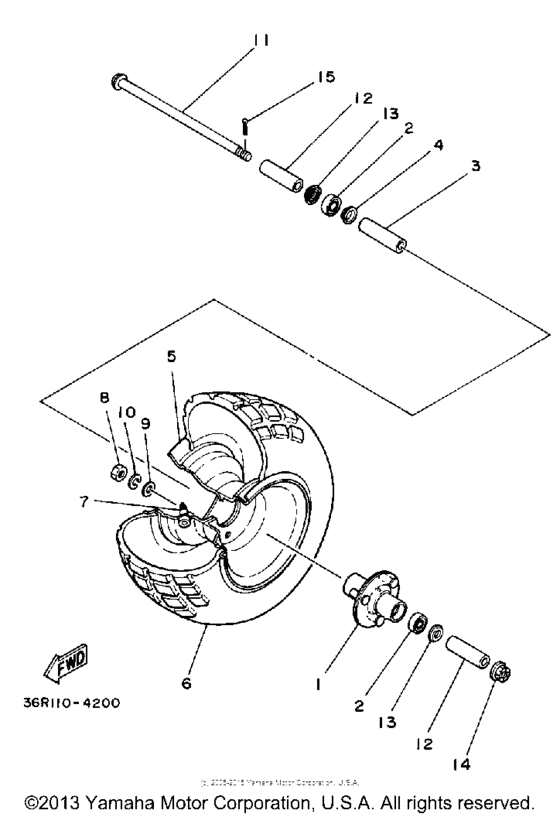

Front wheel Diagram Yamaha TRI-ZINGER Tri-Zinger 60
- Model code
- YT60N
- Engine Capacity
- 59
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Zinger 60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36R-25111-00-00
Hub, Front
|
36R-25111-00-00 |
— | ||
|
2
|
2
93306-00108-00 Bearing |
93306-00108-00 |
from US $18.14 |
||
|
3
|
3
905-60123-00-00
Spacer, Brng
|
905-60123-00-00 |
— | ||
|
4
|
4
36R-25116-00-00
Flange, Spacer 2
|
36R-25116-00-00 |
— | ||
|
5
|
5
36R-25180-01-35 Wheel, Front (36R-25180-00-35)36R-25180-00-35 SILVER |
36R-25180-01-35 |
US $115.63 |
||
| replacement | |||||
|
5
|
5
3NJ-25180-00-35 Wheel Comp36R-25180-00-35 SILVER |
3NJ-25180-00-35 |
US $108.86 |
||
|
6
|
6
941-07063-E8-00
Tire (36R)
|
941-07063-E8-00 |
— | ||
|
7
|
7
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
8
|
8
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
8
|
8
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
9
|
9
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
10
|
10
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
11
|
11
36R-25181-00-00 Axle, Wheel |
36R-25181-00-00 |
from US $22.97 |
||
|
12
|
12
36R-25183-00-00
Collar, Wheel
|
36R-25183-00-00 |
— | ||
|
13
|
13
36R-25118-00-00
Cover, Hub Dust
|
36R-25118-00-00 |
— | ||
|
14
|
14
901-71120-23-00 Nut, Castle |
901-71120-23-00 |
from US $3.58 |
||
| replacement | |||||
|
14
|
14
901-71120-50-00 NUT,CASTLE |
901-71120-50-00 |
from US $3.58 |
||
|
15
|
15
91401-25030-00 Pin. Cotter |
91401-25030-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
91490-25030-00 Pin. Cotter |
91490-25030-00 |
from US $1.34 |
||
