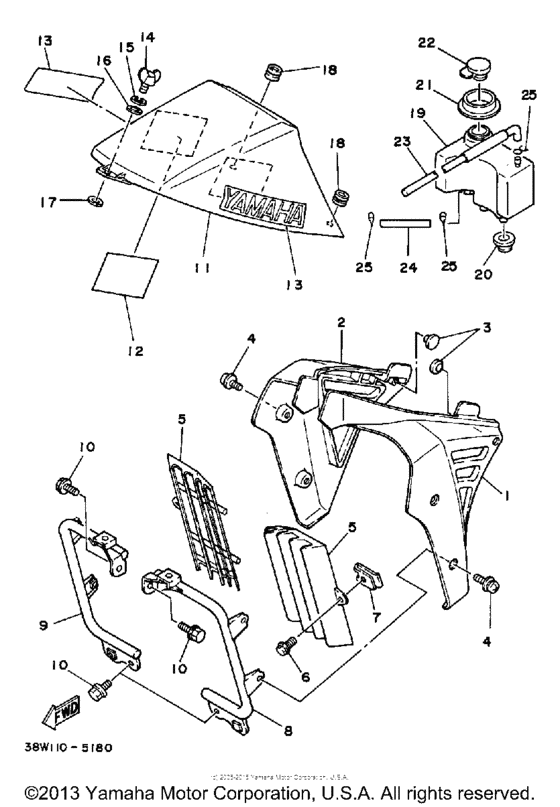

Side cover Diagram Yamaha TRI-ZINGER Tri-Zinger 250
- Model code
- YTZ250N
- Engine Capacity
- 246
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Zinger 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38W-21711-00-00
Cover, Side 1
COMP. YELLOW |
38W-21711-00-00 |
— | ||
|
1
|
1
38W-21711-10-00
Cover, Side 1
YAMAHA BLACK |
38W-21711-10-00 |
— | ||
|
2
|
2
38W-21721-00-00
Cover, Side 2
COMP. YELLOW |
38W-21721-00-00 |
— | ||
|
2
|
2
38W-21721-10-00
Cover, Side 2
YAMAHA BLACK |
38W-21721-10-00 |
— | ||
|
3
|
3
22W-24181-00-00 Damper, Locating 1 |
22W-24181-00-00 |
from US $3.26 |
||
|
4
|
4
90159-05100-00 Screw, With Washer |
90159-05100-00 |
from US $2.69 |
||
| replacements | |||||
|
4
|
4
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
4
|
4
90159-05073-00 Screw, With Washer |
90159-05073-00 |
from US $2.69 |
||
|
5
|
5
38W-2172A-00-00
Panel 1
|
38W-2172A-00-00 |
— | ||
|
6
|
6
90159-05018-00 Screw, With Washer |
90159-05018-00 |
from US $1.98 |
||
|
7
|
7
22W-21791-00-00 Nut |
22W-21791-00-00 |
from US $10.49 |
||
|
8
|
8
38W-2172E-00-00
Stay, Side Cover 1
|
38W-2172E-00-00 |
— | ||
|
9
|
9
38W-2174E-00-00
Stay, Side Cover 2
|
38W-2174E-00-00 |
— | ||
|
10
|
10
95816-08012-00 Bolt, Flange |
95816-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
11
|
11
38W-21731-00-00
Cover, Side 3
|
38W-21731-00-00 |
— | ||
|
12
|
12
5X2-24183-00-00 Seat, Battery |
5X2-24183-00-00 |
from US $4.53 |
||
| replacement | |||||
|
12
|
12
5Y1-82122-00-00 Seat, Battery |
5Y1-82122-00-00 |
from US $3.75 |
||
|
13
|
13
38W-21781-00-00
Emblem 1
|
38W-21781-00-00 |
— | ||
|
14
|
14
901-22060-21-00
Bolt, Wing (38W)
38W |
901-22060-21-00 |
— | ||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
16
|
16
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
17
|
17
90179-06013-00 Nut, Spec''l Shape |
90179-06013-00 |
from US $2.30 |
||
|
18
|
18
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.66 |
||
|
19
|
19
38W-21871-00-00
Tank, Recovery
|
38W-21871-00-00 |
— | ||
|
20
|
20
90480-18171-00 Grommet |
90480-18171-00 |
from US $1.70 |
||
|
21
|
21
90480-48399-00 Grommet |
90480-48399-00 |
from US $4.82 |
||
|
22
|
22
10V-21875-00-00 Cap |
10V-21875-00-00 |
from US $5.96 |
||
|
23
|
23
38W-21744-00-00
Breather
|
38W-21744-00-00 |
— | ||
|
24
|
24
90445-09271-00 Hose (L865) |
90445-09271-00 |
from US $12.75 |
||
| replacement | |||||
|
24
|
24
904-45090-21-00 Hose (L865) |
904-45090-21-00 |
from US $12.75 |
||
|
25
|
25
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
