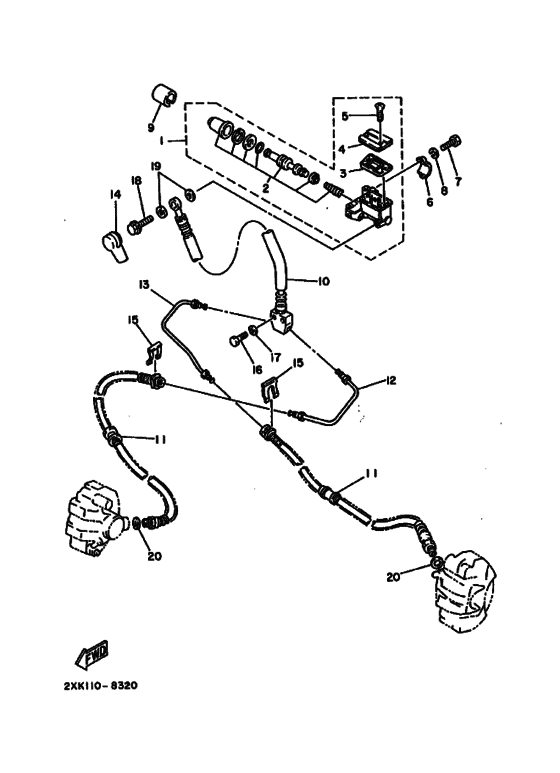

Front master cylinder Diagram Yamaha WARRIOR 350
- Model code
- 2XK0
- Engine Capacity
- 348
- Year
- 1988
- Sales region
- Europe (020)
- Colour
- White (WW; 0036)
- Color Variant
- A
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GU-25850-00-00 Master Cyl. Assy |
2GU-25850-00-00 |
from US $226.58 |
||
| replacement | |||||
|
1
|
1
2GU-25870-10-00 Master Cylinder Sub Assy |
2GU-25870-10-00 |
from US $164.94 |
||
|
2
|
2
4H7-W0041-50-00 Cylinder Kit, Master |
4H7-W0041-50-00 |
from US $49.18 |
||
|
3
|
3
4L0-25854-00-00 Gasket, Diaphragm |
4L0-25854-00-00 |
from US $15.58 |
||
|
4
|
4
2GU-25852-00-00 Cap, Reservoir |
2GU-25852-00-00 |
from US $22.10 |
||
| replacement | |||||
|
4
|
4
4H7-25852-00-00 Cap, Reservoir |
4H7-25852-00-00 |
from US $22.10 |
||
|
5
|
5
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
5
|
5
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
6
|
6
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
7
|
7
97016-06025-00 Bolt |
97016-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
8
|
8
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
9
|
9
1UY-26259-00-00 Collar |
1UY-26259-00-00 |
from US $1.70 |
||
|
10
|
10
2XK-25872-00-00 Hose,brake 1 |
2XK-25872-00-00 |
US $123.35 |
||
| replacement | |||||
|
10
|
10
999-99027-88-00 Hose Brake 1 (2Xk) |
999-99027-88-00 |
US $123.35 |
||
|
11
|
11
2XK-25873-00-00
Hose,brk 2
|
2XK-25873-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99028-03-00
Brake Hose 2
|
999-99028-03-00 |
— | ||
|
12
|
12
2XK-25871-00-00
Pipe, Brake
|
2XK-25871-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
2XK-25882-00-00
Pipe, Brake 2
|
2XK-25882-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
4L0-25862-00-00 Boot, Master Cylinder |
4L0-25862-00-00 |
from US $10.34 |
||
| replacement | |||||
|
14
|
14
4L0-25862-01-00 Boot, Master Cylinder |
4L0-25862-01-00 |
from US $10.34 |
||
|
15
|
15
2GU-25866-00-00 Circlip |
2GU-25866-00-00 |
from US $4.53 |
||
|
16
|
16
97313-08025-00 Bolt |
97313-08025-00 |
from US $3.54 |
||
| replacement | |||||
|
16
|
16
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
17
|
17
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
18
|
18
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
18
|
18
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
19
|
19
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
19
|
19
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
20
|
20
90430-10200-00 Gasket |
90430-10200-00 |
from US $2.13 |
||
