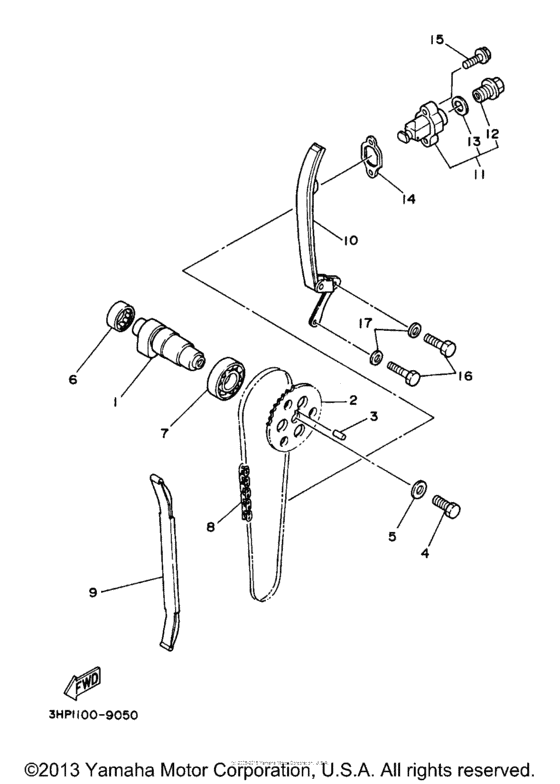

Camshaft & chain Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-12170-00-00 Camshaft Assy 1 |
1UY-12170-00-00 |
from US $234.87 |
||
|
2
|
2
3HN-12176-00-00 Sprocket, Cam Chain |
3HN-12176-00-00 |
from US $74.61 |
||
|
3
|
3
93604-10011-00 Pin, Dowel |
93604-10011-00 |
from US $1.34 |
||
|
4
|
4
90101-10303-00 Bolt |
90101-10303-00 |
from US $3.40 |
||
|
5
|
5
90201-10774-00 Washer, Plate (3L6) |
90201-10774-00 |
from US $1.35 |
||
|
6
|
6
93315-32516-00 Bearing |
93315-32516-00 |
from US $11.33 |
||
|
7
|
7
93306-00515-00 Bearing |
93306-00515-00 |
from US $29.04 |
||
|
8
|
8
94500-02090-00 Chain (Bf05M 90L)90L |
94500-02090-00 |
from US $35.65 |
||
|
9
|
9
3Y1-12231-01-00 Guide, Stopper 1 |
3Y1-12231-01-00 |
from US $25.36 |
||
|
10
|
10
1UY-12241-00-00 Guide, Stopper 2 |
1UY-12241-00-00 |
from US $47.11 |
||
|
11
|
11
31G-12210-01-00 Tensioner Assy, Cam Chain |
31G-12210-01-00 |
from US $76.54 |
||
|
12
|
12
31G-12222-00-00 Plug |
31G-12222-00-00 |
from US $9.49 |
||
|
13
|
13
31G-12214-00-00 Gasket |
31G-12214-00-00 |
from US $3.12 |
||
|
14
|
14
3GD-12213-00-00 Gasket, Tensioner Case |
3GD-12213-00-00 |
from US $1.66 |
||
|
15
|
15
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $1.98 |
||
|
16
|
16
970-27060-16-00
Bolt
|
970-27060-16-00 |
— | ||
| replacement | |||||
|
16
|
16
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
17
|
17
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
