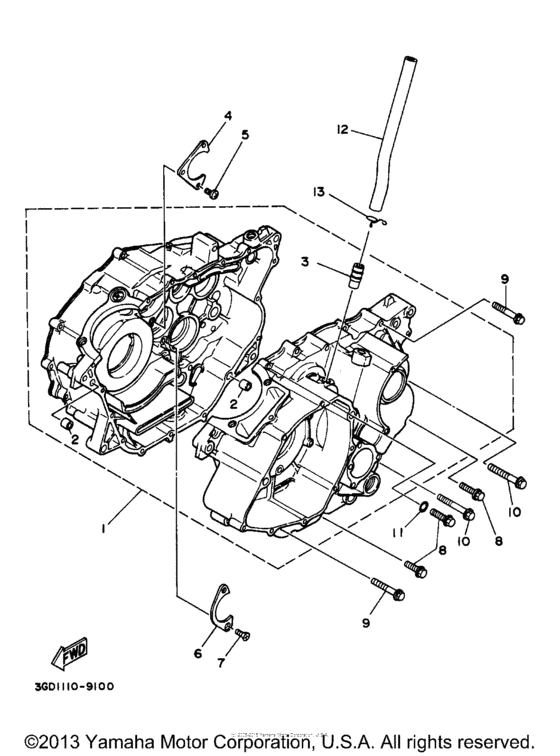

Crankcase Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GD-15100-00-00 Crankcase Assy |
3GD-15100-00-00 |
from US $1,197.24 |
||
| replacement | |||||
|
1
|
1
3GD-15100-03-00 Crankcase Assy |
3GD-15100-03-00 |
from US $1,197.24 |
||
|
2
|
2
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
2
|
2
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
3
|
3
371-11167-01-00 Pipe, Breather 2 |
371-11167-01-00 |
from US $8.36 |
||
|
4
|
4
3R4-15381-00-00 Plate, Bearing Cover |
3R4-15381-00-00 |
from US $6.53 |
||
|
5
|
5
985-07060-12-00
Screw, Pan Head
|
985-07060-12-00 |
— | ||
| replacement | |||||
|
5
|
5
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
6
|
6
1UY-15383-00-00 Plate, Bearing Cover |
1UY-15383-00-00 |
from US $5.81 |
||
|
7
|
7
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.34 |
||
|
8
|
8
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.34 |
||
|
9
|
9
90105-06798-00 Bolt, Flange |
90105-06798-00 |
from US $3.54 |
||
|
10
|
10
950-27060-60-00
Bolt, Flange
|
950-27060-60-00 |
— | ||
| replacement | |||||
|
10
|
10
95022-06060-00 Bolt, Flange |
95022-06060-00 |
from US $1.56 |
||
|
11
|
11
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.28 |
||
|
12
|
12
90445-16594-00
Hose
|
90445-16594-00 |
— | ||
| replacement | |||||
|
12
|
12
90445-16416-00
Hose (L285)
|
90445-16416-00 |
— | ||
|
13
|
13
90467-14015-00 Clip |
90467-14015-00 |
from US $1.70 |
||
