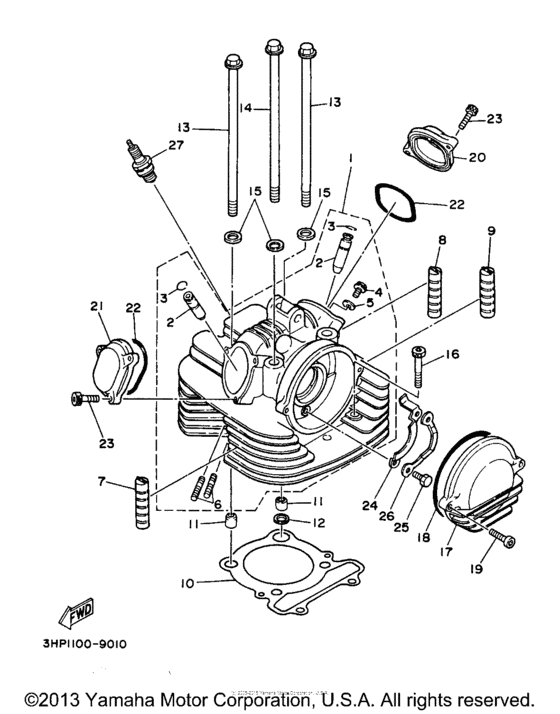

Cylinder head Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-11110-02-00 Cylinder Head Assy |
1UY-11110-02-00 |
US $1,419.53 |
||
|
2
|
2
3Y1-11133-11-00 Guide, Valve 1 |
3Y1-11133-11-00 |
from US $30.10 |
||
|
3
|
3
93440-12052-00 Circlip |
93440-12052-00 |
from US $1.84 |
||
|
4
|
4
90401-06001-00 Bolt, Union |
90401-06001-00 |
from US $5.10 |
||
|
5
|
5
90430-06192-00 Gasket |
90430-06192-00 |
from US $1.28 |
||
| replacement | |||||
|
5
|
5
90430-06166-00 Gasket |
90430-06166-00 |
from US $1.28 |
||
|
6
|
6
90116-06503-00 Bolt, Stud |
90116-06503-00 |
from US $1.45 |
||
|
7
|
7
583-11127-00-00 Absorber 3 |
583-11127-00-00 |
from US $3.26 |
||
|
8
|
8
583-11127-00-00 Absorber 3 |
583-11127-00-00 |
from US $3.26 |
||
|
9
|
9
583-11127-00-00 Absorber 3 |
583-11127-00-00 |
from US $3.26 |
||
|
10
|
10
1UY-11181-00-00 Gasket, Cylinder Head 1 |
1UY-11181-00-00 |
from US $25.50 |
||
| replacement | |||||
|
10
|
10
1UY-11181-01-00 Gasket, Cylinder Head 1 |
1UY-11181-01-00 |
from US $25.50 |
||
|
11
|
11
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.56 |
||
|
12
|
12
904-30141-31-00 Gasket |
904-30141-31-00 |
from US $6.66 |
||
|
13
|
13
90105-10421-00 Bolt, Flange |
90105-10421-00 |
from US $8.10 |
||
| replacements | |||||
|
13
|
13
901-05101-37-00 Bolt, Flange |
901-05101-37-00 |
from US $9.21 |
||
|
13
|
13
90105-10781-00 Bolt, Washer Based(4Km) |
90105-10781-00 |
from US $10.48 |
||
|
14
|
14
90105-10422-00 Bolt, Flange |
90105-10422-00 |
from US $8.19 |
||
| replacements | |||||
|
14
|
14
901-05101-36-00 Bolt, Washer Based |
901-05101-36-00 |
from US $9.35 |
||
|
14
|
14
90105-10N53-00 Bolt, Flange |
90105-10N53-00 |
from US $11.48 |
||
|
15
|
15
90201-10128-00 Washer Plate 341839090000 |
90201-10128-00 |
from US $1.56 |
||
|
16
|
16
91317-08050-00 Bolt, Hex. Socket Head |
91317-08050-00 |
from US $1.56 |
||
|
17
|
17
3Y1-11185-00-00 Cover, Cylinder Head Side 3 |
3Y1-11185-00-00 |
US $46.46 |
||
|
18
|
18
93211-06635-00 O-Ring |
93211-06635-00 |
from US $6.96 |
||
|
19
|
19
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
20
|
20
3Y1-11186-00-00 Cover, Cylinder Head |
3Y1-11186-00-00 |
from US $24.17 |
||
| replacement | |||||
|
20
|
20
3Y1-11186-10-00 Cover, Cylinder Head Side 2 |
3Y1-11186-10-00 |
from US $19.83 |
||
|
21
|
21
2NL-11187-00-00 Cover, Cylinder Head Side 3 |
2NL-11187-00-00 |
from US $7.79 |
||
| replacement | |||||
|
21
|
21
2NL-11187-11-00 Cover, Cylinder Head Side 3 |
2NL-11187-11-00 |
from US $7.79 |
||
|
22
|
22
93210-57634-00 O-Ring |
93210-57634-00 |
from US $4.11 |
||
|
23
|
23
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
24
|
24
3Y1-1111F-00-00 Plate |
3Y1-1111F-00-00 |
from US $3.98 |
||
|
25
|
25
970-07060-12-00
Bolt
|
970-07060-12-00 |
— | ||
| replacement | |||||
|
25
|
25
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
26
|
26
90215-06162-00 Washer, Lock |
90215-06162-00 |
from US $1.34 |
||
|
27
|
27
94701-00181-00
Nippon Denso Sparkplug X24Es-U
X24ES-U UR |
94701-00181-00 |
— | ||
|
27
|
27
NGK-D8EA0-00-00 Ngk-D8Ea-10 PkPK UR |
NGK-D8EA0-00-00 |
US $5.30 |
||
| replacement | |||||
|
27
|
27
D8E-A0000-00-00 Spark plug D8EAPK UR |
D8E-A0000-00-00 |
US $50.20 |
||
