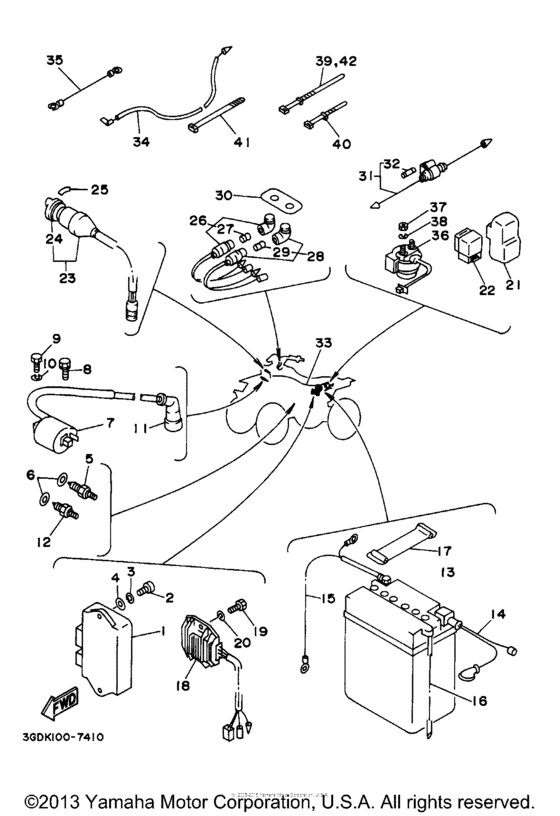

Electrical (1) Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GD-85540-40-00 C.d.i. Unit Assy |
3GD-85540-40-00 |
from US $570.24 |
||
|
2
|
2
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.13 |
||
|
3
|
3
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
4
|
4
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
5
|
5
3GB-82540-01-00 Neutral Switch Assy |
3GB-82540-01-00 |
from US $18.42 |
||
|
6
|
6
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.28 |
||
|
7
|
7
3GD-82310-10-00 Ignition Coil Assy |
3GD-82310-10-00 |
from US $135.67 |
||
|
8
|
8
90109-06723-00 Bolt |
90109-06723-00 |
from US $2.13 |
||
|
9
|
9
970-07060-20-00
Bolt
|
970-07060-20-00 |
— | ||
| replacement | |||||
|
9
|
9
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
10
|
10
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
11
|
11
3NS-82370-00-00 Plug Cap Assy |
3NS-82370-00-00 |
from US $19.69 |
||
| replacement | |||||
|
11
|
11
5EL-82370-00-00 Plug Cap Assy |
5EL-82370-00-00 |
from US $23.82 |
||
|
12
|
12
3GD-82540-11-00 Neutral Switch Assy |
3GD-82540-11-00 |
from US $20.84 |
||
|
13
|
13
BTG-GM12C-Z4-A2
Cb12Ca Gs Battery
UR |
BTG-GM12C-Z4-A2 |
— | ||
| replacements | |||||
|
13
|
13
CB1-2CA00-00-00
PACKING
UR |
CB1-2CA00-00-00 |
— | ||
|
13
|
13
ACB-12CA0-00-00
Acb12Ca Gs Battery W
UR |
ACB-12CA0-00-00 |
— | ||
|
14
|
14
1YW-82115-00-00 Wire, Plus Lead |
1YW-82115-00-00 |
from US $36.06 |
||
|
15
|
15
3GD-82116-00-00 Wire, Minus Lead |
3GD-82116-00-00 |
from US $37.17 |
||
|
16
|
16
90445-08582-00 Hose (L1500) |
90445-08582-00 |
from US $10.91 |
||
| replacement | |||||
|
16
|
16
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.28 |
||
|
17
|
17
337-82131-00-00 Band, Battery |
337-82131-00-00 |
from US $17.57 |
||
|
18
|
18
4KB-81960-01-00 Rectifier & Regulator Assy |
4KB-81960-01-00 |
from US $183.75 |
||
| replacement | |||||
|
18
|
18
4KB-81960-02-00 Rectifier & Regulator Assy |
4KB-81960-02-00 |
from US $183.75 |
||
|
19
|
19
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
20
|
20
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
21
|
21
29U-81950-93-00 Relay Assy (Aca12115-1)29U-93 |
29U-81950-93-00 |
from US $34.06 |
||
|
22
|
22
3GD-81950-01-00 Relay Assy (3Gd-01)3GD-01 |
3GD-81950-01-00 |
from US $37.30 |
||
|
23
|
23
4GB-82510-00-00 Main Switch Assy |
4GB-82510-00-00 |
from US $74.47 |
||
| replacements | |||||
|
23
|
23
4GB-82510-11-00 Main Switch Assy |
4GB-82510-11-00 |
from US $74.47 |
||
|
23
|
23
4GB-82510-12-00 Main Switch Assy |
4GB-82510-12-00 |
US $72.76 |
||
|
24
|
24
3HN-82579-00-00 Cap, Key |
3HN-82579-00-00 |
from US $5.30 |
||
|
25
|
25
29U-83585-10-00
Label
|
29U-83585-10-00 |
— | ||
|
26
|
26
24W-83530-01-00 Pilot Light Assy |
24W-83530-01-00 |
from US $26.07 |
||
| replacement | |||||
|
26
|
26
24W-83530-10-00 Pilot Light Assy |
24W-83530-10-00 |
from US $26.07 |
||
|
27
|
27
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
| replacement | |||||
|
27
|
27
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
|
28
|
28
52G-83530-01-00 Pilot Light AssyFOR REVERSE |
52G-83530-01-00 |
from US $25.50 |
||
| replacement | |||||
|
28
|
28
52G-83530-10-00 Pilot Light AssyFOR REVERSE |
52G-83530-10-00 |
from US $25.50 |
||
|
29
|
29
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
| replacement | |||||
|
29
|
29
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
|
30
|
30
1UY-83585-00-00 Label |
1UY-83585-00-00 |
US $8.21 |
||
|
31
|
31
1UY-82150-00-00 Fuse Holder Assy |
1UY-82150-00-00 |
from US $35.42 |
||
|
32
|
32
1UY-82151-00-00 Fuse (15A)15A |
1UY-82151-00-00 |
from US $3.40 |
||
|
33
|
33
3GD-82590-40-00 Wire Harness Assy |
3GD-82590-40-00 |
from US $234.87 |
||
|
34
|
34
3HN-82541-00-00 Wire, Lead |
3HN-82541-00-00 |
from US $10.43 |
||
|
35
|
35
3GD-82509-10-00 Wire, Sub Lead |
3GD-82509-10-00 |
from US $5.81 |
||
|
36
|
36
4KD-81940-00-00 Starter Relay Assy (Ms5D-611) |
4KD-81940-00-00 |
from US $97.54 |
||
|
37
|
37
95307-06700-00 Nut |
95307-06700-00 |
from US $1.21 |
||
| replacement | |||||
|
37
|
37
95317-06700-00 Nut(Jn5) |
95317-06700-00 |
from US $1.21 |
||
|
38
|
38
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
39
|
39
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
40
|
40
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
41
|
41
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
42
|
42
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
43
|
43
90890-56001-00 Blank Key (A-Type) |
90890-56001-00 |
from US $4 |
||
|
44
|
44
90890-56002-00 Blank Key (B-Type) |
90890-56002-00 |
from US $3.78 |
||
