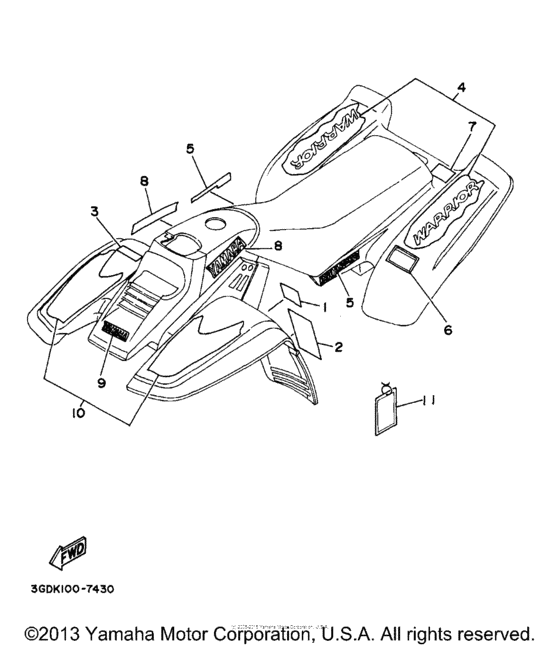

Emblem label (1) Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FA-2415A-00-00
Label, Caution 2
|
3FA-2415A-00-00 |
— | ||
| replacement | |||||
|
1
|
1
3JM-21697-00-00
Label, Caution 2
|
3JM-21697-00-00 |
— | ||
|
2
|
2
3JN-21568-00-00
Label, Warning
|
3JN-21568-00-00 |
— | ||
| replacement | |||||
|
2
|
2
4WU-21568-00-00
Label, Warning
|
4WU-21568-00-00 |
— | ||
|
3
|
3
3GD-2151E-00-00
Label 2
|
3GD-2151E-00-00 |
— | ||
| replacement | |||||
|
3
|
3
3GD-2151E-A0-00
Label 2
|
3GD-2151E-A0-00 |
— | ||
|
4
|
4
3GD-2165A-90-00
Graphic Set, Rear Fender
UR FOR FBL |
3GD-2165A-90-00 |
— | ||
|
4
|
4
3GD-2165A-A0-00
Graphic Set, Rear Fender
UR FOR LRYS1 |
3GD-2165A-A0-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
UR FOR LRYS1 |
999-99999-99-00 |
— | ||
|
5
|
5
3GD-21676-00-00
Emblem Set
UR FOR FBL |
3GD-21676-00-00 |
— | ||
|
5
|
5
3GD-21676-10-00 Emblem SetUR FOR LRYS1 |
3GD-21676-10-00 |
US $19.46 |
||
|
6
|
6
3GD-21696-10-00
Label, Caution
|
3GD-21696-10-00 |
— | ||
|
7
|
7
3JN-2151H-00-00
Label 5
|
3JN-2151H-00-00 |
— | ||
| replacements | |||||
|
7
|
7
4WU-2151H-00-00
Label 5
|
4WU-2151H-00-00 |
— | ||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
99244-00140-00 Emblem, YamahaUR FOR FBL |
99244-00140-00 |
from US $11.76 |
||
|
8
|
8
99247-00100-00 Emblem, YamahaUR FOR LRYS1 |
99247-00100-00 |
from US $10.48 |
||
|
9
|
9
99247-00100-00 Emblem, YamahaUR FOR LRYS1 |
99247-00100-00 |
from US $10.48 |
||
|
9
|
9
992-44001-00-00 Emblem, YamahaUR FOR FBL |
992-44001-00-00 |
from US $8.22 |
||
|
10
|
10
3GD-21570-00-00
Graphic Set, Front Fender
UR FOR FBL |
3GD-21570-00-00 |
— | ||
|
10
|
10
3GD-21570-10-00
Graphic Set, Front Fender
UR FOR LRYS1 |
3GD-21570-10-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
UR FOR LRYS1 |
999-99999-99-00 |
— | ||
|
11
|
11
3JM-2819R-00-00 Tag, Warning |
3JM-2819R-00-00 |
US $44.75 |
||
