Exhaust Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?

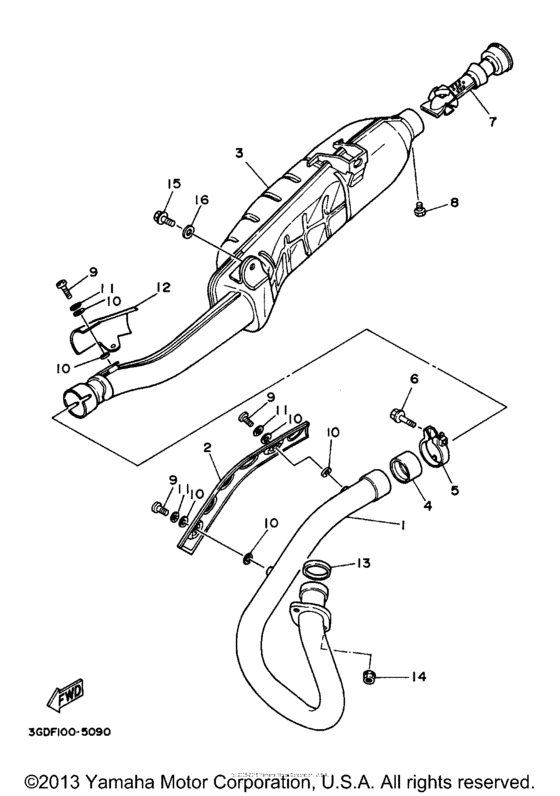

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-14611-02-00 Pipe, Exhaust 1 |
1UY-14611-02-00 |
from US $129.59 |
||
| replacement | |||||
|
1
|
1
1UY-14611-03-00 Pipe, Exhaust 1 |
1UY-14611-03-00 |
US $173.92 |
||
|
2
|
2
1YW-14628-00-00 Protector, Exhaust Pipe |
1YW-14628-00-00 |
US $100.26 |
||
|
3
|
3
1UY-14711-03-00 Muffler 1 |
1UY-14711-03-00 |
from US $506.04 |
||
| replacement | |||||
|
3
|
3
1UY-14711-04-00 Muffler 1 |
1UY-14711-04-00 |
from US $506.04 |
||
|
4
|
4
3YF-14755-00-00 Gasket, Silencer |
3YF-14755-00-00 |
from US $24.09 |
||
|
5
|
5
1UY-14715-00-00
Band, Muffler
|
1UY-14715-00-00 |
— | ||
|
6
|
6
95817-08045-00 Bolt, Flange(Jn5) |
95817-08045-00 |
from US $1.07 |
||
|
7
|
7
21V-14752-00-00 Pipe, Outlet |
21V-14752-00-00 |
from US $85.38 |
||
|
8
|
8
97007-06008-00 Bolt, Hex |
97007-06008-00 |
from US $2.83 |
||
| replacement | |||||
|
8
|
8
97017-06008-00 Bolt |
97017-06008-00 |
from US $2.83 |
||
|
9
|
9
989-07060-10-00 Screw, Binding |
989-07060-10-00 |
from US $1.56 |
||
|
10
|
10
4BD-14766-00-00 Washer, Protector |
4BD-14766-00-00 |
from US $1.70 |
||
|
11
|
11
90206-06090-00 Washer, Wave(3Rw) J |
90206-06090-00 |
from US $1.34 |
||
|
12
|
12
1UY-14718-00-00
Protector, Muffler 1
|
1UY-14718-00-00 |
— | ||
|
13
|
13
3GD-14613-00-00 Gasket, Exhaust Pipe |
3GD-14613-00-00 |
from US $5.96 |
||
|
14
|
14
90179-06668-00 Nut |
90179-06668-00 |
from US $1.34 |
||
|
15
|
15
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
16
|
16
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.66 |
||
| replacement | |||||
|
16
|
16
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
