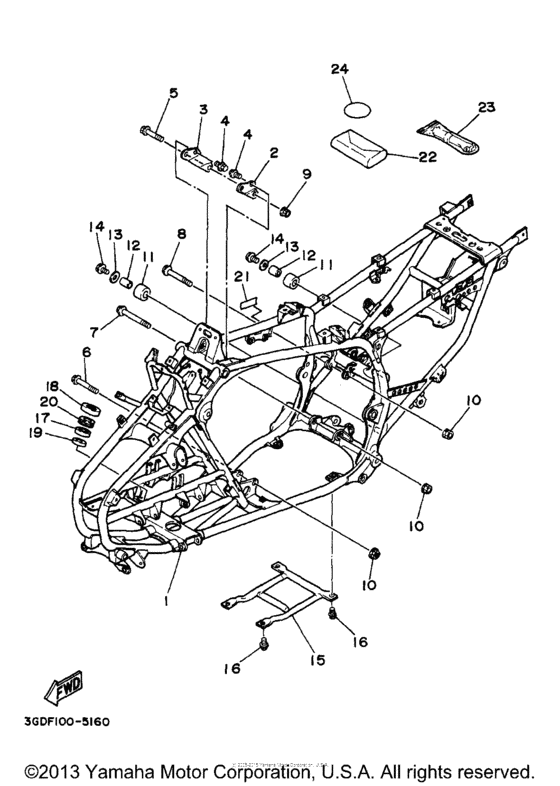

Frame Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GD-21110-21-35 Frame Comp |
3GD-21110-21-35 |
US $1,831.39 |
||
| replacement | |||||
|
1
|
1
3GD-21110-23-P0 Frame Comp |
3GD-21110-23-P0 |
US $1,822.34 |
||
|
2
|
2
1UY-21315-00-00 Stay, Engine 2 |
1UY-21315-00-00 |
from US $23.51 |
||
|
3
|
3
1UY-21316-00-00 Stay, Engine 3 |
1UY-21316-00-00 |
from US $24.79 |
||
|
4
|
4
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
5
|
5
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
6
|
6
90105-10323-00 Bolt, Flange |
90105-10323-00 |
from US $3.26 |
||
|
7
|
7
90105-10409-00 Bolt, Flange |
90105-10409-00 |
from US $7.37 |
||
|
8
|
8
901-05104-80-00 Bolt, Flange |
901-05104-80-00 |
from US $6.52 |
||
|
9
|
9
956-17082-00-00
Nut, Self-Locking
|
956-17082-00-00 |
— | ||
| replacement | |||||
|
9
|
9
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
10
|
10
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
| replacement | |||||
|
10
|
10
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
11
|
11
30X-22178-00-00 Tensioner |
30X-22178-00-00 |
from US $9.60 |
||
|
12
|
12
4V4-22184-00-00 Bush |
4V4-22184-00-00 |
from US $3.26 |
||
|
13
|
13
90201-081R9-00 Washer, Plate |
90201-081R9-00 |
from US $1.98 |
||
|
14
|
14
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
15
|
15
1UY-21471-00-00 Protector, Engine |
1UY-21471-00-00 |
US $145.01 |
||
|
16
|
16
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
17
|
17
93306-20331-00 Bearing |
93306-20331-00 |
from US $19.55 |
||
| replacement | |||||
|
17
|
17
933-06203-48-00 Bearing |
933-06203-48-00 |
from US $16.88 |
||
|
18
|
18
93102-25081-00 Oil Seal |
93102-25081-00 |
from US $3.64 |
||
|
19
|
19
93102-25099-00 Oil Seal |
93102-25099-00 |
from US $6.96 |
||
|
20
|
20
2GU-23872-00-00 Holder, Bearing |
2GU-23872-00-00 |
from US $11.76 |
||
|
21
|
21
1UY-26137-00-00 Label |
1UY-26137-00-00 |
from US $2.35 |
||
|
22
|
22
59V-28100-00-00
Tool Kit (24W-28100-00)
24W-28100-00 |
59V-28100-00-00 |
— | ||
|
23
|
23
1NV-2811A-00-00 Gauge, Air |
1NV-2811A-00-00 |
from US $27.34 |
||
| replacement | |||||
|
23
|
23
1NV-2811A-01-00 Gauge, Air |
1NV-2811A-01-00 |
from US $27.34 |
||
|
24
|
24
93210-41041-00 O-Ring |
93210-41041-00 |
from US $1.70 |
||
