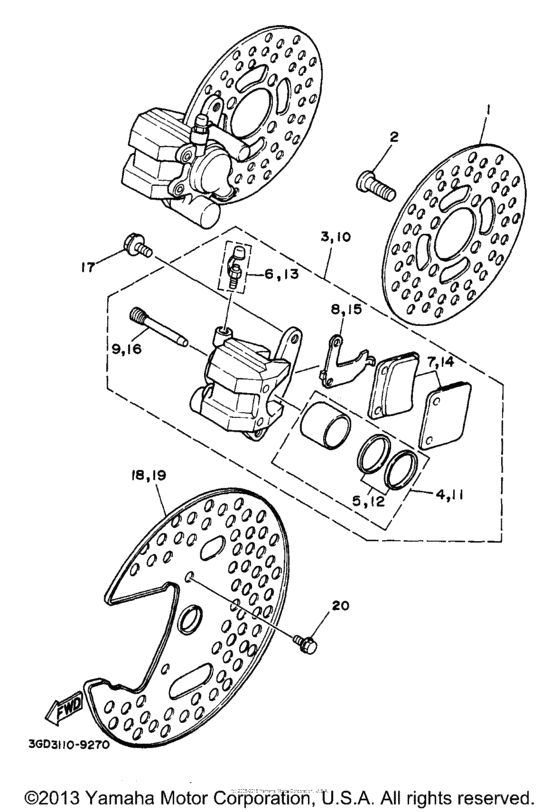

Front brake caliper Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GD-2582T-00-00 Disc, Brake (Left) |
3GD-2582T-00-00 |
from US $166.63 |
||
| replacement | |||||
|
1
|
1
3GD-2582T-10-00 Disc, Brake (Left) |
3GD-2582T-10-00 |
from US $74.40 |
||
|
2
|
2
90149-08268-00 Bolt |
90149-08268-00 |
from US $1.84 |
||
| replacement | |||||
|
2
|
2
901-09080-87-00 Bolt |
901-09080-87-00 |
from US $1.84 |
||
|
3
|
3
3GD-2580T-00-00 Caliper Assy (Left) |
3GD-2580T-00-00 |
from US $276.15 |
||
| replacement | |||||
|
3
|
3
3GD-2580T-01-00 Caliper Assy (Left) |
3GD-2580T-01-00 |
from US $234.40 |
||
|
4
|
4
3GD-W0057-00-00 Piston Assy, Caliper |
3GD-W0057-00-00 |
from US $27.78 |
||
|
5
|
5
3GD-W0047-00-00 Caliper Seal Kit |
3GD-W0047-00-00 |
from US $4.64 |
||
|
6
|
6
36Y-W0048-00-00 Bleed Screw Kit |
36Y-W0048-00-00 |
from US $4.64 |
||
|
7
|
7
3GD-W0045-00-00 Brake Pad Kit |
3GD-W0045-00-00 |
from US $39.48 |
||
| replacement | |||||
|
7
|
7
3GD-W0045-01-00 Brake Pad Kit |
3GD-W0045-01-00 |
from US $41.83 |
||
|
8
|
8
3GD-25827-00-00 Shim, Caliper |
3GD-25827-00-00 |
from US $4.68 |
||
|
9
|
9
3GD-25933-00-00 Pin, Pad |
3GD-25933-00-00 |
from US $8.28 |
||
|
10
|
10
3GD-2580U-00-00 Caliper Assy (Right) |
3GD-2580U-00-00 |
from US $295.66 |
||
| replacement | |||||
|
10
|
10
3GD-2580U-01-00 Caliper Assy (Right) |
3GD-2580U-01-00 |
from US $245.98 |
||
|
11
|
11
3GD-W0057-00-00 Piston Assy, Caliper |
3GD-W0057-00-00 |
from US $27.78 |
||
|
12
|
12
3GD-W0047-00-00 Caliper Seal Kit |
3GD-W0047-00-00 |
from US $4.64 |
||
|
13
|
13
36Y-W0048-00-00 Bleed Screw Kit |
36Y-W0048-00-00 |
from US $4.64 |
||
|
14
|
14
3GD-W0045-00-00 Brake Pad Kit |
3GD-W0045-00-00 |
from US $39.48 |
||
| replacement | |||||
|
14
|
14
3GD-W0045-01-00 Brake Pad Kit |
3GD-W0045-01-00 |
from US $41.83 |
||
|
15
|
15
3GD-25828-00-00 Shim, Caliper |
3GD-25828-00-00 |
from US $4.53 |
||
|
16
|
16
3GD-25933-00-00 Pin, Pad |
3GD-25933-00-00 |
from US $8.28 |
||
|
17
|
17
90105-08538-00 Bolt, Flange |
90105-08538-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.34 |
||
|
18
|
18
3GD-2514A-10-00 Ring, Wheel 1LEFT |
3GD-2514A-10-00 |
from US $31.74 |
||
|
19
|
19
3GD-2515A-10-00 Ring, Wheel 2RIGHT |
3GD-2515A-10-00 |
from US $34.85 |
||
|
20
|
20
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
