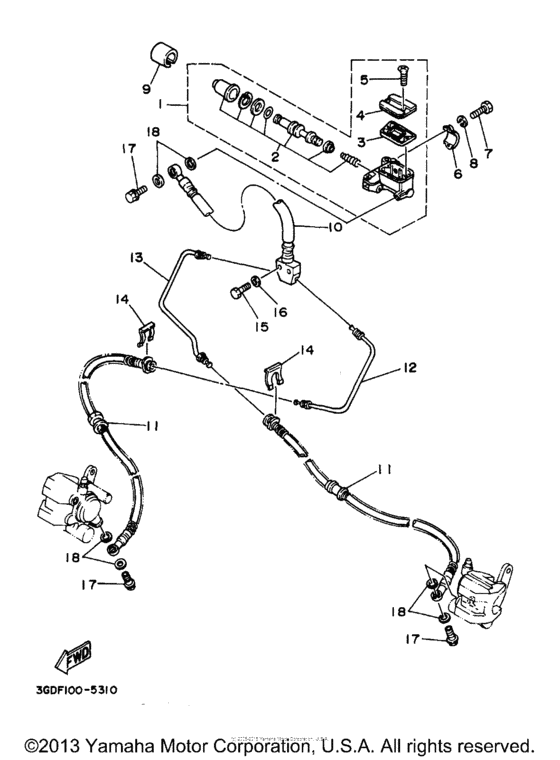

Front master cylinder Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GU-25850-00-00 Master Cyl. Assy |
2GU-25850-00-00 |
from US $226.58 |
||
| replacement | |||||
|
1
|
1
2GU-25870-10-00 Master Cylinder Sub Assy |
2GU-25870-10-00 |
from US $164.94 |
||
|
2
|
2
4H7-W0041-50-00 Cylinder Kit, Master |
4H7-W0041-50-00 |
from US $49.18 |
||
|
3
|
3
4L0-25854-00-00 Gasket, Diaphragm |
4L0-25854-00-00 |
from US $15.58 |
||
|
4
|
4
4H7-25852-00-00 Cap, Reservoir |
4H7-25852-00-00 |
from US $22.10 |
||
|
5
|
5
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.34 |
||
|
6
|
6
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
7
|
7
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
8
|
8
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
9
|
9
1UY-26259-00-00 Collar |
1UY-26259-00-00 |
from US $1.70 |
||
|
10
|
10
3GD-25872-02-00 Hose, Brake 1 |
3GD-25872-02-00 |
US $119.88 |
||
|
11
|
11
3GD-25873-02-00
Hose, Brake 2
|
3GD-25873-02-00 |
— | ||
| replacement | |||||
|
11
|
11
3GD-25873-03-00
Hose, Brake 2
|
3GD-25873-03-00 |
— | ||
|
12
|
12
3GD-25871-00-00
Pipe, Brake
|
3GD-25871-00-00 |
— | ||
|
13
|
13
3GD-25882-00-00 Pipe, Brake 2 |
3GD-25882-00-00 |
from US $9.40 |
||
|
14
|
14
2GU-25866-00-00 Circlip |
2GU-25866-00-00 |
from US $4.53 |
||
|
15
|
15
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
|
16
|
16
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.21 |
||
|
17
|
17
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
18
|
18
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.28 |
||
| replacement | |||||
|
18
|
18
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.28 |
||
