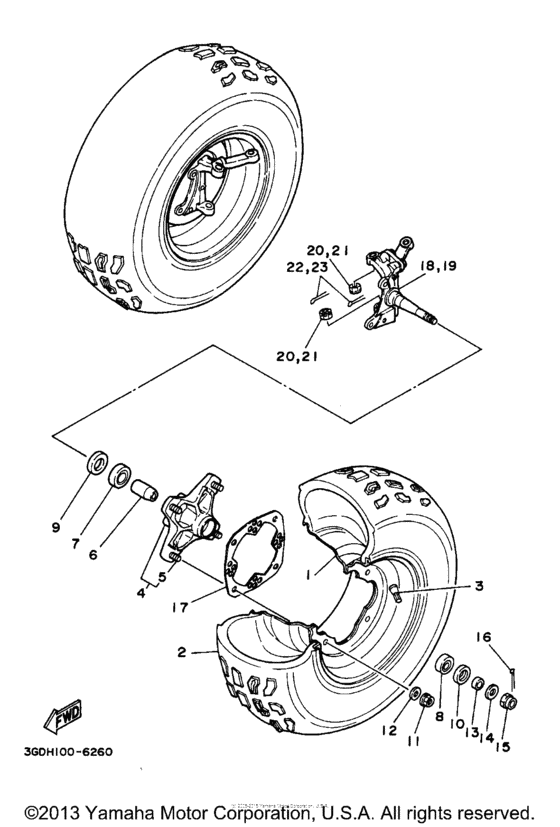

Front wheel Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2XK-25180-01-HM Front Wheel Comp |
2XK-25180-01-HM |
from US $266.90 |
||
| replacement | |||||
|
1
|
1
2XK-25180-12-YY
Wheel Comp
|
2XK-25180-12-YY |
— | ||
|
2
|
2
94107-102Y4-00
Tire (At22X7-10 Kt701)
|
94107-102Y4-00 |
— | ||
| replacement | |||||
|
2
|
2
5NF-2510K-09-00 Tire Dun 22X7-10 Kt701 |
5NF-2510K-09-00 |
from US $179.28 |
||
|
3
|
3
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
4
|
4
3GD-25111-01-00 Hub, Front |
3GD-25111-01-00 |
US $282.92 |
||
|
5
|
5
90114-10007-00 Bolt, Serration |
90114-10007-00 |
from US $5.67 |
||
|
6
|
6
1UY-25117-00-00 Spacer, Bearing |
1UY-25117-00-00 |
from US $15.44 |
||
|
7
|
7
93306-00438-00 Bearing |
93306-00438-00 |
from US $11.58 |
||
|
8
|
8
933-06202-04-00 Bearing |
933-06202-04-00 |
from US $9.92 |
||
|
9
|
9
93105-26026-00 Oil Seal |
93105-26026-00 |
from US $5.96 |
||
|
10
|
10
93102-22216-00 Oil Seal |
93102-22216-00 |
from US $6.80 |
||
|
11
|
11
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.21 |
||
| replacement | |||||
|
11
|
11
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
12
|
12
92907-10200-00 Washer, Plain |
92907-10200-00 |
from US $0.90 |
||
|
13
|
13
90387-150R1-00 Collar |
90387-150R1-00 |
from US $2.69 |
||
|
14
|
14
90201-14220-00 Washer Plate 248181370000 |
90201-14220-00 |
from US $1.56 |
||
|
15
|
15
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $6.96 |
||
|
16
|
16
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
17
|
17
3GD-25127-10-00
Cover, Plate
|
3GD-25127-10-00 |
— | ||
|
18
|
18
3GD-23501-00-00 Steering Knuckle Assy (Left) |
3GD-23501-00-00 |
from US $284.61 |
||
| replacement | |||||
|
18
|
18
3GD-23501-10-00 Steering Knuckle Assy (Left) |
3GD-23501-10-00 |
from US $284.61 |
||
|
19
|
19
3GD-23502-00-00 Steering Knuckle Assy (Right) |
3GD-23502-00-00 |
from US $284.61 |
||
| replacement | |||||
|
19
|
19
3GD-23502-10-00 Steering Knuckle Assy (Right) |
3GD-23502-10-00 |
from US $284.61 |
||
|
20
|
20
90171-10046-00 Nut, Castle(1Uy) |
90171-10046-00 |
from US $1.84 |
||
| replacement | |||||
|
20
|
20
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $1.66 |
||
|
21
|
21
90171-10046-00 Nut, Castle(1Uy) |
90171-10046-00 |
from US $1.84 |
||
| replacement | |||||
|
21
|
21
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $1.66 |
||
|
22
|
22
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
23
|
23
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
