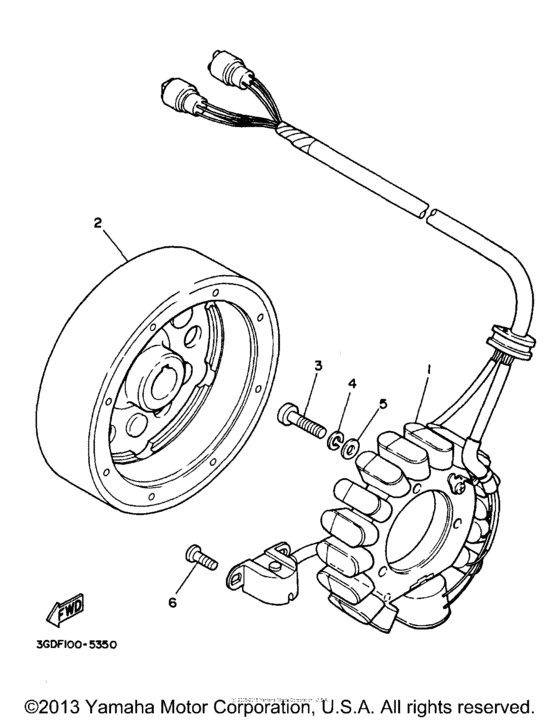

Generator Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3HN-85510-10-00 Stator Assy |
3HN-85510-10-00 |
from US $881.76 |
||
|
2
|
2
3HN-85550-00-00 Rotor Assy |
3HN-85550-00-00 |
from US $543.08 |
||
| replacement | |||||
|
2
|
2
3HN-85550-01-00 Rotor Assy |
3HN-85550-01-00 |
from US $543.08 |
||
|
3
|
3
98517-06030-00 Screw, Pan Head |
98517-06030-00 |
from US $1.34 |
||
|
4
|
4
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
5
|
5
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
6
|
6
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.34 |
||
