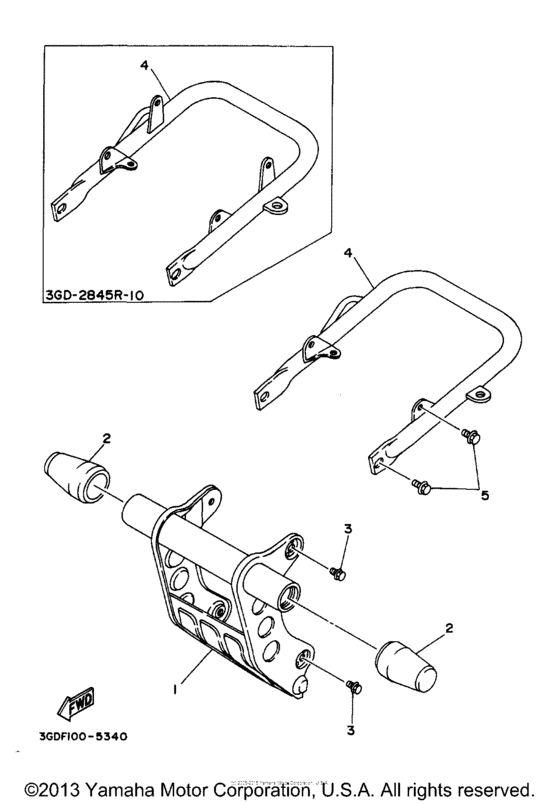

Guard Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GD-2845N-00-35
Bar, Carry Front
|
3GD-2845N-00-35 |
— | ||
| replacement | |||||
|
1
|
1
3GD-2845N-00-P0 Bar, Carry Front |
3GD-2845N-00-P0 |
US $319.88 |
||
|
2
|
2
1UY-28415-00-00 Damper 1 |
1UY-28415-00-00 |
from US $8.28 |
||
|
3
|
3
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
4
|
4
3GD-2845R-00-00
Bar, Carry Rear
UR |
3GD-2845R-00-00 |
— | ||
| replacement | |||||
|
4
|
4
3GD-2845R-10-00
Bar, Carry Rear
UR |
3GD-2845R-10-00 |
— | ||
|
5
|
5
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
