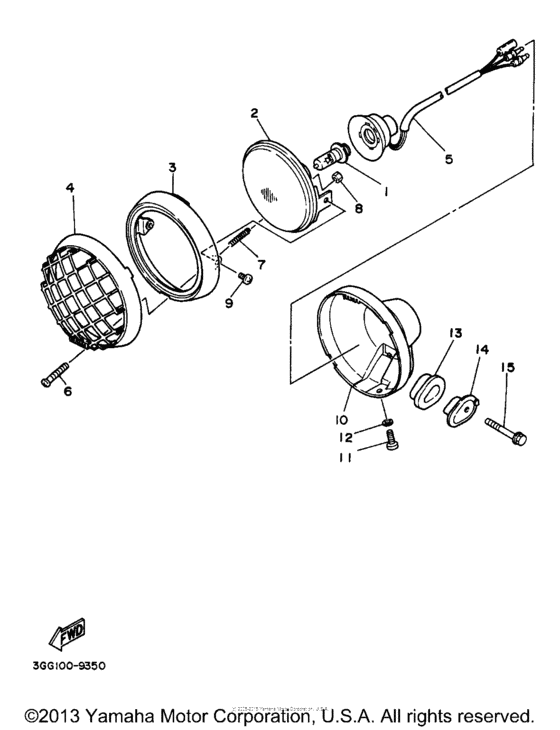

Headlight Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4KB-84314-00-00 Bulb (12V-30/30W)12V-30/30W |
4KB-84314-00-00 |
from US $25.36 |
||
| replacement | |||||
|
1
|
1
4KB-84314-01-00 Bulb (12V-30/30W)12V-30/30W |
4KB-84314-01-00 |
from US $20.84 |
||
|
2
|
2
2GU-84320-00-00
Lens Assy
|
2GU-84320-00-00 |
— | ||
| replacement | |||||
|
2
|
2
4SH-84320-00-00
Lens Assy
|
4SH-84320-00-00 |
— | ||
|
3
|
3
2GU-84315-00-00
Rim, Head Light
|
2GU-84315-00-00 |
— | ||
|
4
|
4
2GU-84159-00-00 Cord, Headlight |
2GU-84159-00-00 |
from US $27.20 |
||
|
5
|
5
4KB-84340-00-00 Socket Cord Assy 1 |
4KB-84340-00-00 |
US $49.23 |
||
| replacement | |||||
|
5
|
5
4SH-84340-00-00 Socket Cord Assy 1 |
4SH-84340-00-00 |
US $49.23 |
||
|
6
|
6
2GU-84331-00-00 Screw, Pan Head |
2GU-84331-00-00 |
from US $2.12 |
||
| replacement | |||||
|
6
|
6
98507-03540-00 Screw, Pan Head |
98507-03540-00 |
from US $1.34 |
||
|
7
|
7
2GU-84332-00-00 Spring, Screw |
2GU-84332-00-00 |
from US $1.66 |
||
|
8
|
8
2GU-84334-00-00 Nut, Adjusting |
2GU-84334-00-00 |
from US $1.66 |
||
|
9
|
9
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
10
|
10
2GU-84330-70-00 Body Assy |
2GU-84330-70-00 |
from US $26.78 |
||
|
11
|
11
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
12
|
12
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
13
|
13
3GD-84345-00-00 Damper, Headlight |
3GD-84345-00-00 |
from US $2.50 |
||
| replacement | |||||
|
13
|
13
2GU-84345-00-00 Damper, Headlight |
2GU-84345-00-00 |
from US $2.55 |
||
|
14
|
14
2GU-84338-00-00 Collar, Body Fitting |
2GU-84338-00-00 |
from US $7.94 |
||
|
15
|
15
95807-08055-00 Bolt, Flange |
95807-08055-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
