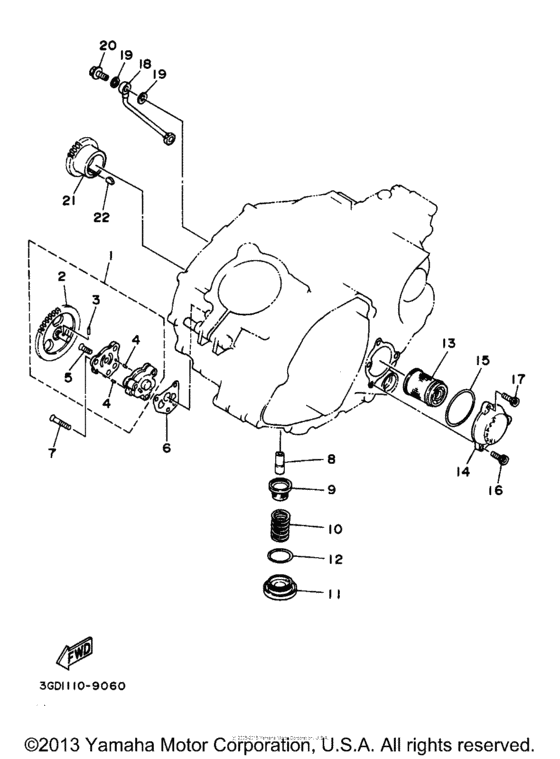

Oil pump Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-13300-00-00 Oil Pump Assy |
1UY-13300-00-00 |
from US $87.73 |
||
|
2
|
2
1UY-13326-00-00 Gear, Pump Driven 2 |
1UY-13326-00-00 |
from US $18.70 |
||
|
3
|
3
93603-12030-00 Pin, Dowel |
93603-12030-00 |
from US $1.66 |
||
|
4
|
4
93603-07073-00 Pin, Dowel |
93603-07073-00 |
from US $1.34 |
||
|
5
|
5
90151-06010-00 Screw, Countersunk |
90151-06010-00 |
from US $1.70 |
||
| replacement | |||||
|
5
|
5
901-51060-05-00 Screw, Countersunk |
901-51060-05-00 |
from US $1.70 |
||
|
6
|
6
3GD-13329-00-00 Gasket, Pump Cover |
3GD-13329-00-00 |
from US $1.34 |
||
|
7
|
7
98707-06030-00 Screw, Flat Head |
98707-06030-00 |
from US $1.56 |
||
|
8
|
8
2XK-13416-00-00 Pipe, Oil 1 |
2XK-13416-00-00 |
from US $4.39 |
||
|
9
|
9
51Y-13411-00-00 Strainer, Oil |
51Y-13411-00-00 |
from US $6.96 |
||
| replacement | |||||
|
9
|
9
5YP-E3411-00-00 Strainer, Oil |
5YP-E3411-00-00 |
from US $2.55 |
||
|
10
|
10
90501-18576-00 Spring, Compression |
90501-18576-00 |
from US $1.34 |
||
|
11
|
11
30X-15351-00-00
Plug, Drain
|
30X-15351-00-00 |
— | ||
| replacement | |||||
|
11
|
11
4HC-15351-00-00 Plug, Drain |
4HC-15351-00-00 |
from US $11.58 |
||
|
12
|
12
932-10355-12-00 O-Ring |
932-10355-12-00 |
from US $6.30 |
||
|
13
|
13
1UY-13440-02-00 Element Assy, Oil Cleaner |
1UY-13440-02-00 |
from US $10.20 |
||
|
14
|
14
3GD-13447-00-00 Cover, Oil Element |
3GD-13447-00-00 |
from US $21.50 |
||
|
15
|
15
932-10541-75-00 O-Ring |
932-10541-75-00 |
from US $3.64 |
||
|
16
|
16
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
17
|
17
901-10061-36-00
Bolt
|
901-10061-36-00 |
— | ||
| replacement | |||||
|
17
|
17
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
18
|
18
1UY-13161-00-00 Pipe, Delivery 1 |
1UY-13161-00-00 |
from US $45.23 |
||
| replacement | |||||
|
18
|
18
1UY-13161-01-00 Pipe, Delivery 1 |
1UY-13161-01-00 |
from US $48.73 |
||
|
19
|
19
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.28 |
||
|
20
|
20
90401-08117-00 Bolt, Union |
90401-08117-00 |
from US $4.68 |
||
| replacement | |||||
|
20
|
20
90401-08004-00 Bolt, Union |
90401-08004-00 |
from US $5.38 |
||
|
21
|
21
1UY-13324-00-00 Gear, Pump Drive |
1UY-13324-00-00 |
from US $42.42 |
||
|
22
|
22
902-80160-53-00
Key, Woodruff(3Tb)
|
902-80160-53-00 |
— | ||
| replacement | |||||
|
22
|
22
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.35 |
||
