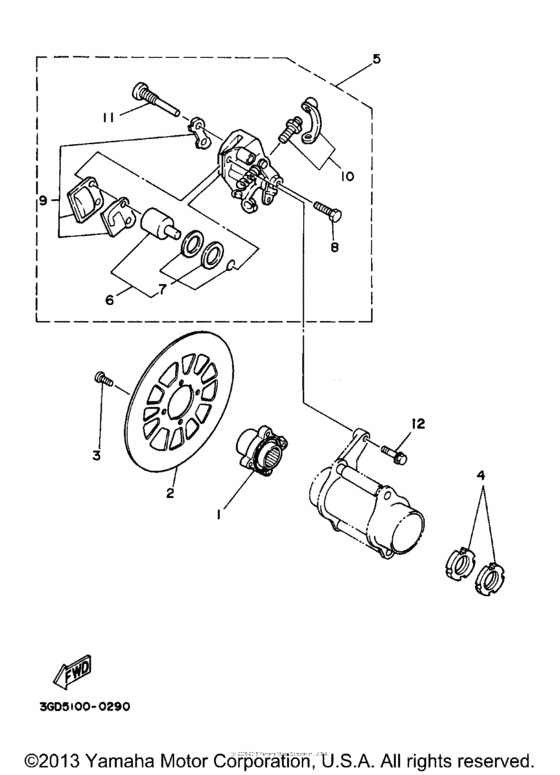

Rear brake caliper Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2XK-25712-00-00
Bracket, Disc
|
2XK-25712-00-00 |
— | ||
|
2
|
2
3GD-2582W-00-00 Disc, Rear Brake 2 |
3GD-2582W-00-00 |
from US $207.24 |
||
|
3
|
3
90109-081F0-00 Bolt |
90109-081F0-00 |
from US $2.27 |
||
| replacements | |||||
|
3
|
3
90109-08789-00 Bolt (34L) |
90109-08789-00 |
from US $2.27 |
||
|
3
|
3
901-11080-53-00 Bolt,hex. Socket Button |
901-11080-53-00 |
from US $1.77 |
||
|
4
|
4
90170-38377-00
Nut
|
90170-38377-00 |
— | ||
|
5
|
5
1UY-2580W-00-00 Caliper Assy, Rear 2 |
1UY-2580W-00-00 |
from US $624.13 |
||
| replacements | |||||
|
5
|
5
1UY-2580W-01-00 Caliper Assy, Rear 2 |
1UY-2580W-01-00 |
from US $491.29 |
||
|
5
|
5
1UY-2580W-02-00 Caliper Assy, Rear 2 |
1UY-2580W-02-00 |
US $745.63 |
||
|
6
|
6
1UY-W0057-50-00 Piston Assy, Caliper |
1UY-W0057-50-00 |
from US $76.13 |
||
|
7
|
7
1UY-W0047-50-00 Caliper Seal Kit |
1UY-W0047-50-00 |
from US $19.30 |
||
|
8
|
8
1UY-25972-51-00 Adjustbolt |
1UY-25972-51-00 |
from US $15.05 |
||
|
9
|
9
1UY-W0046-00-00 Brake Pad Kit 2 |
1UY-W0046-00-00 |
from US $58.10 |
||
| replacement | |||||
|
9
|
9
1UY-W0046-01-00 BRAKE PAD KIT 2 |
1UY-W0046-01-00 |
from US $54.74 |
||
|
10
|
10
36Y-W0048-00-00 Bleed Screw Kit |
36Y-W0048-00-00 |
from US $4.64 |
||
|
11
|
11
1UY-25924-51-00 Pin, Pad |
1UY-25924-51-00 |
from US $10.48 |
||
|
12
|
12
90105-08440-00 Bolt, Flange |
90105-08440-00 |
from US $1.98 |
||
