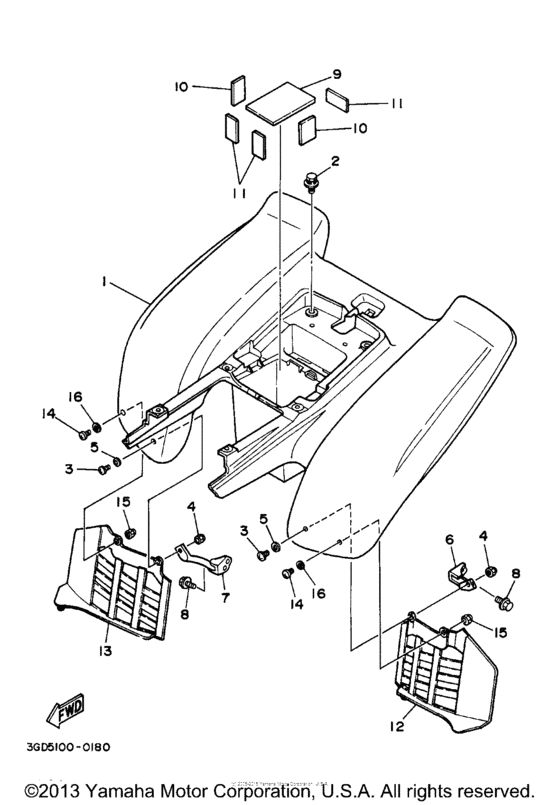

Rear fender Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GD-W2161-90-00
Rear Fender Comp. (Fbl)
UR * |
3GD-W2161-90-00 |
— | ||
| replacement | |||||
|
1
|
1
3GD-W2161-92-00
REAR FENDER WHITE
UR * |
3GD-W2161-92-00 |
— | ||
|
1
|
1
3GD-W2161-A0-00
Rear Fender Comp. (Lrys1)
UR * |
3GD-W2161-A0-00 |
— | ||
| replacement | |||||
|
1
|
1
3GD-W2161-A2-00
Rear Fender Comp
UR * |
3GD-W2161-A2-00 |
— | ||
|
2
|
2
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
2
|
2
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
2
|
2
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
3
|
3
90150-06037-00 Screw, Round Head(3Jm) |
90150-06037-00 |
from US $1.66 |
||
|
4
|
4
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
5
|
5
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
|
6
|
6
1UY-21613-00-00 Stay, Fender 1 |
1UY-21613-00-00 |
from US $17.71 |
||
|
7
|
7
1UY-21614-00-00 Stay, Fender 2 |
1UY-21614-00-00 |
from US $17.85 |
||
|
8
|
8
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
9
|
9
1UY-21639-00-00 Damper 2 |
1UY-21639-00-00 |
from US $3.40 |
||
|
10
|
10
1UY-21638-00-00 Damper 1 |
1UY-21638-00-00 |
from US $2.98 |
||
|
11
|
11
1UY-21638-00-00 Damper 1 |
1UY-21638-00-00 |
from US $2.98 |
||
|
12
|
12
3GD-21691-00-00 Flap |
3GD-21691-00-00 |
US $82.60 |
||
|
13
|
13
3GD-21621-00-00
Flap
|
3GD-21621-00-00 |
— | ||
|
14
|
14
90149-06306-00 Screw |
90149-06306-00 |
from US $2 |
||
|
15
|
15
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
16
|
16
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
