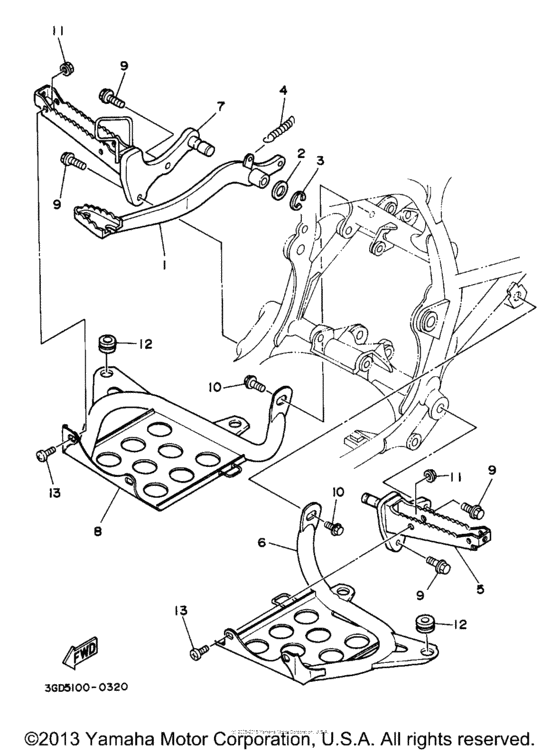

Stand & Footrest Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GD-27211-30-00
Pedal, Brake
|
3GD-27211-30-00 |
— | ||
|
2
|
2
90201-15797-00 Washer, Plate (3X3) |
90201-15797-00 |
from US $1.66 |
||
|
3
|
3
93430-12008-00 Circlip |
93430-12008-00 |
from US $1.34 |
||
|
4
|
4
90506-20380-00 Spring, Tension(1Fn) |
90506-20380-00 |
from US $4.35 |
||
|
5
|
5
3GD-27411-01-00 Footrest 1 |
3GD-27411-01-00 |
US $99.77 |
||
|
6
|
6
3GD-27445-00-00
Plate 1
|
3GD-27445-00-00 |
— | ||
|
7
|
7
3GD-27421-11-00 Footrest 2 |
3GD-27421-11-00 |
US $99.77 |
||
|
8
|
8
3GD-27446-00-00 Plate 2 |
3GD-27446-00-00 |
US $269.73 |
||
|
9
|
9
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.07 |
||
|
10
|
10
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
11
|
11
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
11
|
11
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
12
|
12
90480-18411-00 Grommet |
90480-18411-00 |
from US $1.70 |
||
|
13
|
13
92017-08016-00 Bolt, Button |
92017-08016-00 |
from US $1.56 |
||
