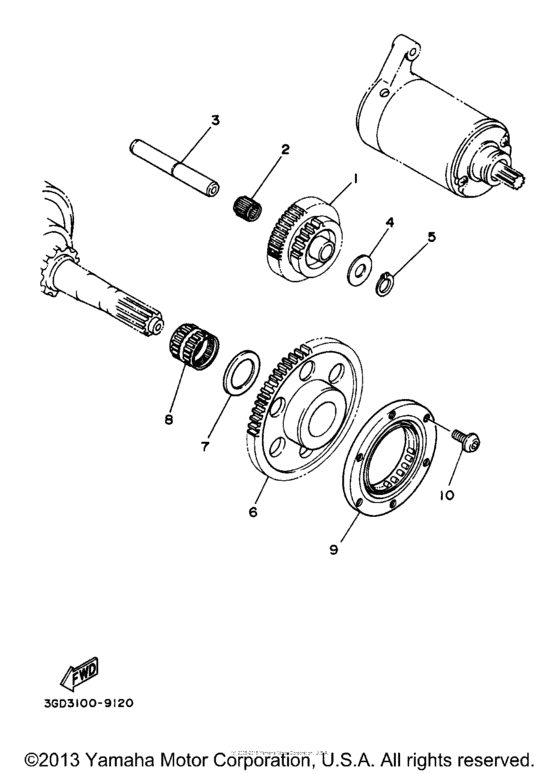

Starter clutch Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-15512-00-00 Gear, Idler 1 |
1UY-15512-00-00 |
from US $74.33 |
||
|
2
|
2
93310-212L6-00 Bearing |
93310-212L6-00 |
from US $11.90 |
||
|
3
|
3
1UY-15521-02-00 Shaft 1 |
1UY-15521-02-00 |
from US $10.34 |
||
|
4
|
4
90201-123K4-00 Washer, Plate |
90201-123K4-00 |
from US $1.34 |
||
|
5
|
5
99009-12400-00 Circlip |
99009-12400-00 |
from US $1.56 |
||
|
6
|
6
1UY-15517-00-00 Gear, Idler 2 (65T)65T |
1UY-15517-00-00 |
from US $135.95 |
||
| replacement | |||||
|
6
|
6
1UY-15517-01-00 Gear, Idler 265T |
1UY-15517-01-00 |
from US $135.95 |
||
|
7
|
7
90201-25291-00 Washer, Plate |
90201-25291-00 |
from US $1.56 |
||
|
8
|
8
93310-225N0-00 Bearing |
93310-225N0-00 |
from US $24.51 |
||
|
9
|
9
1UY-15590-00-00
Starter One-Way Assy
|
1UY-15590-00-00 |
— | ||
| replacements | |||||
|
9
|
9
1UY-15590-01-00
Starter One-Way Assy
|
1UY-15590-01-00 |
— | ||
|
9
|
9
5KM-15590-00-00 Starter One-Way Assy |
5KM-15590-00-00 |
from US $137.33 |
||
|
10
|
10
92017-08016-00 Bolt, Button |
92017-08016-00 |
from US $1.56 |
||
