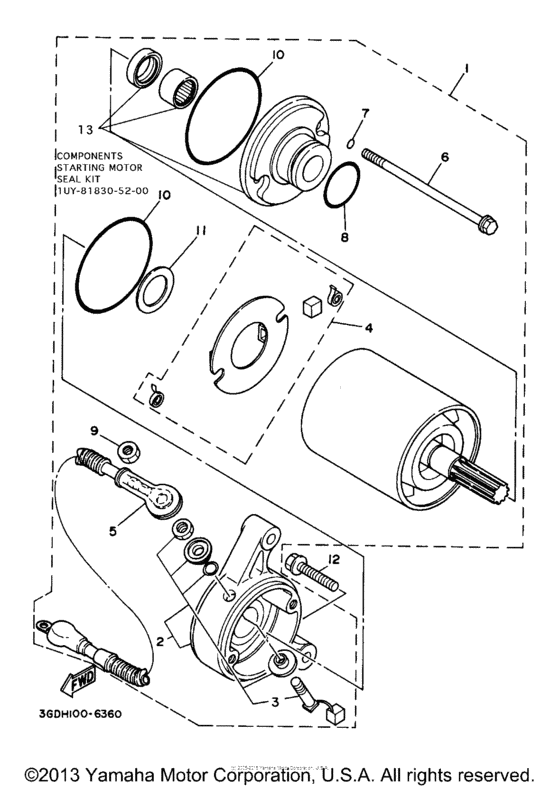

Starting motor Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-81800-51-00 Motor Assy |
1UY-81800-51-00 |
from US $556.49 |
||
| replacement | |||||
|
1
|
1
1UY-81890-00-00 Starting Motor Unit |
1UY-81890-00-00 |
from US $584.76 |
||
|
2
|
2
1UY-81820-51-00 Rear Bracket Assy |
1UY-81820-51-00 |
from US $70.79 |
||
|
3
|
3
1UY-81818-50-00 Brush And Bolt |
1UY-81818-50-00 |
from US $24.09 |
||
|
4
|
4
8L6-81840-50-00 Brush Holder Assy |
8L6-81840-50-00 |
from US $98.09 |
||
| replacement | |||||
|
4
|
4
8L6-81840-51-00 BRUSH HOLDER ASSY |
8L6-81840-51-00 |
from US $92.77 |
||
|
5
|
5
1YW-81815-50-00 Cord, Starter Motor |
1YW-81815-50-00 |
US $92.81 |
||
| replacement | |||||
|
5
|
5
4SH-81815-00-00 Cord, Starter Motor |
4SH-81815-00-00 |
US $92.81 |
||
|
6
|
6
3GD-81826-00-00 Bolt, Through |
3GD-81826-00-00 |
from US $11.76 |
||
|
7
|
7
8L6-81847-50-00 O-Ring |
8L6-81847-50-00 |
from US $3.97 |
||
|
8
|
8
1UY-81847-50-00
O-Ring
|
1UY-81847-50-00 |
— | ||
| replacement | |||||
|
8
|
8
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $2.32 |
||
|
9
|
9
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
10
|
10
4H7-81844-00-00 O-Ring |
4H7-81844-00-00 |
from US $18.99 |
||
|
11
|
11
4H7-81843-50-00 Washer 1 |
4H7-81843-50-00 |
from US $2.83 |
||
|
12
|
12
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.34 |
||
|
13
|
13
1UY-81830-52-00 Starter Motor Seal Kit |
1UY-81830-52-00 |
from US $149.16 |
||
