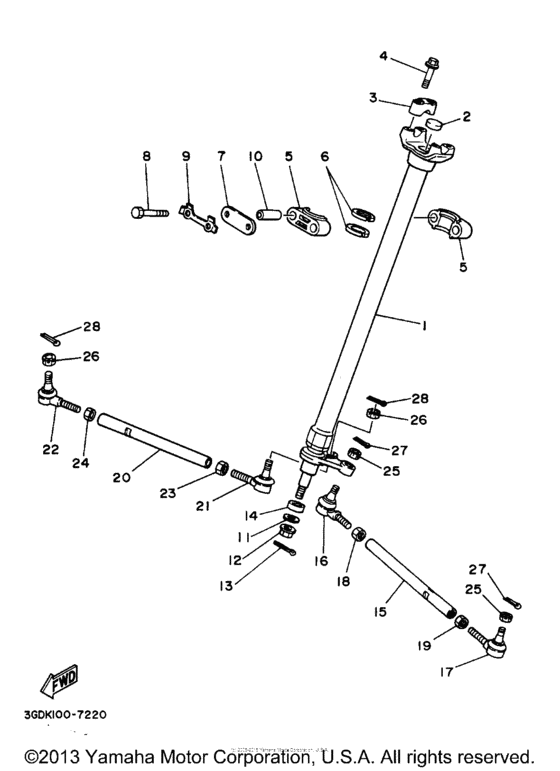

Steering Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GD-23813-11-00 Column, Steering 2 |
3GD-23813-11-00 |
from US $229.48 |
||
| replacement | |||||
|
1
|
1
3GD-23813-20-00 Column, Steering 2 |
3GD-23813-20-00 |
from US $229.48 |
||
|
2
|
2
90336-28053-00 Plug, Taper |
90336-28053-00 |
from US $1.65 |
||
|
3
|
3
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-01E6-23441-0 |
1E6-23441-00-00 |
from US $20.97 |
||
|
4
|
4
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.07 |
||
|
5
|
5
1UY-23812-00-00 Bearing, Steering |
1UY-23812-00-00 |
from US $6.80 |
||
|
6
|
6
93112-31011-00 Oil Seal |
93112-31011-00 |
from US $2.98 |
||
|
7
|
7
3GD-23868-01-00 Bracket, Steering Lower |
3GD-23868-01-00 |
from US $11.62 |
||
|
8
|
8
97017-08060-00 Bolt |
97017-08060-00 |
from US $2.41 |
||
|
9
|
9
1UY-23894-01-00 Washer, Lock 1 |
1UY-23894-01-00 |
from US $1.70 |
||
|
10
|
10
903-87106-T4-00 Collar (903-87090-R0-00)903-87090-R0-00 |
903-87106-T4-00 |
from US $13.77 |
||
|
11
|
11
90201-10774-00 Washer, Plate (3L6) |
90201-10774-00 |
from US $1.35 |
||
|
12
|
12
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
13
|
13
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
14
|
14
90387-176R6-00 Collar |
90387-176R6-00 |
from US $4.96 |
||
|
15
|
15
3GD-23831-00-00 Rod, Tie |
3GD-23831-00-00 |
from US $16.43 |
||
|
16
|
16
1UY-23841-01-00 Joint, Universal 1 |
1UY-23841-01-00 |
from US $48.36 |
||
|
17
|
17
1UY-23845-01-00 Joint, Universal 2 |
1UY-23845-01-00 |
from US $53.56 |
||
|
18
|
18
95307-10700-00 Nut (95307-10700-00 )95307-10700-00 |
95307-10700-00 |
from US $2.41 |
||
| replacement | |||||
|
18
|
18
95317-10700-00 Nut95307-10700-00 |
95317-10700-00 |
from US $2.41 |
||
|
19
|
19
90170-10186-00 Nut, Hexagon (8A5) |
90170-10186-00 |
from US $1.28 |
||
|
20
|
20
3GD-23831-00-00 Rod, Tie |
3GD-23831-00-00 |
from US $16.43 |
||
|
21
|
21
1UY-23841-01-00 Joint, Universal 1 |
1UY-23841-01-00 |
from US $48.36 |
||
|
22
|
22
1UY-23845-01-00 Joint, Universal 2 |
1UY-23845-01-00 |
from US $53.56 |
||
|
23
|
23
95307-10700-00 Nut (95307-10700-00 )95307-10700-00 |
95307-10700-00 |
from US $2.41 |
||
| replacement | |||||
|
23
|
23
95317-10700-00 Nut95307-10700-00 |
95317-10700-00 |
from US $2.41 |
||
|
24
|
24
90170-10186-00 Nut, Hexagon (8A5) |
90170-10186-00 |
from US $1.28 |
||
|
25
|
25
90171-10046-00 Nut, Castle(1Uy) |
90171-10046-00 |
from US $1.84 |
||
| replacement | |||||
|
25
|
25
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $1.66 |
||
|
26
|
26
90171-10046-00 Nut, Castle(1Uy) |
90171-10046-00 |
from US $1.84 |
||
| replacement | |||||
|
26
|
26
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $1.66 |
||
|
27
|
27
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
28
|
28
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
