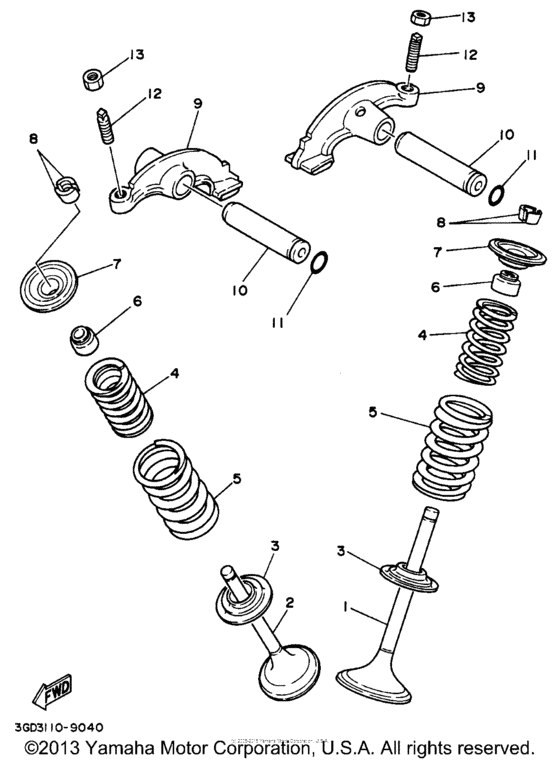

Valve Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-12111-01-00 Valve, Intake |
1UY-12111-01-00 |
from US $59.52 |
||
|
2
|
2
1UY-12121-01-00 Valve, Exhaust |
1UY-12121-01-00 |
from US $63.48 |
||
|
3
|
3
3Y1-12116-00-00 Seat, Valve Spring |
3Y1-12116-00-00 |
from US $2.98 |
||
|
4
|
4
1UY-12113-01-00 Spring, Valve Inner |
1UY-12113-01-00 |
from US $6.04 |
||
|
5
|
5
1UY-12114-01-00 Spring, Valve Outer |
1UY-12114-01-00 |
from US $8.93 |
||
|
6
|
6
1J7-12119-01-00 Seal, Valve Stem |
1J7-12119-01-00 |
from US $6.96 |
||
|
7
|
7
3Y1-12117-01-00 Retainer, Valve Spring |
3Y1-12117-01-00 |
from US $3.98 |
||
|
8
|
8
1J7-12118-00-00 Lock, Valve Spring Retainer |
1J7-12118-00-00 |
from US $2 |
||
|
9
|
9
3GD-12151-00-00 Arm, Valve Rocker |
3GD-12151-00-00 |
from US $47.39 |
||
|
10
|
10
3Y1-12156-00-00 Shaft, Rocker 2 |
3Y1-12156-00-00 |
from US $18.56 |
||
|
11
|
11
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.35 |
||
| replacement | |||||
|
11
|
11
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.28 |
||
|
12
|
12
31G-12159-02-00 Screw, Valve Adjusting |
31G-12159-02-00 |
from US $8.08 |
||
|
13
|
13
31G-12158-00-00 Nut, Lock |
31G-12158-00-00 |
from US $1.66 |
||
