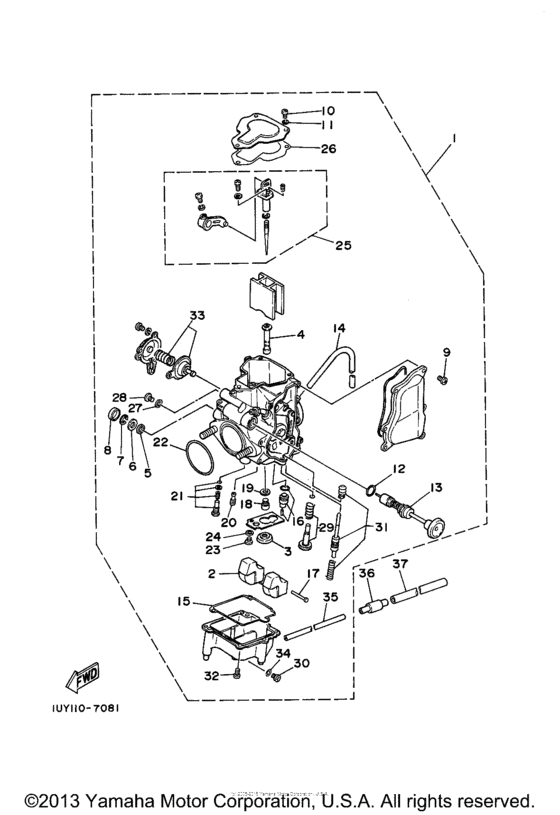

Carburetor Diagram Yamaha WARRIOR 350
- Model code
- YFM350XT
- Engine Capacity
- 348
- Year
- 1987
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-14101-00-00
Carburetor Assembly 1
|
1UY-14101-00-00 |
— | ||
|
2
|
2
1UY-14185-00-00 Float |
1UY-14185-00-00 |
from US $45.04 |
||
|
3
|
3
5V7-14153-00-00 Washer, Main Jet |
5V7-14153-00-00 |
from US $9.92 |
||
|
4
|
4
1UY-14141-36-00 Nozzle, Main |
1UY-14141-36-00 |
from US $30.24 |
||
|
5
|
5
2A2-14997-00-00 Seal |
2A2-14997-00-00 |
from US $10.40 |
||
|
6
|
6
22F-14126-00-00 Gasket |
22F-14126-00-00 |
from US $3.98 |
||
|
7
|
7
812-14137-00-00 Clip |
812-14137-00-00 |
from US $4.96 |
||
|
8
|
8
36X-14169-00-00 Cap |
36X-14169-00-00 |
from US $8.08 |
||
|
9
|
9
97601-04312-00 Screw, Pan Head |
97601-04312-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
10
|
10
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
11
|
11
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
12
|
12
1AE-14147-00-00 O-Ring |
1AE-14147-00-00 |
from US $11.05 |
||
|
13
|
13
1UY-14993-00-00 Plunger, Starter |
1UY-14993-00-00 |
from US $62.55 |
||
|
14
|
14
1UY-14197-00-00 Pipe |
1UY-14197-00-00 |
US $12.73 |
||
|
15
|
15
1UY-14147-00-00 O-Ring |
1UY-14147-00-00 |
from US $16.01 |
||
|
16
|
16
1UY-14107-25-00 Needle Valve Set |
1UY-14107-25-00 |
from US $43.47 |
||
|
17
|
17
537-14186-00-00 Pin, Float |
537-14186-00-00 |
from US $2.13 |
||
|
18
|
18
620-14143-29-00
Jet, Main (145)
145 |
620-14143-29-00 |
— | ||
|
19
|
19
137-14153-00-00 Washer,main Jet |
137-14153-00-00 |
from US $2.98 |
||
|
20
|
20
4G0-14142-42-A0 Jet, Pilot ( 42.5)42.5 |
4G0-14142-42-A0 |
from US $13.90 |
||
|
21
|
21
21V-14105-00-00 Pilot Screw Set |
21V-14105-00-00 |
from US $18.23 |
||
|
22
|
22
1YW-14147-00-00 O-Ring |
1YW-14147-00-00 |
from US $8.78 |
||
|
23
|
23
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
24
|
24
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
25
|
25
1UY-1490J-00-00 Needle Set |
1UY-1490J-00-00 |
from US $51.05 |
||
| replacement | |||||
|
25
|
25
1UY-1490J-01-00 Needle Set |
1UY-1490J-01-00 |
from US $49.06 |
||
|
26
|
26
1UY-14198-00-00 Gasket |
1UY-14198-00-00 |
from US $13.88 |
||
|
27
|
27
59V-14962-00-00 Washer |
59V-14962-00-00 |
from US $2.55 |
||
|
28
|
28
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
28
|
28
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
29
|
29
1UY-14103-00-00
Throttle Screw Set
|
1UY-14103-00-00 |
— | ||
|
30
|
30
2L1-14191-00-00 Plug, Drain |
2L1-14191-00-00 |
from US $16.72 |
||
|
31
|
31
1UY-14504-00-00 Rod Set |
1UY-14504-00-00 |
from US $36.61 |
||
|
32
|
32
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
33
|
33
26H-1490H-00-00 Diaphragm Set 5 |
26H-1490H-00-00 |
from US $67.01 |
||
|
34
|
34
214-14147-00-00 O-Ring |
214-14147-00-00 |
from US $10.66 |
||
|
35
|
35
904-45084-E3-00
Hose (L1500)
|
904-45084-E3-00 |
— | ||
| replacement | |||||
|
35
|
35
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.28 |
||
|
36
|
36
24W-14193-00-00 Pipe |
24W-14193-00-00 |
from US $11.58 |
||
|
37
|
37
91A20-07010-00 Hose |
91A20-07010-00 |
from US $3.97 |
||
| replacement | |||||
|
37
|
37
91A21-07020-00 Hose |
91A21-07020-00 |
from US $3.97 |
||
|
38
|
38
1UY-14155-00-00 Guide, Cable |
1UY-14155-00-00 |
from US $9.49 |
||
