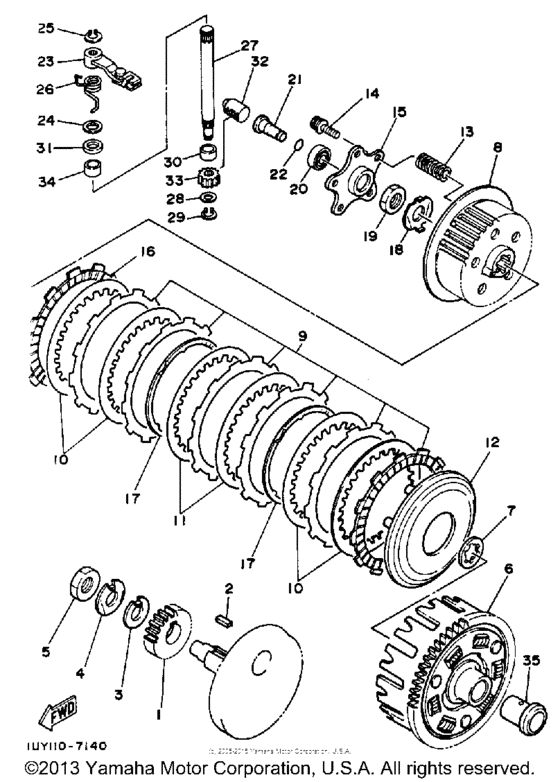

Clutch Diagram Yamaha WARRIOR 350
- Model code
- YFM350XT
- Engine Capacity
- 348
- Year
- 1987
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-16111-10-00 Gear, Primary Drive |
1UY-16111-10-00 |
from US $46.56 |
||
|
2
|
2
90282-07057-00 Key, Straight |
90282-07057-00 |
from US $4.82 |
||
|
3
|
3
90215-16156-00 Washer, Lock |
90215-16156-00 |
from US $4.53 |
||
|
4
|
4
90215-16222-00 Washer, Lock (30X) |
90215-16222-00 |
from US $2.13 |
||
|
5
|
5
90170-16343-00 Nut(24V) |
90170-16343-00 |
from US $6.38 |
||
|
6
|
6
1YW-16150-01-00
Primary Driven Gear Comp.(76T)
|
1YW-16150-01-00 |
— | ||
| replacement | |||||
|
6
|
6
2NL-16150-00-00 Primary Driven Gear Comp |
2NL-16150-00-00 |
from US $215.53 |
||
|
7
|
7
30X-16154-00-00 Plate, Thrust 1 |
30X-16154-00-00 |
from US $8.08 |
||
|
8
|
8
1UY-16371-01-00
Boss, Clutch
|
1UY-16371-01-00 |
— | ||
| replacement | |||||
|
8
|
8
1UY-16371-02-00 Boss, Clutch |
1UY-16371-02-00 |
from US $85.38 |
||
|
9
|
9
5Y1-16331-01-00 Plate, Friction 2 |
5Y1-16331-01-00 |
from US $13.24 |
||
|
10
|
10
4H7-16325-00-00
Plate, Clutch 2 (T=1.6)
T=1.6 |
4H7-16325-00-00 |
— | ||
| replacements | |||||
|
10
|
10
168-16325-00-00 Plate, Clutch 2 (T1.6)T=1.6 |
168-16325-00-00 |
from US $10.89 |
||
|
10
|
10
168-16325-10-00 PLATE CLUTCH 2T=1.6 |
168-16325-10-00 |
from US $10.92 |
||
|
11
|
11
3J2-16324-00-00 Plate, Clutch 1 (T=2.0)T=2.0 |
3J2-16324-00-00 |
from US $11.02 |
||
|
12
|
12
1UY-16351-00-00 Plate, Pressure 1 |
1UY-16351-00-00 |
from US $53.05 |
||
|
13
|
13
90501-231E9-00 Spring, Compression |
90501-231E9-00 |
from US $3.83 |
||
|
14
|
14
90159-06123-00 Screw, With Washer |
90159-06123-00 |
from US $2.13 |
||
|
15
|
15
1UY-16352-00-00 Plate, Pressure 2 |
1UY-16352-00-00 |
from US $4.99 |
||
|
16
|
16
31A-16321-00-00
Plate, Friction
|
31A-16321-00-00 |
— | ||
| replacement | |||||
|
16
|
16
4H7-16321-02-00 Plate, Friction |
4H7-16321-02-00 |
from US $12.58 |
||
|
17
|
17
5Y1-16383-00-00 Spring.,cushion |
5Y1-16383-00-00 |
from US $26.21 |
||
|
18
|
18
90215-16258-00 Washer, Lock |
90215-16258-00 |
from US $1.98 |
||
|
19
|
19
90170-16326-00 Nut |
90170-16326-00 |
from US $3.64 |
||
|
20
|
20
933-06000-04-00 Bearing |
933-06000-04-00 |
from US $11.92 |
||
|
21
|
21
1UY-16358-00-00 Plate, Push |
1UY-16358-00-00 |
from US $9.21 |
||
|
22
|
22
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.84 |
||
|
23
|
23
1UY-16340-00-00 Push Lever Assy |
1UY-16340-00-00 |
US $36.49 |
||
|
24
|
24
902-0112M-34-00 Washer, Plate |
902-0112M-34-00 |
from US $2.69 |
||
|
25
|
25
990-01096-00-00
Circlip (E) (99001-09600-00)
99001-09600-00 |
990-01096-00-00 |
— | ||
| replacement | |||||
|
25
|
25
99080-09600-00 Circlip (E) (99001-09600-00)99001-09600-00 |
99080-09600-00 |
from US $1.34 |
||
|
26
|
26
90508-16713-00 Spring, Torsion |
90508-16713-00 |
from US $4.11 |
||
|
27
|
27
1UY-16382-00-00 Axle, Push Lever |
1UY-16382-00-00 |
from US $34.71 |
||
|
28
|
28
90201-08085-00 Washer, Plate |
90201-08085-00 |
from US $1.34 |
||
|
29
|
29
99080-07600-00 Clip |
99080-07600-00 |
from US $1.66 |
||
|
30
|
30
90383-12013-00 Bush, Formed |
90383-12013-00 |
from US $4.68 |
||
|
31
|
31
931-02122-24-00 Oil Seal |
931-02122-24-00 |
from US $4.30 |
||
|
32
|
32
1UY-16356-00-00 Rod, Push 1 |
1UY-16356-00-00 |
from US $23.04 |
||
|
33
|
33
4H7-16398-00-00
Pinion, Release
|
4H7-16398-00-00 |
— | ||
| replacement | |||||
|
33
|
33
3LD-16398-00-00 Pinion, Release |
3LD-16398-00-00 |
from US $16.86 |
||
|
34
|
34
90386-12093-00 Bush |
90386-12093-00 |
from US $7.79 |
||
|
35
|
35
1UY-16181-00-00 Spacer 1 |
1UY-16181-00-00 |
US $70.74 |
||
