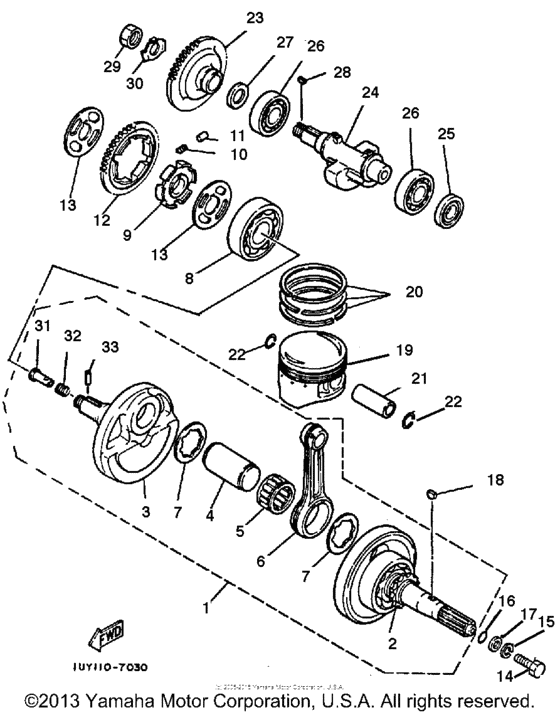

Crankshaft & Piston Diagram Yamaha WARRIOR 350
- Model code
- YFM350XT
- Engine Capacity
- 348
- Year
- 1987
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-11400-00-00 Crankshaft Assy |
1UY-11400-00-00 |
from US $699.60 |
||
|
2
|
2
1UY-W1141-00-00
Crank Sub Assy 1
|
1UY-W1141-00-00 |
— | ||
| replacement | |||||
|
2
|
2
1UY-11401-09-00 Crank Sub Assy 1 |
1UY-11401-09-00 |
from US $193.62 |
||
|
3
|
3
1UY-11422-00-00 Crank 2 |
1UY-11422-00-00 |
from US $257.83 |
||
|
4
|
4
30X-11681-00-00 Pin, Crank 1 |
30X-11681-00-00 |
from US $32.74 |
||
|
5
|
5
93310-633T5-00 Bearing, Cylindrical(2Jn) |
93310-633T5-00 |
from US $29.10 |
||
|
6
|
6
1UY-11651-00-00 Rod, Connecting |
1UY-11651-00-00 |
from US $61.50 |
||
|
7
|
7
90209-33253-00 Washer |
90209-33253-00 |
from US $3.64 |
||
|
8
|
8
933-06306-30-00 Bearing(3Kw) |
933-06306-30-00 |
from US $49.18 |
||
|
9
|
9
30X-11496-00-00 Boss, Buffer |
30X-11496-00-00 |
from US $68.67 |
||
|
10
|
10
90501-22721-00 Spring, Compression |
90501-22721-00 |
from US $1.84 |
||
|
11
|
11
93605-10090-00 Pin, Dowel |
93605-10090-00 |
from US $1.84 |
||
|
12
|
12
3Y1-11531-01-00 Gear, Balance (43T) |
3Y1-11531-01-00 |
from US $61.20 |
||
| replacement | |||||
|
12
|
12
3Y1-11531-02-00 Gear, Balance Wt |
3Y1-11531-02-00 |
from US $61.20 |
||
|
13
|
13
30X-11565-00-00 Washer, Bearing Cover |
30X-11565-00-00 |
from US $9.21 |
||
|
14
|
14
90101-10568-00 Bolt (21V) |
90101-10568-00 |
from US $4.53 |
||
|
15
|
15
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
16
|
16
93210-16290-00 O-Ring |
93210-16290-00 |
from US $1.70 |
||
|
17
|
17
902-01107-F8-00
Washer, Plate
|
902-01107-F8-00 |
— | ||
| replacement | |||||
|
17
|
17
90201-10058-00 Washer, Plate |
90201-10058-00 |
from US $7.08 |
||
|
18
|
18
902-80160-53-00
Key, Woodruff(3Tb)
|
902-80160-53-00 |
— | ||
| replacement | |||||
|
18
|
18
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.35 |
||
|
19
|
19
1UY-11638-01-00 Piston (1.00Mm O/s)1.00MM O/S AP |
1UY-11638-01-00 |
from US $73.92 |
||
|
19
|
19
1UY-11631-01-Y0 Piston (Std) |
1UY-11631-01-Y0 |
from US $75.81 |
||
|
19
|
19
1UY-11636-01-00 Piston (0.50Mm O/s)0.50MM O/S AP |
1UY-11636-01-00 |
from US $86.76 |
||
|
20
|
20
42Y-11610-01-00 Piston Ring Set |
42Y-11610-01-00 |
from US $46.46 |
||
| replacement | |||||
|
20
|
20
4GB-11610-00-00 Piston Ring Set (Std) |
4GB-11610-00-00 |
from US $30.10 |
||
|
20
|
20
42Y-11610-21-00 Piston Ring Set (0.50Mm O/s) (40.50MM O/S 4 AP AP |
42Y-11610-21-00 |
from US $43.24 |
||
| replacement | |||||
|
20
|
20
4GB-11610-20-00 Piston Ring Set (0.50Mm O/s)0.50MM O/S 4 AP AP |
4GB-11610-20-00 |
from US $30.42 |
||
|
21
|
21
55V-11633-00-00 Pin, Piston |
55V-11633-00-00 |
from US $17.20 |
||
|
22
|
22
93450-19095-00 Circlip |
93450-19095-00 |
from US $1.66 |
||
|
23
|
23
1UY-11536-00-00
Gear, Drive
|
1UY-11536-00-00 |
— | ||
| replacement | |||||
|
23
|
23
1UY-11536-01-00 Gear, Drive |
1UY-11536-01-00 |
from US $66.32 |
||
|
24
|
24
1UY-11454-00-00 Weight 1 |
1UY-11454-00-00 |
from US $86.92 |
||
|
25
|
25
93101-25106-00 Oil Seal |
93101-25106-00 |
from US $5.30 |
||
|
26
|
26
933-06205-29-00 Bearing |
933-06205-29-00 |
from US $16.20 |
||
|
27
|
27
90201-207G6-00 Washer, Plate |
90201-207G6-00 |
from US $9.92 |
||
|
28
|
28
90282-05034-00 Key, Straight |
90282-05034-00 |
from US $1.70 |
||
|
29
|
29
90170-16326-00 Nut |
90170-16326-00 |
from US $3.64 |
||
|
30
|
30
90215-16221-00 Washer, Lock |
90215-16221-00 |
from US $3.40 |
||
|
31
|
31
90240-07105-00 Pin, Clevis |
90240-07105-00 |
from US $7.93 |
||
|
32
|
32
90501-07629-00 Spring, Compression |
90501-07629-00 |
from US $1.34 |
||
|
33
|
33
93602-13177-00 Pin, Dowel (5H0) |
93602-13177-00 |
from US $1.45 |
||
