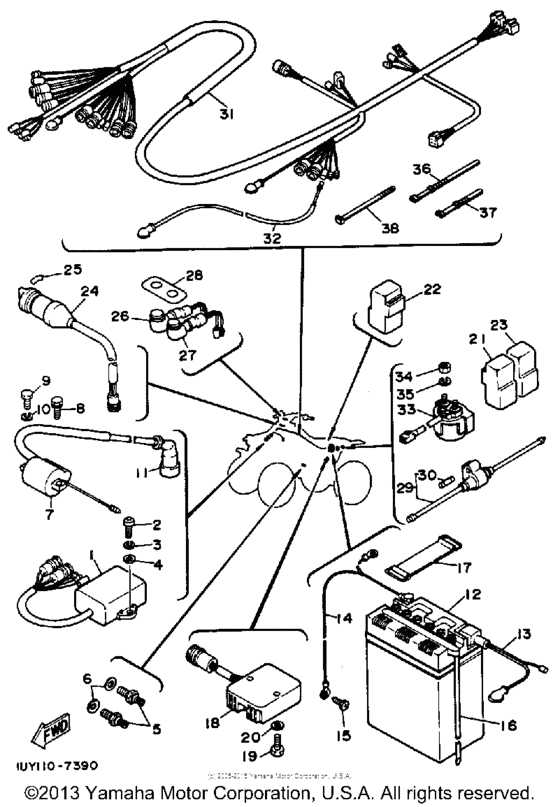

Electrical (1) Diagram Yamaha WARRIOR 350
- Model code
- YFM350XT
- Engine Capacity
- 348
- Year
- 1987
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-85540-20-00
Cdi Unit Assembly
|
1UY-85540-20-00 |
— | ||
|
2
|
2
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
5
|
5
24W-82540-00-00
Neutral Switch Assy
|
24W-82540-00-00 |
— | ||
| replacements | |||||
|
5
|
5
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
5
|
5
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $23.80 |
||
|
6
|
6
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.28 |
||
|
7
|
7
1UY-82310-41-00 Ignition Coil Assembly |
1UY-82310-41-00 |
from US $101.96 |
||
|
8
|
8
90109-06723-00 Bolt |
90109-06723-00 |
from US $2.13 |
||
|
9
|
9
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
9
|
9
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.93 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
11
|
11
1UY-82370-20-00 Plug Cap Assy |
1UY-82370-20-00 |
from US $19.69 |
||
| replacements | |||||
|
11
|
11
5EL-82370-00-00 Plug Cap Assy |
5EL-82370-00-00 |
from US $23.82 |
||
|
11
|
11
3NS-82370-00-00 Plug Cap Assy |
3NS-82370-00-00 |
from US $19.69 |
||
|
12
|
12
BTG-GM12C-Z4-A2
Cb12Ca Gs Battery
GS BATTERY |
BTG-GM12C-Z4-A2 |
— | ||
| replacements | |||||
|
12
|
12
CB1-2CA00-00-00
PACKING
GS BATTERY |
CB1-2CA00-00-00 |
— | ||
|
12
|
12
ACB-12CA0-00-00
Acb12Ca Gs Battery W
GS BATTERY |
ACB-12CA0-00-00 |
— | ||
|
13
|
13
1YW-82115-00-00 Wire, Plus Lead |
1YW-82115-00-00 |
from US $36.06 |
||
|
14
|
14
1YW-82507-00-00
Wire, Lead
|
1YW-82507-00-00 |
— | ||
|
15
|
15
90153-06034-00 Screw, Hexagon |
90153-06034-00 |
from US $1.70 |
||
|
16
|
16
904-45083-36-00
Hose (L1500)
|
904-45083-36-00 |
— | ||
| replacement | |||||
|
16
|
16
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.28 |
||
|
17
|
17
337-82131-00-00 Band, Battery |
337-82131-00-00 |
from US $17.57 |
||
|
18
|
18
59V-81960-A0-00
Rectifier & Regulator Assembly
|
59V-81960-A0-00 |
— | ||
|
19
|
19
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
19
|
19
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
20
|
20
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
20
|
20
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
20
|
20
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
21
|
21
29U-81950-93-00 Relay Assy (Aca12115-1)29U-93 |
29U-81950-93-00 |
from US $34.06 |
||
|
22
|
22
3GD-81950-01-00 Relay Assy (3Gd-01)3GD-01 |
3GD-81950-01-00 |
from US $37.30 |
||
|
23
|
23
29U-81950-93-00 Relay Assy (Aca12115-1)29U-93 |
29U-81950-93-00 |
from US $34.06 |
||
|
24
|
24
1UY-82510-02-00 Main Switch Assembly |
1UY-82510-02-00 |
from US $82.76 |
||
| replacement | |||||
|
24
|
24
1UY-82510-09-00 Main Switch Assy |
1UY-82510-09-00 |
US $99.31 |
||
|
25
|
25
29U-83585-10-00
Label
|
29U-83585-10-00 |
— | ||
|
26
|
26
24W-83530-00-00
Pilot Light Assy
|
24W-83530-00-00 |
— | ||
| replacement | |||||
|
26
|
26
24W-83530-10-00 Pilot Light Assy |
24W-83530-10-00 |
from US $26.07 |
||
|
27
|
27
52G-83530-00-00 Pilot Light Assy |
52G-83530-00-00 |
from US $20.90 |
||
| replacement | |||||
|
27
|
27
52G-83530-10-00 Pilot Light Assy |
52G-83530-10-00 |
from US $25.50 |
||
|
28
|
28
1UY-83585-00-00 Label |
1UY-83585-00-00 |
US $8.21 |
||
|
29
|
29
1UY-82150-00-00 Fuse Holder Assy |
1UY-82150-00-00 |
from US $35.42 |
||
|
30
|
30
1UY-82151-00-00 Fuse (15A)15A |
1UY-82151-00-00 |
from US $3.40 |
||
|
31
|
31
1UY-82590-00-00
Wire Harness Assembly
|
1UY-82590-00-00 |
— | ||
|
32
|
32
2JX-82541-00-00 Wire, Lead |
2JX-82541-00-00 |
US $19.87 |
||
|
33
|
33
4KD-81940-00-00 Starter Relay Assy (Ms5D-611) |
4KD-81940-00-00 |
from US $97.54 |
||
|
34
|
34
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
34
|
34
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
35
|
35
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
36
|
36
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
37
|
37
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
38
|
38
1UY-82591-00-00
Clamp
|
1UY-82591-00-00 |
— | ||
