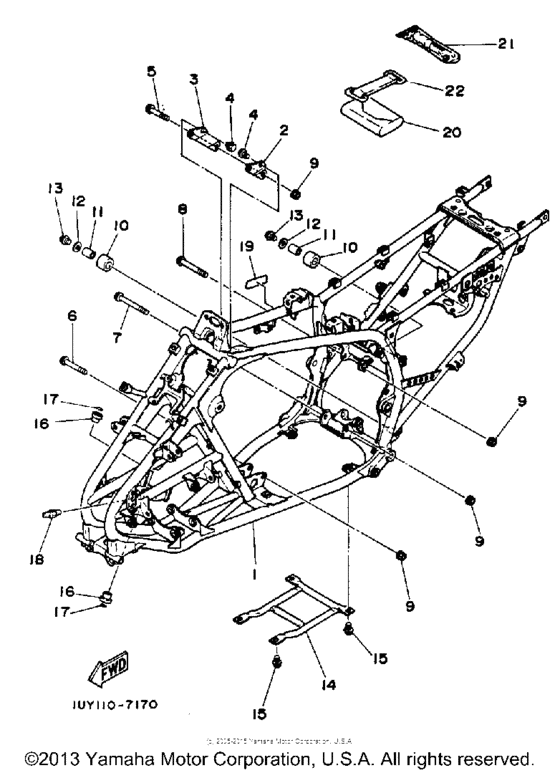

Frame Diagram Yamaha WARRIOR 350
- Model code
- YFM350XT
- Engine Capacity
- 348
- Year
- 1987
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-21110-01-FH
Frame (Red) (1Uy-21110-00-Fh)
1UY-21110-00-FH UR FIRE RED |
1UY-21110-01-FH |
— | ||
|
1
|
1
1UY-21110-01-NJ
Frame (Blue) (1Uy-21110-00-Nj)
1UY-21110-00-NJ UR FAR- AWAY BLUE |
1UY-21110-01-NJ |
— | ||
|
2
|
2
1UY-21315-00-00 Stay, Engine 2 |
1UY-21315-00-00 |
from US $23.51 |
||
|
3
|
3
1UY-21316-00-00 Stay, Engine 3 |
1UY-21316-00-00 |
from US $24.79 |
||
|
4
|
4
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
4
|
4
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
5
|
5
95811-08055-00 Bolt, Flange |
95811-08055-00 |
from US $1.42 |
||
| replacement | |||||
|
5
|
5
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
6
|
6
95811-08070-00 Bolt, Flange |
95811-08070-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
95817-08070-00 Bolt, Flange(Jn5) |
95817-08070-00 |
from US $1.07 |
||
|
7
|
7
95811-08100-00 Bolt, Flange (2K7) |
95811-08100-00 |
from US $4.11 |
||
| replacement | |||||
|
7
|
7
95817-08100-00 Bolt, Flange |
95817-08100-00 |
from US $4.11 |
||
|
8
|
8
901-05084-42-00
Bolt, Flange
|
901-05084-42-00 |
— | ||
|
9
|
9
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
9
|
9
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
10
|
10
30X-22178-00-00 Tensioner |
30X-22178-00-00 |
from US $9.60 |
||
|
11
|
11
4V4-22184-00-00 Bush |
4V4-22184-00-00 |
from US $3.26 |
||
|
12
|
12
90201-08753-00 Washer, Plate |
90201-08753-00 |
from US $1.98 |
||
| replacement | |||||
|
12
|
12
90201-081R9-00 Washer, Plate |
90201-081R9-00 |
from US $1.98 |
||
|
13
|
13
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
14
|
14
1UY-21471-00-00 Protector, Engine |
1UY-21471-00-00 |
US $145.01 |
||
|
15
|
15
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
16
|
16
90381-15040-00 Bush, Solid |
90381-15040-00 |
from US $12.75 |
||
|
17
|
17
93210-15566-00 O-Ring (22U) |
93210-15566-00 |
from US $1.35 |
||
|
18
|
18
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
19
|
19
1UY-26137-00-00 Label |
1UY-26137-00-00 |
from US $2.35 |
||
|
20
|
20
59V-28100-00-00
Tool Kit (24W-28100-00)
24W-28100-00 |
59V-28100-00-00 |
— | ||
|
21
|
21
1NV-2811A-00-00 Gauge, Air |
1NV-2811A-00-00 |
from US $27.34 |
||
| replacement | |||||
|
21
|
21
1NV-2811A-01-00 Gauge, Air |
1NV-2811A-01-00 |
from US $27.34 |
||
|
22
|
22
21V-21376-00-00 Band, Tool |
21V-21376-00-00 |
from US $9.76 |
||
