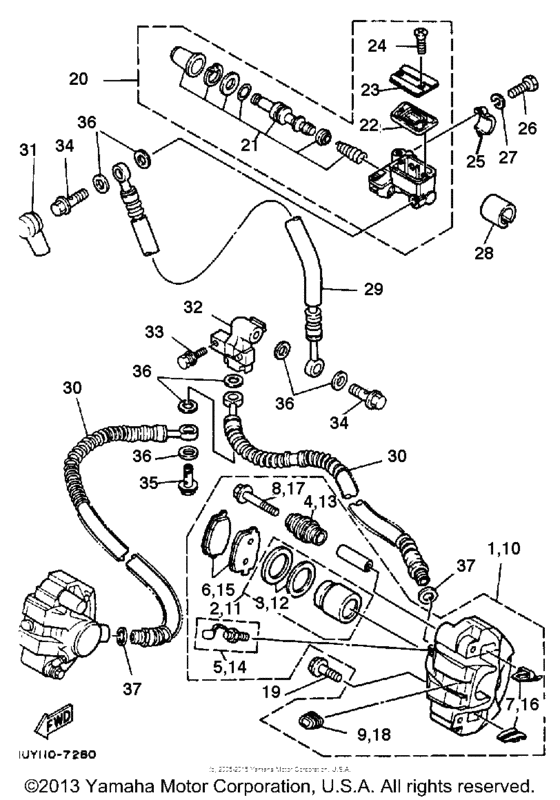

Front brake caliper Diagram Yamaha WARRIOR 350
- Model code
- YFM350XT
- Engine Capacity
- 348
- Year
- 1987
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-2580T-00-00
Caliper Assembly, Lh
LH |
1UY-2580T-00-00 |
— | ||
|
2
|
2
1UY-W0057-00-00 Piston Assembly, Caliper |
1UY-W0057-00-00 |
US $73.67 |
||
|
3
|
3
1UY-W0047-00-00 Caliper Seal Kit |
1UY-W0047-00-00 |
US $34.68 |
||
|
4
|
4
34X-25937-00-00 Boot 2 |
34X-25937-00-00 |
from US $19.41 |
||
|
5
|
5
51L-W0048-00-00
Bleed Screw Kit
|
51L-W0048-00-00 |
— | ||
| replacement | |||||
|
5
|
5
15B-W0048-00-00 Bleed Screw Kit |
15B-W0048-00-00 |
from US $8.08 |
||
|
6
|
6
1UY-W0045-03-00 Brake Pad Kit |
1UY-W0045-03-00 |
from US $48.36 |
||
|
7
|
7
34X-25919-00-00 Support, Pad |
34X-25919-00-00 |
from US $36.20 |
||
|
8
|
8
2GV-25926-00-00 Bolt |
2GV-25926-00-00 |
from US $6.10 |
||
| replacement | |||||
|
8
|
8
5KN-25926-01-00 Bolt |
5KN-25926-01-00 |
from US $8.78 |
||
|
9
|
9
34X-25845-00-00 Cap, Indicator |
34X-25845-00-00 |
from US $7.23 |
||
|
10
|
10
1UY-2580U-00-00 Caliper Assembly, RhRH |
1UY-2580U-00-00 |
US $278.05 |
||
|
11
|
11
1UY-W0057-00-00 Piston Assembly, Caliper |
1UY-W0057-00-00 |
US $73.67 |
||
|
12
|
12
1UY-W0047-00-00 Caliper Seal Kit |
1UY-W0047-00-00 |
US $34.68 |
||
|
13
|
13
34X-25937-00-00 Boot 2 |
34X-25937-00-00 |
from US $19.41 |
||
|
14
|
14
51L-W0048-00-00
Bleed Screw Kit
|
51L-W0048-00-00 |
— | ||
| replacement | |||||
|
14
|
14
15B-W0048-00-00 Bleed Screw Kit |
15B-W0048-00-00 |
from US $8.08 |
||
|
15
|
15
1UY-W0045-03-00 Brake Pad Kit |
1UY-W0045-03-00 |
from US $48.36 |
||
|
16
|
16
34X-25919-00-00 Support, Pad |
34X-25919-00-00 |
from US $36.20 |
||
|
17
|
17
2GV-25926-00-00 Bolt |
2GV-25926-00-00 |
from US $6.10 |
||
| replacement | |||||
|
17
|
17
5KN-25926-01-00 Bolt |
5KN-25926-01-00 |
from US $8.78 |
||
|
18
|
18
34X-25845-00-00 Cap, Indicator |
34X-25845-00-00 |
from US $7.23 |
||
|
19
|
19
901-05084-15-00
Bolt, Washer Based
|
901-05084-15-00 |
— | ||
|
20
|
20
1UY-25850-01-00
Master Cylinder Assembly (1Uy-2
1UY-2 |
1UY-25850-01-00 |
— | ||
|
21
|
21
59X-W0041-00-00 Cyl Kit,master |
59X-W0041-00-00 |
from US $55.26 |
||
| replacement | |||||
|
21
|
21
5VK-25807-00-00 Cylinder Kit, Master |
5VK-25807-00-00 |
from US $60.93 |
||
|
22
|
22
4L0-25854-00-00 Gasket, Diaphragm |
4L0-25854-00-00 |
from US $15.58 |
||
|
23
|
23
4H7-25852-00-00 Cap, Reservoir |
4H7-25852-00-00 |
from US $22.10 |
||
|
24
|
24
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
24
|
24
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.34 |
||
|
25
|
25
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
26
|
26
97016-06025-00 Bolt |
97016-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
26
|
26
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
27
|
27
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
27
|
27
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
28
|
28
1UY-26259-00-00 Collar |
1UY-26259-00-00 |
from US $1.70 |
||
|
29
|
29
1UY-25872-00-00
Hose, Brake 1
|
1UY-25872-00-00 |
— | ||
|
30
|
30
1UY-25873-01-00
Hose,brake 2
|
1UY-25873-01-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99026-37-00
element
|
999-99026-37-00 |
— | ||
|
31
|
31
4L0-25862-00-00 Boot, Master Cylinder |
4L0-25862-00-00 |
from US $10.34 |
||
| replacement | |||||
|
31
|
31
4L0-25862-01-00 Boot, Master Cylinder |
4L0-25862-01-00 |
from US $10.34 |
||
|
32
|
32
1J7-25885-01-00 Joint |
1J7-25885-01-00 |
US $70.45 |
||
|
33
|
33
901-19061-24-00 Bolt, W/washer |
901-19061-24-00 |
US $0.65 |
||
|
34
|
34
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
34
|
34
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
35
|
35
90401-10044-00 Bolt, Union |
90401-10044-00 |
from US $9.49 |
||
| replacement | |||||
|
35
|
35
90401-10038-00 Bolt, Union |
90401-10038-00 |
from US $9.49 |
||
|
36
|
36
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.28 |
||
| replacement | |||||
|
36
|
36
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.28 |
||
|
37
|
37
90430-10200-00 Gasket |
90430-10200-00 |
from US $2.13 |
||
