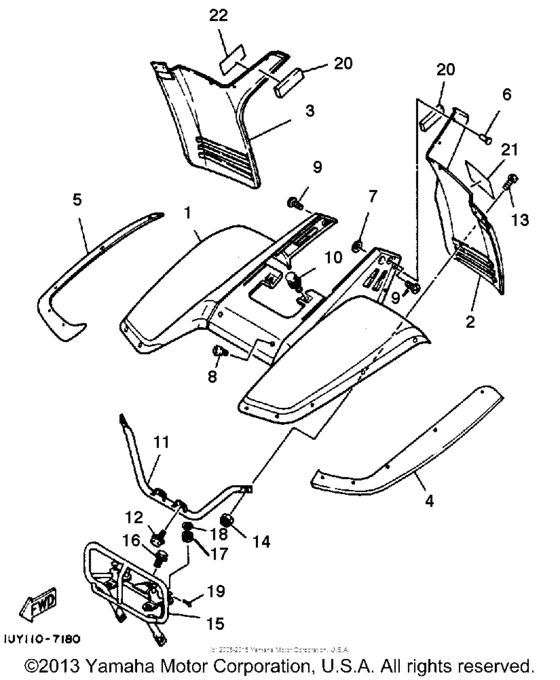

Front fender Diagram Yamaha WARRIOR 350
- Model code
- YFM350XT
- Engine Capacity
- 348
- Year
- 1987
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-21511-00-00 Fender, Front WhiteUR CLEAN WHITE |
1UY-21511-00-00 |
US $412.18 |
||
| replacements | |||||
|
1
|
1
3GD-W215D-52-00 Front FenderUR CLEAN WHITE |
3GD-W215D-52-00 |
US $410.89 |
||
|
1
|
1
999-99999-99-00
Not Available
UR CLEAN WHITE |
999-99999-99-00 |
— | ||
|
1
|
1
1UY-21511-10-00
Fender, Front (Red)
UR CHAPPY RED |
1UY-21511-10-00 |
— | ||
| replacement | |||||
|
1
|
1
1UY-W215D-12-00
Front Fender Comp
UR CHAPPY RED |
1UY-W215D-12-00 |
— | ||
|
2
|
2
1UY-21521-00-00 Flap Assy1 |
1UY-21521-00-00 |
US $107.41 |
||
| replacement | |||||
|
2
|
2
3GD-W2153-11-00 Flap Assy(Left) |
3GD-W2153-11-00 |
US $104.56 |
||
|
3
|
3
1UY-21561-00-00
Flap 2
|
1UY-21561-00-00 |
— | ||
|
4
|
4
1UY-21551-00-00
Fender, Over
|
1UY-21551-00-00 |
— | ||
|
5
|
5
1UY-21555-00-00
Fender, Over 2
|
1UY-21555-00-00 |
— | ||
|
6
|
6
90267-48014-00 Rivet, Blind4.8X15.1 BLACK |
90267-48014-00 |
from US $1.70 |
||
|
7
|
7
902-01043-25-00
Washer, Plate
|
902-01043-25-00 |
— | ||
| replacements | |||||
|
7
|
7
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
7
|
7
902-01044-R6-00
Washer, Plate (90201-04325-00 )
|
902-01044-R6-00 |
— | ||
|
8
|
8
90149-06306-00 Screw |
90149-06306-00 |
from US $2 |
||
|
9
|
9
90154-05041-00 Screw, Binding |
90154-05041-00 |
from US $1.66 |
||
|
10
|
10
901-19060-43-00
Bolt, With Washer
|
901-19060-43-00 |
— | ||
| replacement | |||||
|
10
|
10
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.35 |
||
|
11
|
11
1UY-21513-00-00 Stay, Fender 1 |
1UY-21513-00-00 |
US $95.83 |
||
|
12
|
12
95811-06010-00 Bolt, Flange |
95811-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
12
|
12
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
12
|
12
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
13
|
13
90149-06184-00 Screw, Binding |
90149-06184-00 |
from US $1.84 |
||
| replacement | |||||
|
13
|
13
90149-06306-00 Screw |
90149-06306-00 |
from US $2 |
||
|
14
|
14
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
15
|
15
1UY-23174-10-00
Stay, Headlight (1Uy-23174-00)
1UY-23174-00 |
1UY-23174-10-00 |
— | ||
|
16
|
16
95811-06010-00 Bolt, Flange |
95811-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
16
|
16
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
16
|
16
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
17
|
17
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.66 |
||
|
18
|
18
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
19
|
19
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
20
|
20
1UY-21747-00-00 Damper 2 |
1UY-21747-00-00 |
from US $5.88 |
||
| replacement | |||||
|
20
|
20
3RW-21639-00-00 Damper 2 |
3RW-21639-00-00 |
from US $5.88 |
||
|
21
|
21
1UY-21659-00-00
Label, Safety
|
1UY-21659-00-00 |
— | ||
|
22
|
22
1UY-21696-00-00
Label, Caution
|
1UY-21696-00-00 |
— | ||
