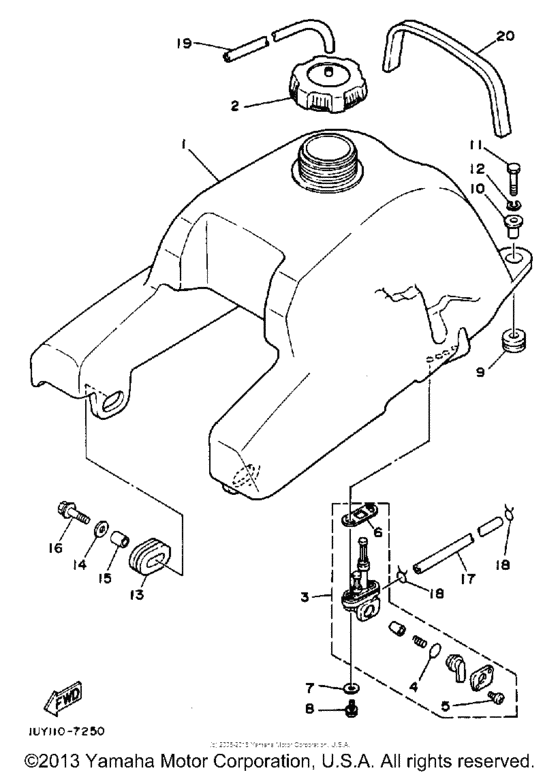

Fuel tank Diagram Yamaha WARRIOR 350
- Model code
- YFM350XT
- Engine Capacity
- 348
- Year
- 1987
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-24110-01-00
Fuel Tank Comp
|
1UY-24110-01-00 |
— | ||
|
2
|
2
1UY-24610-00-00
Cap Assy
|
1UY-24610-00-00 |
— | ||
| replacements | |||||
|
2
|
2
5KM-24610-00-00 Cap Assy |
5KM-24610-00-00 |
from US $41.17 |
||
|
2
|
2
5MV-24610-00-00 Cap Assy |
5MV-24610-00-00 |
from US $58.44 |
||
|
3
|
3
21V-24500-10-00
Fuel Cock Assy 1
|
21V-24500-10-00 |
— | ||
| replacements | |||||
|
3
|
3
21V-24500-20-00 Fuel Cock Assy 1 |
21V-24500-20-00 |
from US $52.78 |
||
|
3
|
3
3JN-24500-10-00 Fuel Cock Assy 1 |
3JN-24500-10-00 |
from US $52.04 |
||
|
4
|
4
4X8-24534-00-00 Seal, Cock |
4X8-24534-00-00 |
from US $7.37 |
||
|
5
|
5
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
6
|
6
4X8-24512-00-00 O-Ring |
4X8-24512-00-00 |
from US $1.84 |
||
|
7
|
7
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
8
|
8
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
9
|
9
90480-18290-00 Grommet |
90480-18290-00 |
from US $1.70 |
||
|
10
|
10
90387-066H4-00 Collar |
90387-066H4-00 |
from US $5.81 |
||
|
11
|
11
970-21060-30-00
Bolt
|
970-21060-30-00 |
— | ||
| replacements | |||||
|
11
|
11
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
11
|
11
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
13
|
13
90480-01400-00 Grommet |
90480-01400-00 |
from US $4.11 |
||
|
14
|
14
90201-06072-00 Washer, Plate |
90201-06072-00 |
from US $1.28 |
||
|
15
|
15
903-87075-98-00 Collar (1T2) |
903-87075-98-00 |
from US $1.70 |
||
|
16
|
16
90119-06073-00 Bolt, With Washer |
90119-06073-00 |
from US $1.84 |
||
|
17
|
17
90445-110F2-00 Hose (L400) |
90445-110F2-00 |
from US $15.44 |
||
| replacement | |||||
|
17
|
17
90445-116K9-00 Hose (L400)Hose (l400) |
90445-116K9-00 |
from US $15.44 |
||
|
18
|
18
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
18
|
18
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
18
|
18
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
19
|
19
90445-09111-00 Hose (L675) |
90445-09111-00 |
from US $19.84 |
||
| replacement | |||||
|
19
|
19
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
20
|
20
1UY-2414H-00-00 Damper, Plate 1 |
1UY-2414H-00-00 |
from US $16.16 |
||
