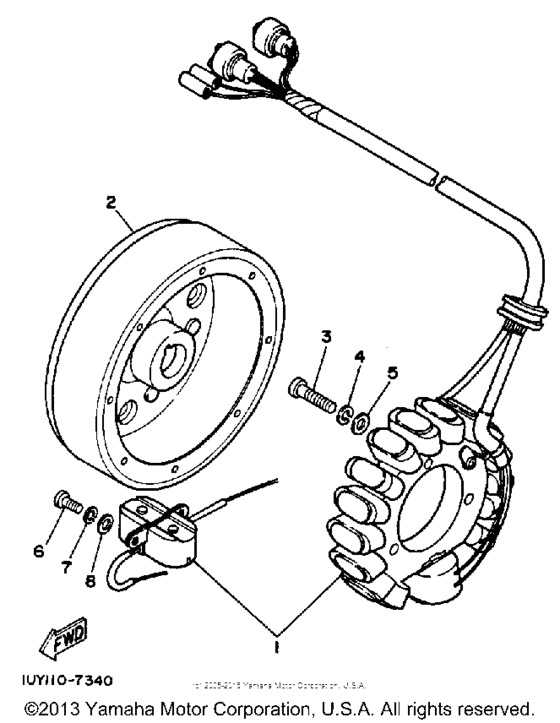

Generator Diagram Yamaha WARRIOR 350
- Model code
- YFM350XT
- Engine Capacity
- 348
- Year
- 1987
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-85510-20-00 Stator Assembly |
1UY-85510-20-00 |
US $790.18 |
||
| replacement | |||||
|
1
|
1
2XK-85510-20-00 Stator Assembly |
2XK-85510-20-00 |
US $735.97 |
||
|
2
|
2
1UY-85550-21-00
Rotor Assembly
|
1UY-85550-21-00 |
— | ||
|
3
|
3
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
3
|
3
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
5
|
5
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
6
|
6
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
|
7
|
7
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
8
|
8
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
8
|
8
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
8
|
8
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
