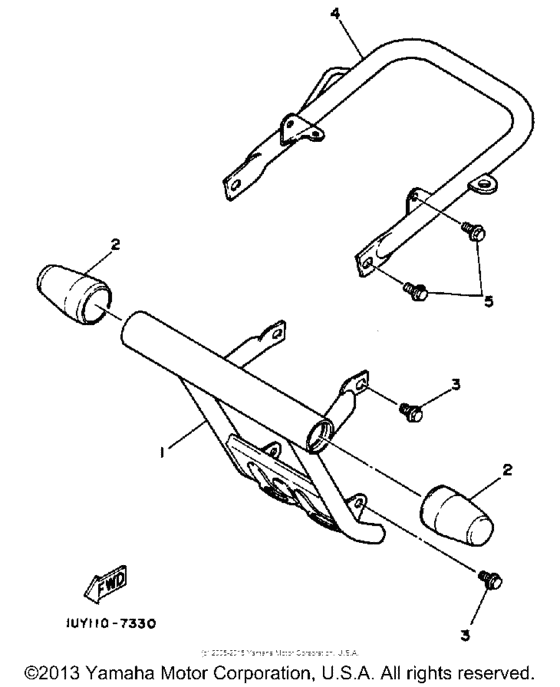

Guard Diagram Yamaha WARRIOR 350
- Model code
- YFM350XT
- Engine Capacity
- 348
- Year
- 1987
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-28411-00-FH
Bumper, Front
UR FIRE RED |
1UY-28411-00-FH |
— | ||
|
1
|
1
1UY-28411-00-NJ
Bumper, Front
UR FAR- AWAY BLUE |
1UY-28411-00-NJ |
— | ||
|
2
|
2
1UY-28415-00-00 Damper 1 |
1UY-28415-00-00 |
from US $8.28 |
||
|
3
|
3
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
3
|
3
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
3
|
3
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
4
|
4
3GD-2845R-10-00
Bar, Carry Rear
|
3GD-2845R-10-00 |
— | ||
|
5
|
5
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
5
|
5
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
5
|
5
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
