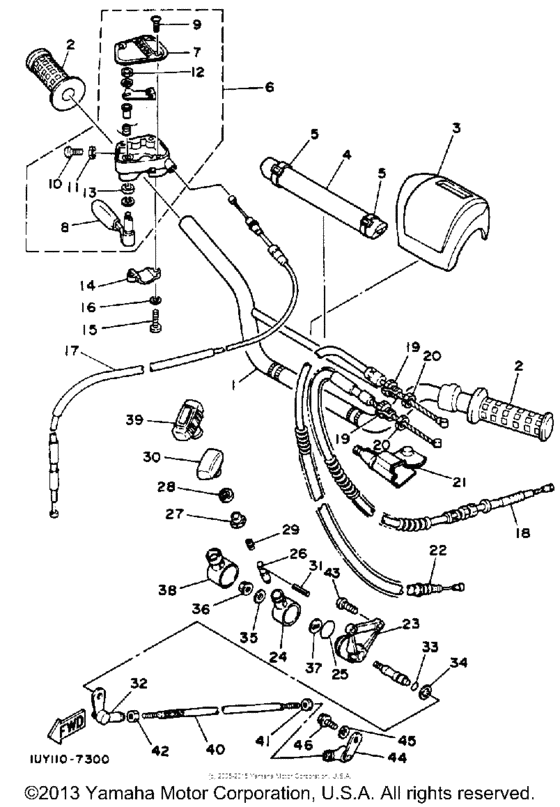

Handlebar cable Diagram Yamaha WARRIOR 350
- Model code
- YFM350XT
- Engine Capacity
- 348
- Year
- 1987
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-26111-00-00 Handlebar |
1UY-26111-00-00 |
US $71.80 |
||
| replacement | |||||
|
1
|
1
1UY-26111-01-00 Handlebar |
1UY-26111-01-00 |
US $71.80 |
||
|
2
|
2
3GB-26241-00-00 Grip |
3GB-26241-00-00 |
from US $14.31 |
||
|
3
|
3
1UY-26124-00-00 Protector, Hdlbr |
1UY-26124-00-00 |
US $113.11 |
||
|
4
|
4
1UY-2622K-00-00
Protector 1
|
1UY-2622K-00-00 |
— | ||
|
5
|
5
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
6
|
6
1NV-26250-01-00 Throttle Lever Assy |
1NV-26250-01-00 |
from US $145.07 |
||
|
7
|
7
1NV-2628F-00-00 Cap, Gear |
1NV-2628F-00-00 |
US $38.48 |
||
|
8
|
8
1NV-2625G-00-00
Lever, Throttle
|
1NV-2625G-00-00 |
— | ||
|
9
|
9
98516-05012-00 Screw, Pan Head |
98516-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
9
|
9
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
9
|
9
976-06051-12-00
Screw, Pan Head With Washer
|
976-06051-12-00 |
— | ||
|
10
|
10
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
10
|
10
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
11
|
11
95606-05100-00 Nut, U |
95606-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
11
|
11
95617-05100-00 Nut, U |
95617-05100-00 |
from US $1.98 |
||
|
12
|
12
953-16057-00-00 Nut(2Nl) |
953-16057-00-00 |
from US $2.83 |
||
| replacement | |||||
|
12
|
12
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.42 |
||
|
13
|
13
93104-09025-00 Oil Seal |
93104-09025-00 |
from US $3.68 |
||
|
14
|
14
4V4-82913-00-00 Holder, Lever Lower 1 |
4V4-82913-00-00 |
from US $17 |
||
|
15
|
15
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
15
|
15
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
16
|
16
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
17
|
17
1UY-26311-00-00
Cable, Throttle 1
|
1UY-26311-00-00 |
— | ||
|
18
|
18
1UY-26335-00-00 Cable, clutch |
1UY-26335-00-00 |
from US $34.14 |
||
|
19
|
19
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
| replacement | |||||
|
19
|
19
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
20
|
20
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
20
|
20
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
21
|
21
1UY-2637A-00-00 Cover, Handle Lever 2 |
1UY-2637A-00-00 |
from US $18.99 |
||
| replacement | |||||
|
21
|
21
1UY-2637A-01-00 Cover, Handle Lever 2 |
1UY-2637A-01-00 |
from US $18.99 |
||
|
22
|
22
1UY-26341-01-00 Wire, Brake 1 |
1UY-26341-01-00 |
from US $36.70 |
||
| replacement | |||||
|
22
|
22
1UY-26341-10-00 Wire, Brake 1 |
1UY-26341-10-00 |
from US $26.12 |
||
|
23
|
23
1UY-26151-01-00
Body,reverse Lever
|
1UY-26151-01-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99028-84-00
element
|
999-99028-84-00 |
— | ||
|
24
|
24
1UY-26152-00-00 Lever, Reverse |
1UY-26152-00-00 |
from US $33.78 |
||
|
25
|
25
93210-29196-00 O-Ring (371) |
93210-29196-00 |
from US $1.56 |
||
|
26
|
26
1UY-26154-00-00
Stopper, Lever
|
1UY-26154-00-00 |
— | ||
|
27
|
27
1UY-26161-00-00 Cover, Shift Spring |
1UY-26161-00-00 |
US $33.37 |
||
|
28
|
28
93109-08050-00 Oil Seal(1Uy) |
93109-08050-00 |
from US $7.93 |
||
| replacement | |||||
|
28
|
28
93109-08803-00 Oil Seal |
93109-08803-00 |
from US $7.93 |
||
|
29
|
29
90501-102E5-00 Spring, Compression |
90501-102E5-00 |
from US $2.55 |
||
|
30
|
30
1UY-26157-00-00 Lever, Lock |
1UY-26157-00-00 |
from US $3.26 |
||
|
31
|
31
91609-40016-00 Pin, Spring |
91609-40016-00 |
from US $1.84 |
||
| replacement | |||||
|
31
|
31
91690-40016-00 Pin, Spring |
91690-40016-00 |
from US $1.84 |
||
|
32
|
32
2XK-26162-10-00 Shaft, Link |
2XK-26162-10-00 |
US $52.63 |
||
| replacement | |||||
|
32
|
32
5YT-26162-00-00 Shaft, Link |
5YT-26162-00-00 |
US $52.63 |
||
|
33
|
33
93210-10096-00 O-Ring |
93210-10096-00 |
from US $1.70 |
||
|
34
|
34
90202-14037-00 Washer, Plate |
90202-14037-00 |
from US $1.66 |
||
|
35
|
35
90201-064J1-00 Washer, Plate |
90201-064J1-00 |
from US $1.98 |
||
|
36
|
36
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
36
|
36
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
37
|
37
1UY-26158-00-00 Plate, Side 1 |
1UY-26158-00-00 |
from US $2.05 |
||
|
38
|
38
1UY-26372-00-00 Cover, Handle Lever 1 |
1UY-26372-00-00 |
from US $8.08 |
||
|
39
|
39
1UY-26153-00-00 Grip, Lever |
1UY-26153-00-00 |
from US $5.38 |
||
|
40
|
40
1UY-26166-00-00
Rod, Joint (3Gd-26166-00-00)
3GD-26166-00-00 |
1UY-26166-00-00 |
— | ||
|
41
|
41
95316-06700-00 Nut |
95316-06700-00 |
from US $1.21 |
||
| replacement | |||||
|
41
|
41
95317-06700-00 Nut(Jn5) |
95317-06700-00 |
from US $1.21 |
||
|
42
|
42
901-70062-28-00 Nut (Counter Clockwise) |
901-70062-28-00 |
from US $1.70 |
||
|
43
|
43
92016-08020-00 Bolt, Button Head |
92016-08020-00 |
from US $1.07 |
||
| replacement | |||||
|
43
|
43
92017-08020-00 Bolt, Button |
92017-08020-00 |
from US $1.07 |
||
|
44
|
44
1UY-26165-00-00
Lever 2
|
1UY-26165-00-00 |
— | ||
|
45
|
45
90201-064J1-00 Washer, Plate |
90201-064J1-00 |
from US $1.98 |
||
|
46
|
46
95816-06016-00 Bolt, Flange(52G) |
95816-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
46
|
46
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
